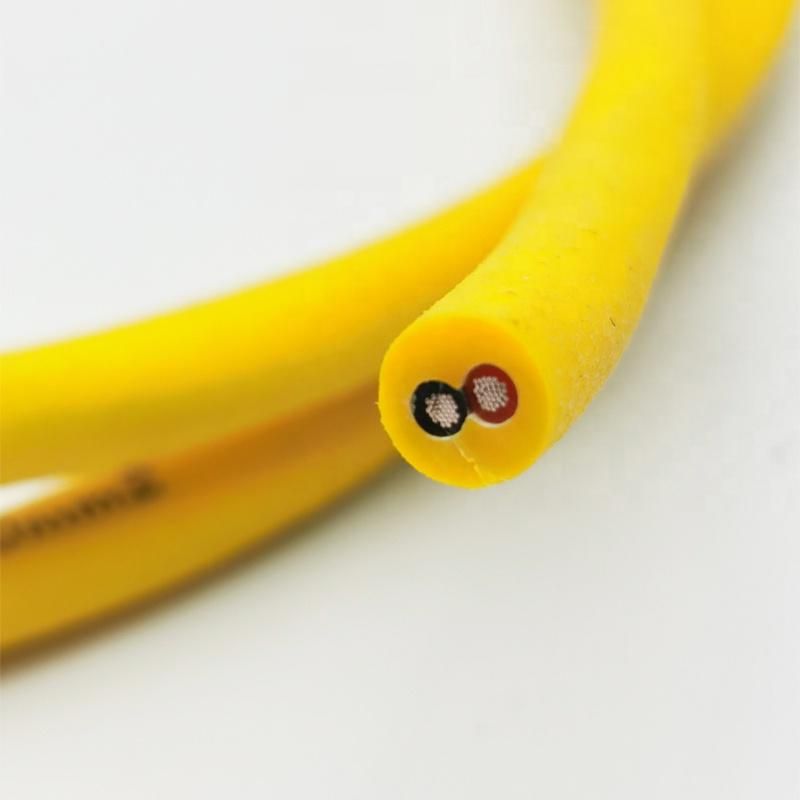

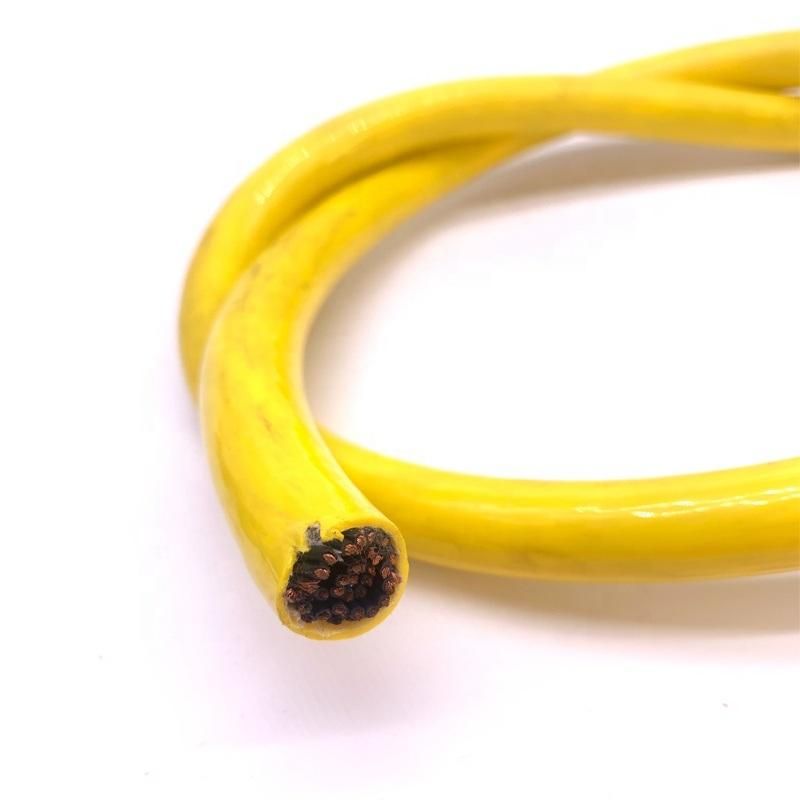

Jb-750 Yellow Helukabel Alternative Flexible Cable for Warning Indication

Shanghai Aein Wire & Cable Co., Ltd.

Type：Insulated
Conductor Type：Stranded
Conductor Material：Copper
Sheath Material：PVC
Insulation Material：PVC
Material Shape：Round Wire

Base Info

Model NO.：JB-750 yellow
Range of Application：Cold-Resistant
Certification：ISO9001, CE, UL, RoHS
Transport Package：Optional
Specification：Multicore
Trademark：AEIN
Origin：Shanghai
HS Code：8544492100

Description

ItemFlexible Cable for Warning IndicationConductorBare copper, fine wire conductors, to DIN VDE 0295 cl.5, BS 6360 cl.5
and IEC 60228 cl.5InsulationSpecial PVC compound type TI2 to DIN VDE 0207-363-3 / DIN EN 50363-3ConstructionConstruction with Cu-screening, tinned, approx. 85%Outer SheathSpecial PVC compound type TM5 to DIN VDE 0207-363-4-1/DIN EN 50363-4-1 acc. to UL-Std.1581Nominal VoltageVDE U0/U 300/500 V
UL/CSA 1000 VTemperature RangeFlexing -5°C to +80°C
Fixed installation -40°C to +80°CColorOptionalCertificationCEApplicationThese cables are used for flexible use for medium mechanical stresses with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air, as connection cable with yellow outer sheath as a special warning indication. Recommendation in accordance to EN 60204 part 1 and DIN VDE 0113 part 1.
