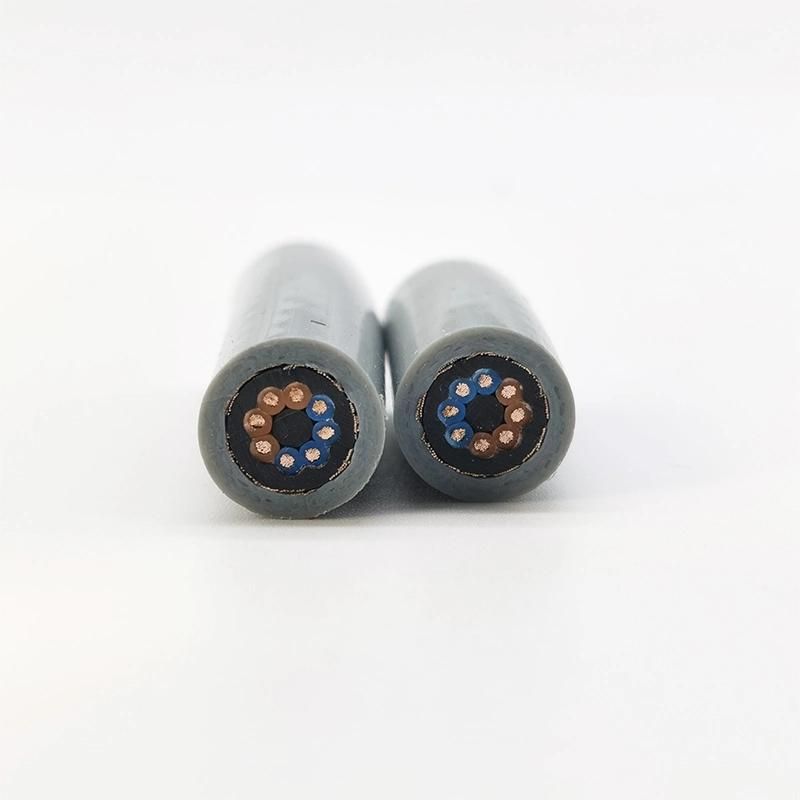

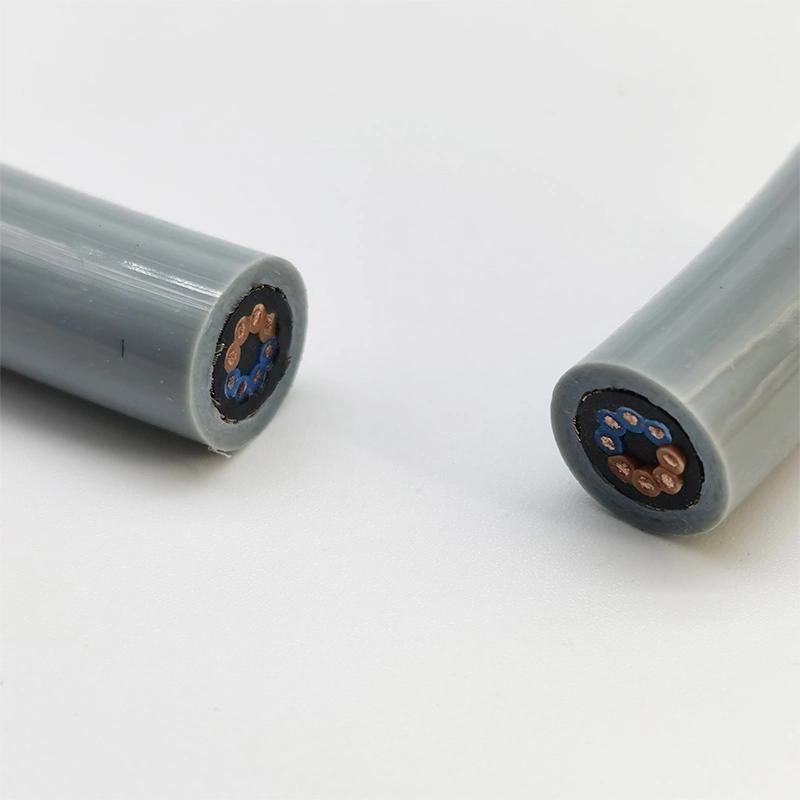

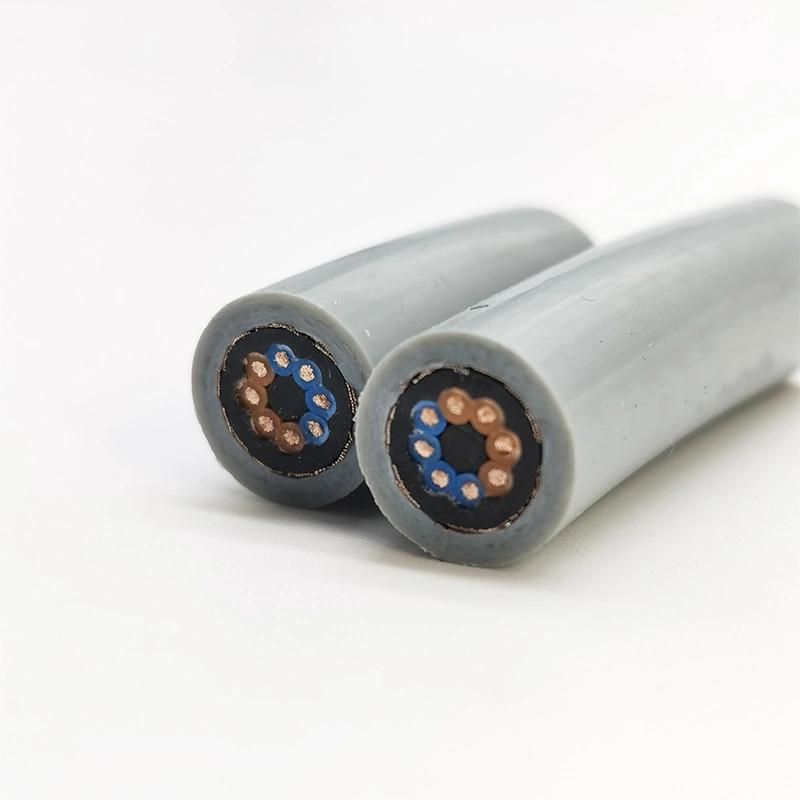

| Item | High flexible PVC control cable |
| Conductor | Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 /
IEC 60228 Class 5 |
| Insulation | PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2) |
| Screening | Braided screen of tinned copper wires, approx. coverage 85% |
| Inner sheath | PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2) |
| Outer Sheath | Oil-resistant special PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM5) |
| Nominal Voltage | AC Uo/U 300/500 V |
| Temperature Range | Flexible -5°C to +70°C
Fixed -40°C to +70°C |
| Color | Optional |
| Certification | CE |
| Application | Used for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use as a connection cable in machine and machine tool cons-truction, assembly lines, conveyers and production lines. Even various chemical compounds cannot harm the cable. As a cable suitable for damp rooms, it is also preferred for the operation of machines in breweries, bottling plants and car washes. For interference-free data signal transmission in measurement and control technology in case electromagnetic screening is required. The cables may engage in flexible movement after installation, provided the cables are not mechanically overloaded during the movements. These shielded cables are not designed for permanent bending stresses. |
