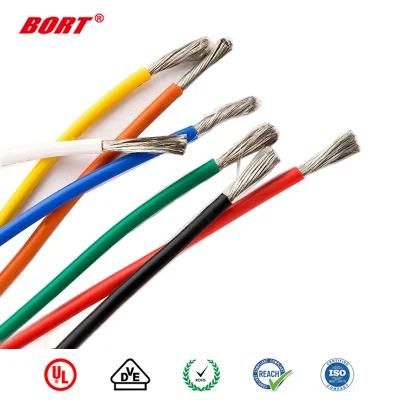

High Temperature Wire FEP Oil and Temperature Resistant Audio Cable
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Internal Wiring
- Conductor Material：Copper
- Sheath Material：Teflon
- Insulation Material：Teflon
Base Info
- Model NO.：FEP
- Material Shape：Round Wire
- Range of Application：Internal Wiring
- Certification：ISO9001, UL, RoHS, VDE
- Brand：Bort
- Sample：Conventional Sample Free
- Producing Experience：10 Years
- No. of Cores：One Core or Multi-Cores
- Colors：Could Be Customized Color
- Delivery Time：in 7-10days
- Packing：100m,Roll, 305m,Roll, Wrap Plastic Film Packaging
- Company Type：Manufacturer
- Factory Directly：Big Discount with Large Order
- Service：OEM, ODM
- Conductor：Stranded, Tinned or Bare Copper Conductor
- Transport Package：Carton,Pallet
- Specification：Customize
- Trademark：BORT
- Origin：China
- HS Code：8544492900
- Production Capacity：300000km,Year
Description
Overall Diameter
(mm)Nom. Min. Nom. Tol. 10 37/0.42 3.54 2.94 0.50 0.45 3.94 ±0.15 12 37/0.374 5.64 2.62 0.50 0.45 3.62 ±0.15 14 19/0.361 8.96 1.85 0.50 0.45 2.90 ±0.10 16 19/0.287 14.60 1.50 0.50 0.45 2.50 ±0.10 18 19/0.235 23.20 1.18 0.50 0.45 2.20 ±0.10 20 19/0.19 36.70 0.95 0.50 0.45 1.95 ±0.10 22 19/0.15 59.40 0.76 0.50 0.45 1.75 ±0.10 24 7/0.20 94.20 0.61 0.50 0.45 1.60 ±0.10 26 7/0.16 150.00 0.48 0.50 0.45 1.50 ±0.10 28 1/0.32 227.00 0.320 0.50 0.45 1.32 ±0.10 30 1/0.254 361.00 0.254 0.50 0.45 1.26 ±0.10
(mm)
