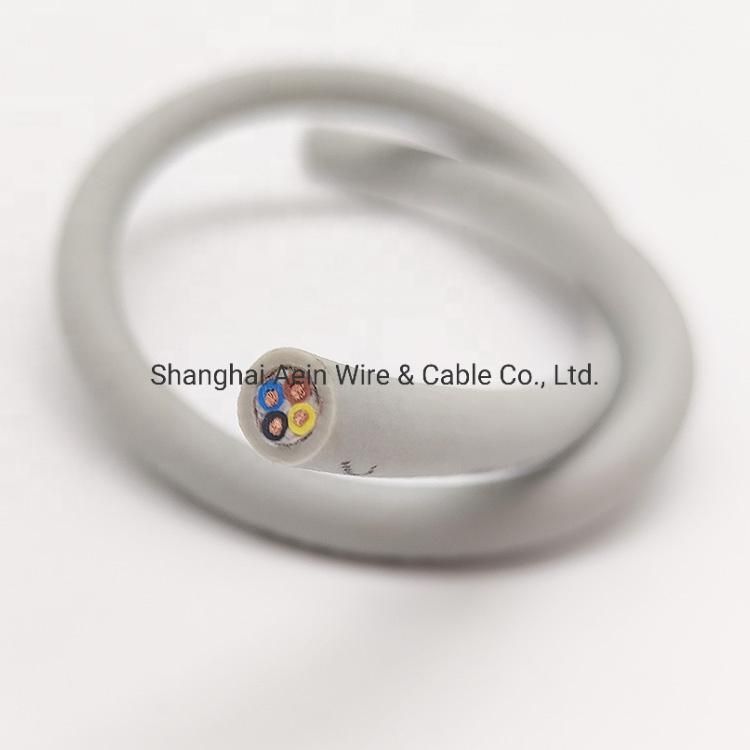

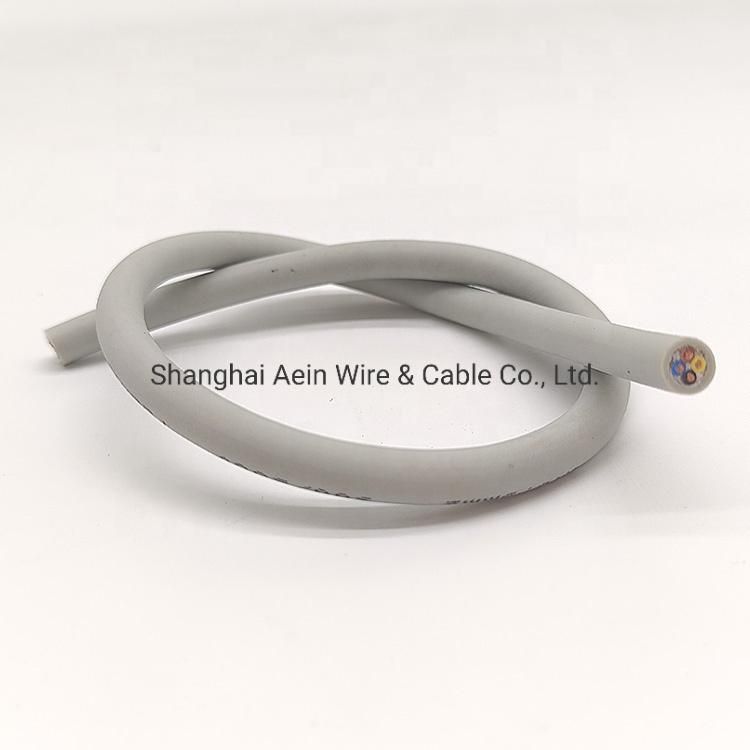

Fmgcg Marine Cable 4X0.5mmq Epr Insulaed CE Certified

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Telecomunication
  • Conductor Material：Copper
  • Sheath Material：Rubber
  • Insulation Material：Epr

Base Info

  • Model NO.：FMGCG Cable
  • Material Shape：Round Wire
  • Range of Application：Telecomunication
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multiple core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemFMGCG Cable ConductorClass 5 flexible copperInsulationEPRScreenPlain copper wire braidOuter SheathRubberNominal VoltageU0/U: 150/250VTest voltage2000 VTemperature RangeMax Conductor temperature in service:85ºC
Short-circuit max.conductor temperature:250ºC
Minimum installation temperature:-10ºC
Minimum operating temperature:-35ºCColorOptionalCertificationCEApplication1.For fixed installations in communication,radio,control,data processing facilities on ship and offshore
2.The ship cable meet the flame test requirements for bunched.
