FTP Cat5e RJ45 Wholesale Factory in Bulk

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,PE,LSZH
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：FTP CAT5E
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CPR,ETL,SGS
  • Model：FTP CTA5e
  • Brand：Riusn or OEM
  • Color：as Request
  • Insulation：HDPE
  • Shield：Polyester Tape,Al Foil
  • UV, Jelly, Fr：Available
  • Jacket：6.2mm PVC,PE,LSZH
  • Drain：Tc
  • Transport Package：305m,Pull Box, 2boxes,CTN
  • Specification：CPR,ETL,CE,SGS,RoHS,ISO9001
  • Trademark：Risun or OEM
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Mont

Description

ElongationMin. 300%Temperature Range-20 up to +75° CTensile StrengthMin 1.68kg/mm²



Electrical Properties:



Conductor ResistanceMax. 9.38 ohm/100mResistance UnbalanceMax. 2%Insulation Resistance150 ohm/KMMutual CapacitanceMax. 5600pF/100mCapacitance UnbalanceMax. 330pF/100mImpedance100+/-15 ohmSpark Test2000VVelocity of Propagation67%



Packing:

24AWG 8 Core 4 Pairs PE Jacket FTP Cat5e Outdoor Network LAN Cable
24AWG 8 Core 4 Pairs PE Jacket FTP Cat5e Outdoor Network LAN Cable

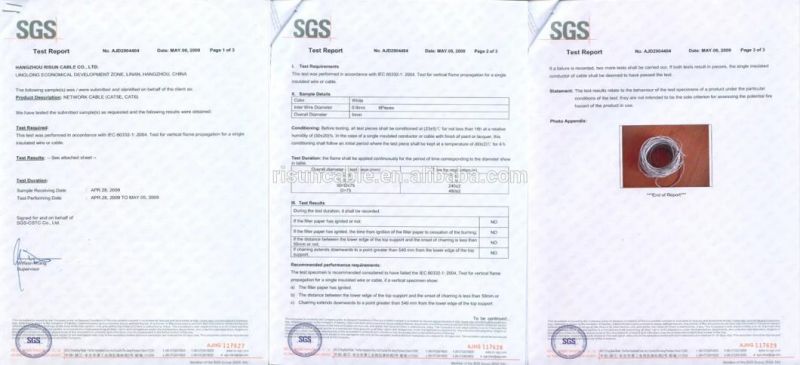

Certificate:



24AWG 8 Core 4 Pairs PE Jacket FTP Cat5e Outdoor Network LAN Cable24AWG 8 Core 4 Pairs PE Jacket FTP Cat5e Outdoor Network LAN Cable24AWG 8 Core 4 Pairs PE Jacket FTP Cat5e Outdoor Network LAN Cable



24AWG 8 Core 4 Pairs PE Jacket FTP Cat5e Outdoor Network LAN Cable

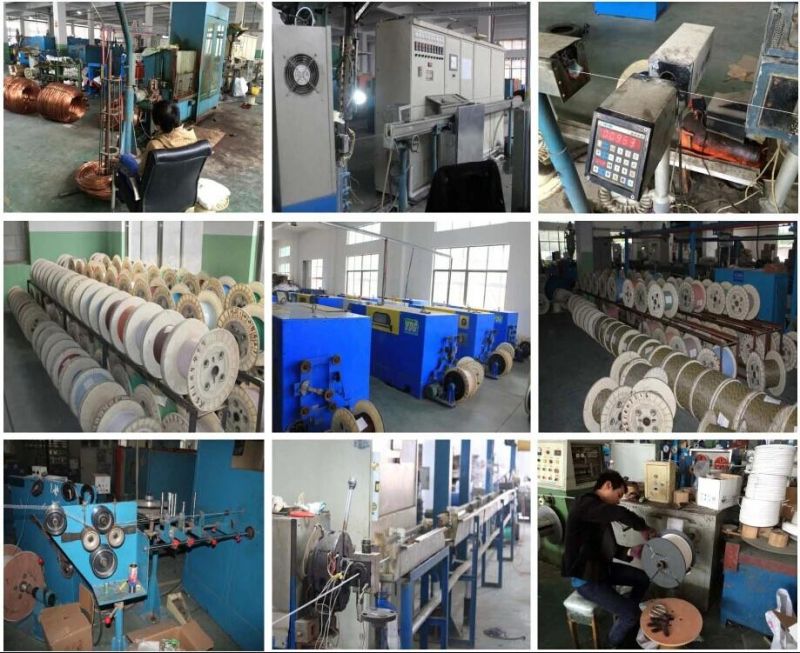

Production line:



305m FTP Cat5e Network Cable with High Performance

RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.


                                                        WELCOME TO RISUN!!!



Our Tenet: If we can not be the best, we be the most suitable.
