• Model NO.：N2XCH
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, SGS
• Model：N2xh
• Brand：Hongda
• Nominal Voltage Uo/U：600 , 1000 Volt
• Test Voltage：4000 [V]AC
• Temperature Range：-5°c Till +90°c
• Operating Temperature：250c
• Bending Radius：15-12 Diameter
• Transport Package：Steel Wooden Drum
• Specification：6mm2 to 300mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：500km,Month

 N2XHConductorUp to 25mm2: Solid copper (Class 1)
Above 25mm2: Stranded copper (Class 2)InsulationCross-linked Polyethylene (XLPE) Type 2XI1OutersheathLow Smoke Zero Halogen (LSZH) Type HM4 - flame retardant non-corrosive compound (FRNC)

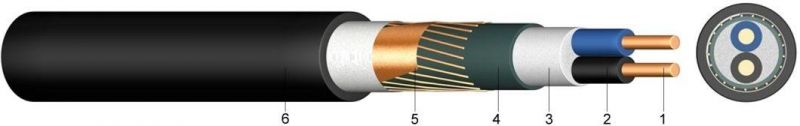

N2XCH CABLE CONSTRUCTION: N2XCHConductorUp to 25mm2: Solid copper (Class 1)
Above 25mm2: Stranded copper (Class 2)InsulationCross-linked Polyethylene (XLPE) Type 2XI1Concentric conductorCopper wires with counter helix of copper tapeOutersheathLow Smoke Zero Halogen (LSZH) Type HM4 - flame retardant non-corrosive compound (FRNC)
Technical data:Bending radiussingle-core stylex diameter15multi-core stylex diameter12Flammabilitystandard EN 50266-2-4
EN 60332-1
We supply the following variants of N2XH and N2XCH:
Protective conductorN2XH-J / N2XCH-JWith protective conductorN2XH-O / N2XCH-OWithout protective conductor
Conductor shapesREClass 1 solid - roundSEClass 1 solid - sectorialRMClass 2 stranded - roundSMClass 2 stranded - sectorial
N2XCH CABLE DIMENSION:


2 x 1,5 RE/ 1,5	54,0	1 x 1,38	11,5	0,61	177,0
2 x 2,5 RE/ 2,5	83,0	1 x 1,78	12,7	0,69	226,0
3 x 1,5 RE/ 1,5	73,0	1 x 1,38	11,3	0,68	196,0
3 x 2,5 RE/ 2,5	113,0	1 x 1,78	13,2	0,77	253,0
3 x 4 RE/ 4	168,0	1 x 2,25	16,0	0,90	336,0
3 x 6 RE/ 6	250,0	1 x 2,76	16,0	1,03	441,0
3 x 10 RE/ 10	425,0	1 x 3,56	18,5	1,35	659,0
3 x 16 RE/ 16	670,0	1 x 4,51	21,3	1,74	979,0
4 x 1,5 RE/ 1,5	88,0	1 x 1,38	12,6	0,77	221,0
4 x 2,5 RE/ 2,5	138,0	1 x 1,78	14,0	0,88	291,0
4 x 4 RE/ 4	208,0	1 x 2,25	15,2	1,04	393,0
4 x 6 RE/ 6	309,0	1 x 2,76	17,4	1,27	527,0
4 x 10 RE/ 10	525,0	1 x 3,56	19,9	1,62	783,0
4 x 16 RM/ 16	829,0	7 x 1,70	23,4	2,19	1.188,0
4 x 25 RM/ 16	1.190,0	7 x 2,13	28,1	3,16	1.716,0
4 x 35 RM/ 16	1.590,0	7 x 2,52	31,1	3,74	2.193,0
4 x 50 SM/ 25	2.295,0	19 x 1,89	33,7	4,57	2.784,0
4 x 70 SM/ 35	3.210,0	19 x 2,17	37,2	5,46	3.675,0
4 x 95 SM/ 50	4.383,0	19 x 2,52	43,0	6,97	5.063,0
4 x 120 SM/ 70	5.613,0	37 x 2,03	47,2	7,84	6.307,0
4 x 150 SM/ 70	6.813,0	37 x 2,27	52,0	9,66	7.617,0
4 x 185 SM/ 95	8.499,0	37 x 2,52	57,3	11,60	9.462,0
4 x 240 SM/120	10.985,0	61 x 2,24	64,3	14,06	12.264,0
7 x 1,5 RE/ 2,5	139,0	1 x 1,38	14,4	0,99	314,0
12 x 1,5 RE/ 2,5	214,0	1 x 1,38	19,0	1,66	503,0
7 x 2,5 RE/ 2,5	203,0	1 x 1,78	16,0	1,21	413,0
12 x 2,5 RE/ 4	348,0	1 x 1,78	20,9	1,90	667,0

N2XH & N2XCH CABLE SELECTION:
In addition to our portfolio of European power cables we also supply British standard low voltage power cables including armoured cable BS6724 cable with its LSZH outer sheathing. Our technical has a wealth of experience in providing support in the selection of the right cable for your application. Please call to discuss your specific application.
