• Model NO.：N2XH
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, SGS
• Model：N2xh
• Brand：Hongda
• Nominal Voltage Uo/U：600 , 1000 Volt
• Test Voltage：4000 [V]AC
• Temperature Range：-5°c Till +90°c
• Operating Temperature：250c
• Bending Radius：15-12 Diameter
• Transport Package：Steel Wooden Drum
• Specification：6mm2 to 300mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：500km,Month

 N2XHConductorUp to 25mm2: Solid copper (Class 1)
Above 25mm2: Stranded copper (Class 2)InsulationCross-linked Polyethylene (XLPE) Type 2XI1OutersheathLow Smoke Zero Halogen (LSZH) Type HM4 - flame retardant non-corrosive compound (FRNC)

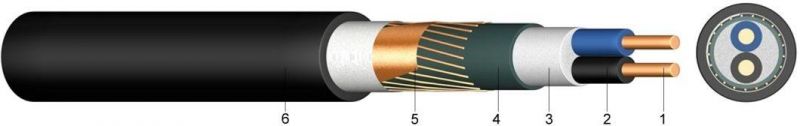

N2XCH CABLE CONSTRUCTION: N2XCHConductorUp to 25mm2: Solid copper (Class 1)
Above 25mm2: Stranded copper (Class 2)InsulationCross-linked Polyethylene (XLPE) Type 2XI1Concentric conductorCopper wires with counter helix of copper tapeOutersheathLow Smoke Zero Halogen (LSZH) Type HM4 - flame retardant non-corrosive compound (FRNC)
Technical data:Bending radiussingle-core stylex diameter15multi-core stylex diameter12Flammabilitystandard EN 50266-2-4
EN 60332-1
We supply the following variants of N2XH and N2XCH:
Protective conductorN2XH-J / N2XCH-JWith protective conductorN2XH-O / N2XCH-OWithout protective conductor
Conductor shapesREClass 1 solid - roundSEClass 1 solid - sectorialRMClass 2 stranded - roundSMClass 2 stranded - sectorial
N2XH CABLE DIMENSION:

Number of cores and nominal cross section mm2	Copper figure kg/km	Overall diameter appr. mm	Calorific potential kWh/m	Weight appr. kg/km
1 x 6 RE	60,0	7,8	0,33	112,0
1 x 16 RM	160,0	9,8	0,46	226,0
1 x 25 RM	250,0	11,4	0,62	327,0
1 x 35 RM	350,0	12,6	0,71	429,0
1 x 50 RM	500,0	13,8	0,82	555,0
1 x 70 RM	700,0	15,7	1,00	765,0
1 x 95 RM	950,0	17,4	1,14	1.024,0
1 x 120 RM	1.200,0	19,0	1,32	1.263,0
1 x 150 RM	1.500,0	20,9	1,59	1.542,0
1 x 185 RM	1.850,0	23,1	1,91	1.918,0
1 x 240 RM	2.400,0	25,6	2,24	2.466,0
1 x 300 RM	3.000,0	28,1	2,58	3.065,0
2 x 1,5 RE	30,0	9,3	0,45	125,0
2 x 2,5 RE	50,0	10,1	0,52	158,0
3 x 1,5 RE	45,0	9,7	0,51	142,0
3 x 2,5 RE	75,0	10,6	0,59	184,0
3 x 4 RE	120,0	11,7	0,70	247,0
3 x 6 RE	180,0	12,8	0,80	322,0
3 x 10 RE	300,0	14,9	1,02	480,0
3 x 16 RM	480,0	17,7	1,36	732,0
3 x 25 RM	750,0	24,0	2,25	1.200,0
3 x 35 RM	1.050,0	27,0	2,56	1.600,0
3 x 50 RM	1.500,0	29,0	3,19	1.800,0
3 x 50/25 SM/RM	1.750,0	32,0	3,53	2.200,0
3 x 70/35 SM/RM	2.450,0	37,0	4,31	2.950,0
3 x 95/50 SM	3.216,0	41,0	5,58	3.900,0
3 x 120/70 RM	4.300,0	45,0	6,58	4.800,0
3 x 150/70 RM	5.200,0	49,0	7,64	5.750,0
3 x 185/95 RM	6.500,0	55,0	9,42	7.200,0
3 x 240/120RM	8.400,0	62,0	12,22	9.150,0
4 x 1,5 RE	60,0	10,4	0,60	166,0
4 x 2,5 RE	100,0	11,4	0,69	220,0
4 x 4 RE	160,0	12,6	0,84	298,0
4 x 6 RE	240,0	13,8	0,95	391,0
4 x 10 RE	400,0	16,3	1,26	599,0
4 x 16 RM	640,0	19,2	1,63	908,0
4 x 25 RM	1.000,0	23,9	2,48	1.413,0
4 x 35 RM	1.400,0	26,7	2,93	1.863,0
4 x 50 SM	2.000,0	29,1	3,76	2.362,0
4 x 70 SM	2.800,0	32,2	4,55	3.151,0
4 x 95 SM	3.800,0	37,2	5,72	4.339,0
4 x 120 SM	4.800,0	40,8	6,36	5.332,0
4 x 150 SM	6.000,0	50,0	7,14	6.350,0
5 x 1,5 RE	75,0	11,2	0,71	195,0
5 x 2,5 RE	125,0	12,3	0,84	260,0
5 x 4 RE	200,0	13,7	1,00	357,0
5 x 6 RE	300,0	15,4	1,21	486,0
5 x 10 RE	500,0	17,8	1,52	723,0
5 x 16 RE	800,0	21,6	2,07	1.138,0
5 x 16 RM	800,0	21,6	2,17	1.138,0
5 x 25 RM	1.250,0	27,0	3,14	1.420,0
5 x 35 RM	1.750,0	37,0	3,95	2.400,0
7 x 1,5 RE	105,0	12,0	0,80	239,0
12 x 1,5 RE	180,0	16,0	1,29	395,0
19 x 1,5 RE	285,0	18,6	1,80	557,0
24 x 1,5 RE	360,0	22,2	2,35	736,0
30 x 1,5 RE	450,0	24,0	2,72	900,0
7 x 2,5 RE	175,0	15,0	1,31	400,0
12 x 2,5 RE	300,0	19,0	2,00	600,0
19 x 2,5 RE	475,0	22,0	2,69	840,0
24 x 2,5 RE	600,0	25,0	3,28	1.050,0
7 x 4 RE	280,0	14,9	1,48	457,0

N2XH & N2XCH CABLE SELECTION:
In addition to our portfolio of European power cables we also supply British standard low voltage power cables including armoured cable BS6724 cable with its LSZH outer sheathing. Our technical has a wealth of experience in providing support in the selection of the right cable for your application. Please call to discuss your specific application.
