• Model NO.：YR6418
• Name：Handheld Yr6418 Mini OTDR
• Transport Package：Cardboard or Plastic Bag
• Specification：IEEE1138
• Trademark：Powtech
• Origin：China
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. YR6418 Name Handheld Yr6418 Mini OTDR Transport Package Cardboard or Plastic Bag Specification IEEE1138 Trademark Powtech Origin China Production Capacity 1000PCS/Month

Product Description

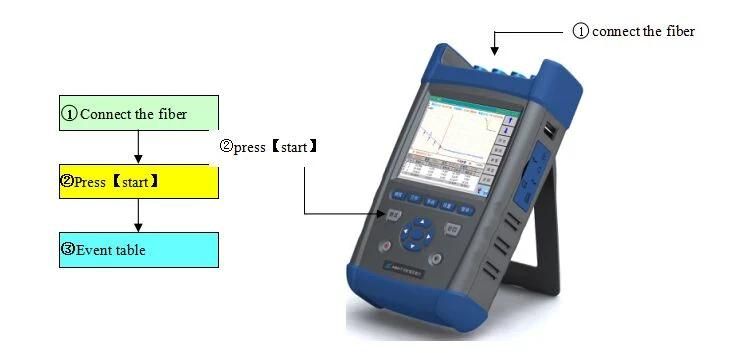

Handheld YR6418 Mini OTDR



YR6418 OTDR is a mini test instrument designed for FFTx network. It's mainly used to measure the physical characteristics of optical fiber & cables including length, transmission loss and splice loss etc. It can also accurately detect the potions of the events (such as splices, far end and breaks) along the optical fiber line.

Main Features:

1. ≤0.8m ultra-short event dead zone, easy to test optical fiber jumper;
2. 45dB large dynamic range, 256k data sampling points;
3. The most advanced technology of double color & material integrative mould, strong and firm;
4. Advanced antireflection LCD, clear display interface in field;
5. Various test modes, touch screen and keypad operation;
6. Automatic detection of the communication light signal;
7. Remote control via Ethernet;
8. Two USB interfaces: can connect to the external U disk, or communicate with PC through SyncActive software;
9. Support Bellcore GR196 and SR-4731 file format;
10. Alarm on low voltage of the battery;
11. WinCE window operation system, Chinese/ English operation interface;
12. Built-in visible fault locator (VFL) and optical power meter function;
13. Exchangeable optical output connector, more convenient for surface cleaning;
14. On-line upgrading of application software, no need to return back to the manufacturer.

 Technical Specifications:


Dynamic range	See details in "Technical specifications of YR6418C OTDR standard modules"
Distance accuracy	±(0.75m+sampling spacing+0.0025%×distance) (excluding refractive error)
Distance resolution	0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16, 32m
Distance range	0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256, 512km (single-mode); 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32 (850nm multimode)
Pulse width	5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240, 20480ns 5, 10, 30, 80, 160, 320, 640, 1280 (850nm multimode)
Loss threshold	0.01dB
Sampling points	256k
Linearity	0.03dB/dB
Loss resolution	0.001dB
Storage capacity	≥800 (within the instrument),≥65500 (2G SD card)
Refractive index setting range	1.00000~2.00000 (step: 0.00001)
Distance unit	km, m, K ft, ft
Display	640×480, 6.5 inch TFT color LCD (touch screen)
Optical output connector	FC/UPC (standard; options: LC/UPC, SC/UPC, ST/UPC)
Interface language	Simplified Chinese, English, Russian, Korean (can contact the Service for other languages)
External interfaces	USB, Min-USB, Ethernet, earphone, SD
Power supply	AC/DC adapter: AC100V~240V, 50/60Hz, 1.5A DC: 19V±2V(2A) Built-in lithium battery: 14.8V, 4400mAh, battery service time: 8 hours (room temperature, low brightness) (room temperature, low brightness)
Maximum power consumption	10W
Dimensions	W×H×D=186mm×295mm×75mm
Weight	About 2.5kg
Environmental suitability	Operating temperature: -5ºC~+50ºC( battery charging: 5ºC~40ºC) Storage temperature: -40ºC~+70ºC(battery: -20ºC~60ºC) Relative humidity: 5%~95%, non-condensing
