• Model NO.：K Type
• Brand：Reou
• Insulation：PVC, Teflon or XLPE, or Other or without Insulatio
• Transport Package：Carton, Spool, Pallet
• Specification：CE, RoHS, UL
• Trademark：Chengxin
• Origin：Jiangsu, China (Mainland)
• Production Capacity：100 Ton,Tons , Month

Basic Info.

Model NO. K Type Brand Reou Insulation PVC, Teflon or XLPE, or Other or without Insulatio Transport Package Carton, Spool, Pallet Specification CE, RoHS, UL Trademark Chengxin Origin Jiangsu, China (Mainland) Production Capacity 100 Ton/Tons / Month

Product Description

As one of the biggest alloy suppliers, we can supply all kinds of Thermocouple Wire /Chromel/Alumel/Copel according to customer

Thermocouple Type:
Type R, Type S, Type K, Type N, Type E, Type T.

with or without insulation
Insulation could be PVC, XLPE, Teflon, etc
Conductor wire could be solid or stranded

 High temperature Type-K Thermocouple with glass braid insulation

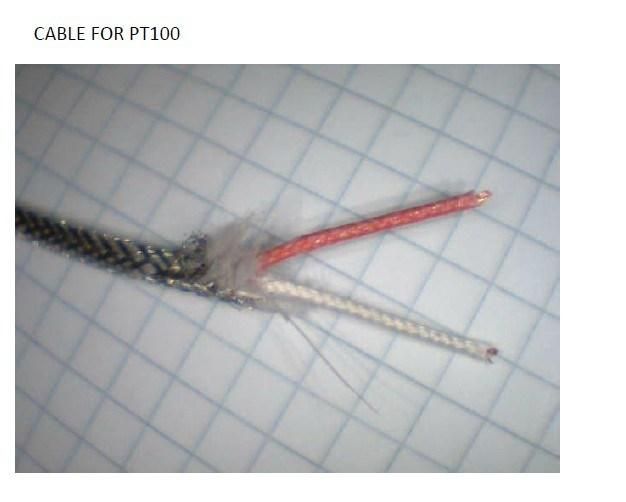

 CABLE FOR PT100

Copper flexible cable  2 x 0.22 mm2
Training conductor: 7 x 0.20 mm
Insulation: Electroglass "E"
Conductor color: White / Red
Armor: Neutral - Cu / Sn
Outer diameter of sheath: ( 2.8 ± 0.2 ) mm
Operating temperature: 400 degree celsius





Flexible cable for T / C  J and T / C  K  Class 1, 2 x 0.22 mm2
Training conductor: 7 x 0.20 mm
Insulation: Electroglass "E"
Strands conductors: DIN 43714
Cover: Electroglass "E"
Armor: Cu / Sn
Outer diameter of sheath: (2.8 ± 0.2) mm
Working temperature: 400 degree celsius





Cable for T / C  K  - Class 1: 2 x (1 x 0.32 mm2)
Training conductor: 7 x 0.20 mm
Insulation: Electroglass braided  R
Strands conductors: DIN 43714
Cover: Braided electrometer  R
Outer diameter of sheath: (2.2 ± 0.1) mm
Working temperature: 550 degree celsius
