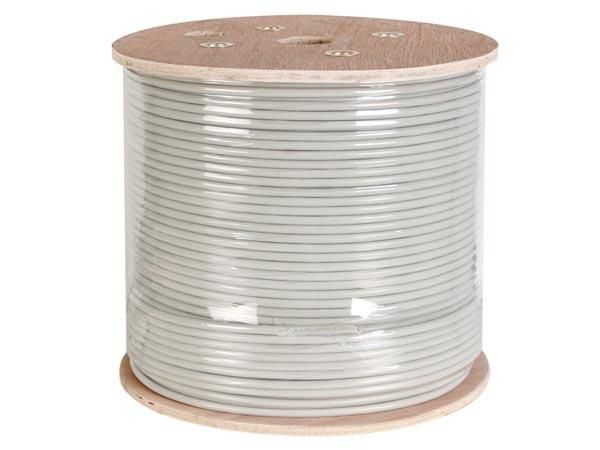

CAT6 550 MHz Shielded Solid LAN Cable

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable, Network Cable Ethernet Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,PE,LSZH
  • Type：Cat 6
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：LAN Cable
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS, CCC, ETL,CPR
  • Model：FTP CAT6 LAN Cable
  • Brand：Risun or OEM
  • Insulation：HDPE
  • Conductor：23 AWG
  • Drain Wire：Tc
  • Shield：Polyester Tape,Al Foil
  • Transport Package：305m,Wooden Drum
  • Origin：Hangzhou, Zhejiang, China
  • HS Code：8544491100
  • Production Capacity：20000 Boxes , Month

Description

Basic Info.

Model NO. LAN Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model FTP CAT6 LAN Cable Brand Risun or OEM Insulation HDPE Conductor 23 AWG Drain Wire Tc Shield Polyester Tape/Al Foil Transport Package 305m/Wooden Drum Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

CAT6 550 MHz Shielded Solid LAN Cable
      Key Features
  • Cat6 Standard
  • 1,000' Length
  • Four Pairs of Shielded Twisted Wire
  • 550 MHz Transmission Speed


construction:
conductor0.57mm (solid or strand) cu/cca/ccs
insulationHDPE 1.04±0.02mm
Drain wire0.4mm TC
ShieldPolyester Tape/Al Foil
sheath7.3±0.1mm pvc (fr,rohs,uv)/ lsoh / pe
cores/pairs8/4

mechanical properties:
elongationmin. 300%
temperature range-20 up to +75° c
tensile strengthmin 1.68kg/mm²



Packing

1) packing lengths: 305m/wooden drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

CAT6 550 MHz Shielded Solid LAN Cable

CAT6 550 MHz Shielded Solid LAN Cable

company profile

risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.

95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.

in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
CAT6 550 MHz Shielded Solid LAN Cable

process of production: CAT6 550 MHz Shielded Solid LAN Cable
