• Model NO.：15KV Concentric neutral cable
• Wire Core Material：Cu,Al
• Certification：ISO, CCC, CE, RoHS, UL, VDE, KEMA
• Model：Concentric Cable
• Brand：Yifang
• Cores Number：Single Core , Three Core
• Standards：IEC, DIN , Icea,BS Ect
• Insulation：XLPE , Tr-XLPE
• Jacket Color：Black
• Standard：CSA C68.5, CSA C68.3
• Sheath：Extruded to Fill
• Core：Single

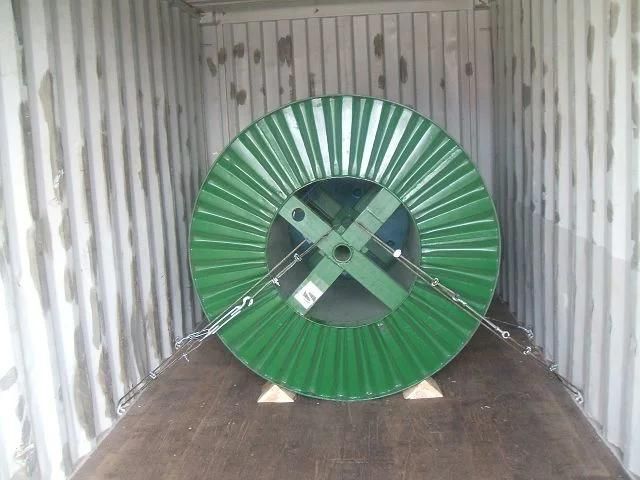

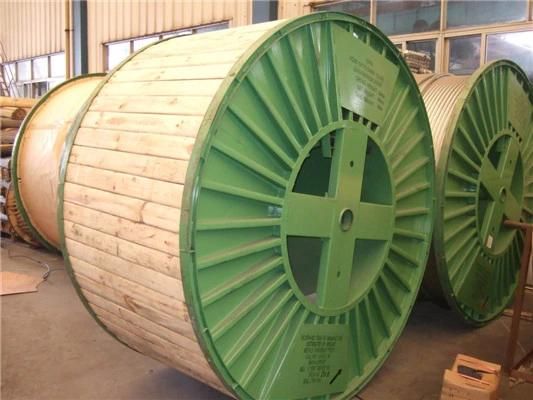

• Transport Package：Wood Drum, Steel Drum, Iron and Wood Drum
• Specification：1X500MCM
• Trademark：Yifang cable
• Origin：Zhengzhou, Henan
• HS Code：8544601200
• Production Capacity：3000km,Year

Basic Info.

Model NO. 15KV Concentric neutral cable Wire Core Material Cu/Al Certification ISO, CCC, CE, RoHS, UL, VDE, KEMA Model Concentric Cable Brand Yifang Cores Number Single Core / Three Core Standards IEC, DIN , Icea,BS Ect Insulation XLPE / Tr-XLPE Jacket Color Black Standard CSA C68.5, CSA C68.3 Sheath Extruded to Fill Core Single Transport Package Wood Drum, Steel Drum, Iron and Wood Drum Specification 1X500MCM Trademark Yifang cable Origin Zhengzhou, Henan HS Code 8544601200 Production Capacity 3000km/Year

Product Description

15kV Concentric Neutral Power Cable with 100% 133% XLPE Insulation Level

Application:

The xlpe single core concentric neutral cables rated 5 to 45KV which are used for the transmission and electrical energy, distribution of electrical energy.

Standards: ICEA S-94-649, CSA C68.3, CSA C68.5

Rated Voltage: 5KV, 8KV, 15, 25, 28 kv, 35, 46KV

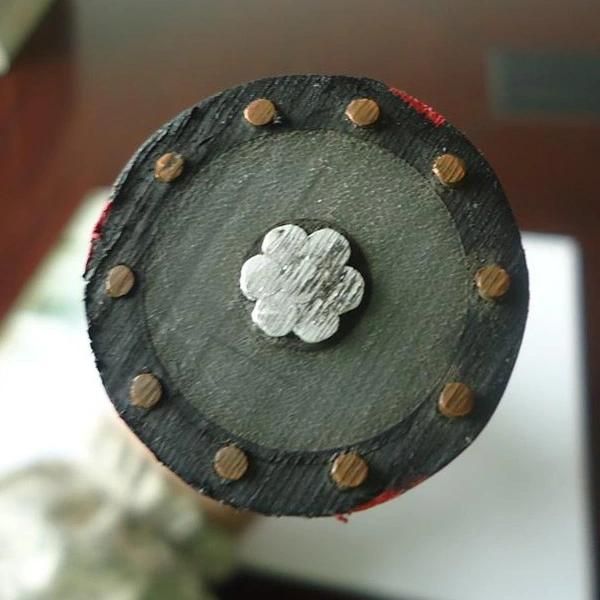

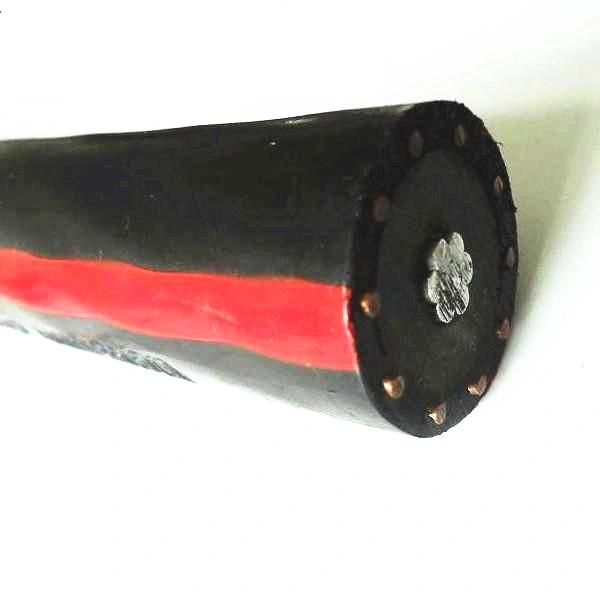

Constructure:

Conductor: Copper / Aluminum

Conductor screen: Semi-conducting compound

Insulation: XLPE / TR-XLPE (100% 133% insulation can be customized )

Insulation Screen: Semi-conducting compound

Metallic Screen: Round annealed copper wire

Water-blocking layer (optional): Longitudinal type



Wrapping tape(optional): non-woven clothing tape

Sheath: PVC/LDPE/LLDPE/HDPE

Color: Black, Black with 3 red striples

For other detailed information, pls contact us directly.
