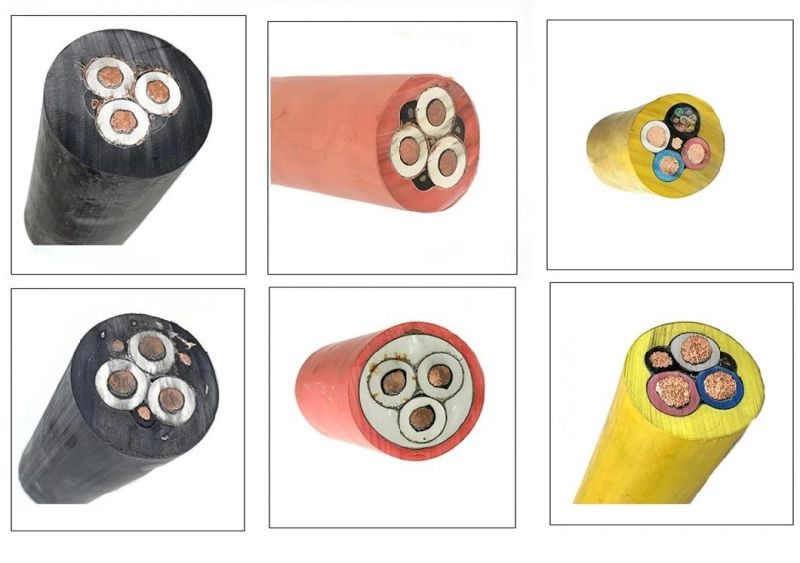

Type 241 Flexible Light-Duty Myq-0.3/0.5 Movable Light-Type Rubber Flexible Mining Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Mining Driller
- Conductor Material：Copper
- Sheath Material：Rubber
- Insulation Material：Rubber
Base Info
- Model NO.：MYQ
- Material Shape：Round Wire
- Range of Application：Mining Driller
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- OEM：Yes
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper
- Trademark：Feiya
- Origin：China
- HS Code：854449210
- Production Capacity：80000 Meter,Meters Per Month
Description
Flexible Electric Trailing Cable Type 241 Mining Cables
Applications
These Type 241 1.1 to 11KV Trailing cables are designed for various uses, including main feeder cable for continuous miners, pump cable, power supply cable. Overall semi-conductive screen provides protective earth contact for any object breaking the sheath prior to contact with power conductors.
Standard
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

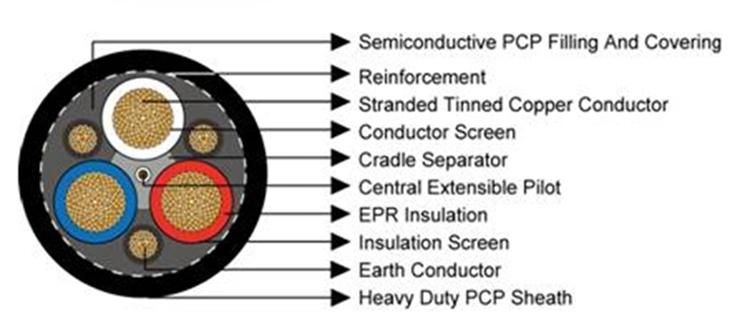

3×Conductors: Flexible stranded tinned annealed copper conductor.
Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV and above -extruded semiconductive tape.
Insulation: EPR.
Insulation Screen:Semiconductive tape.
Cradle Separator: Semiconductive PCP.
Overall Core Screen: Semiconductive PCP filling and covering.
3×Interstitial Earth Conductor: Semiconductive PCP insulated flexible stranded tinned copper conductor.
1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.
Textile Reinforcement: Open-weave braid reinforcement.
Sheath: Heavy duty PCP sheath.
