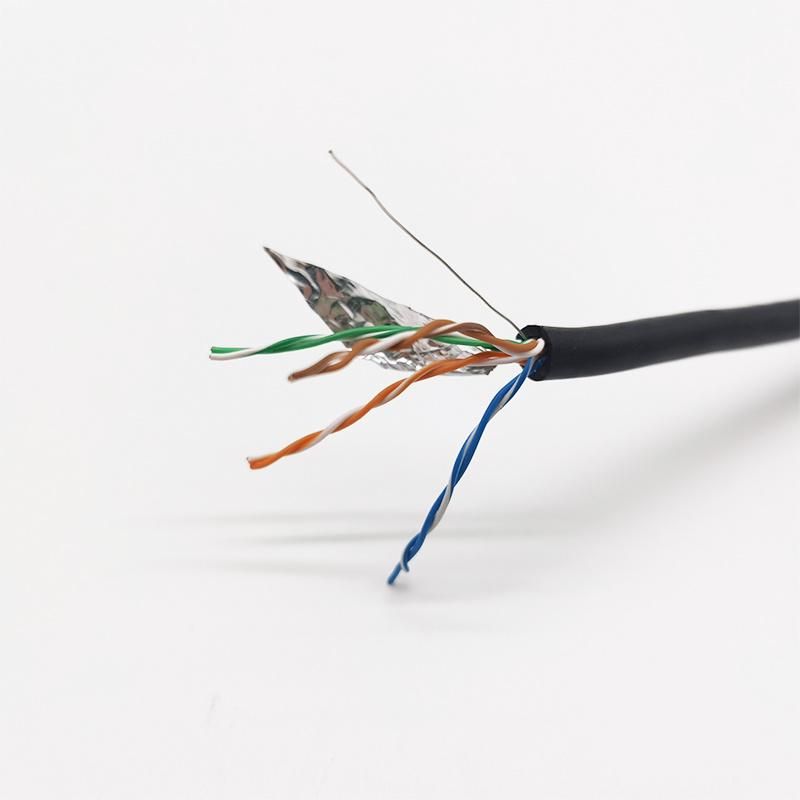

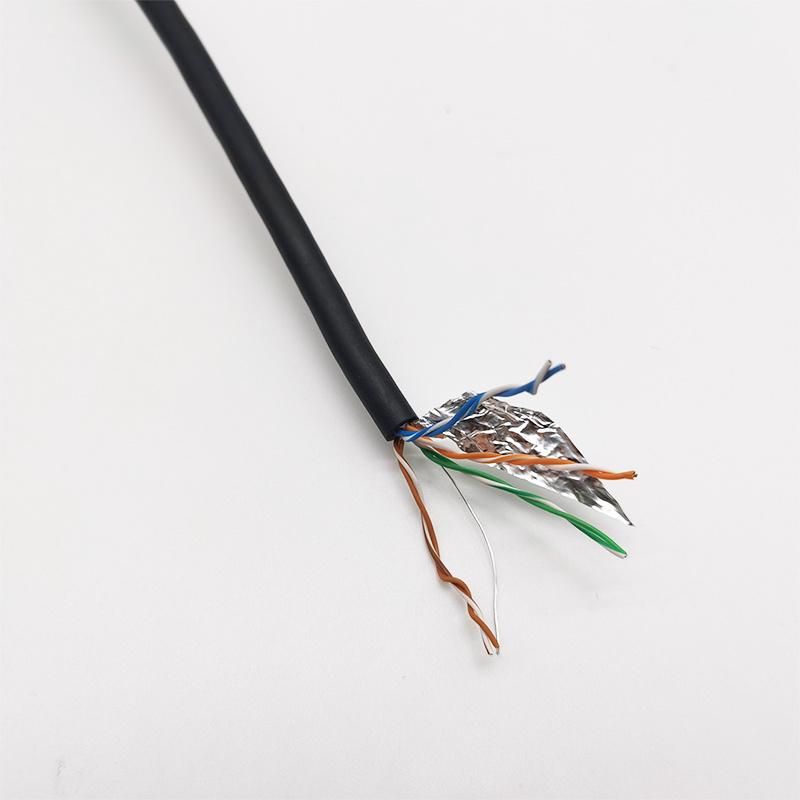

Halogen-Free Rd-H (St) H Data Transmission Cable with Drain Wire

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Halogen-Free Polymer
  • Insulation Material：Halogen-Free Polymer
  • Material Shape：Round Wire

Base Info

  • Model NO.：RD-H(St)H Cable
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemHalogen-free RD-H(St)H Data Transmission Cable With Drain WireConductorCopper wire bare, strandedInsulationHalogen-free polymerWrappingFoil ScreenPlastic-coated aluminium foil (St), approx. overlap 25%Outer sheathPalogen-free polymerPeak operating voltage    225 V (not for high power current installation purposes)Test voltage core/core  500 VTest voltage core/screen  2000 VTemperature RangeFlexible -5°C to +50°C
Fixed -30°C to +70°CColorOptionalApplicationHalogen-free data transmission cables are used in measurement and control technology for the transmission of digital and analogue signals up to a frequency of 10 kHz. These cables are used inside buildings and outdoors, however, not without UV protection.
