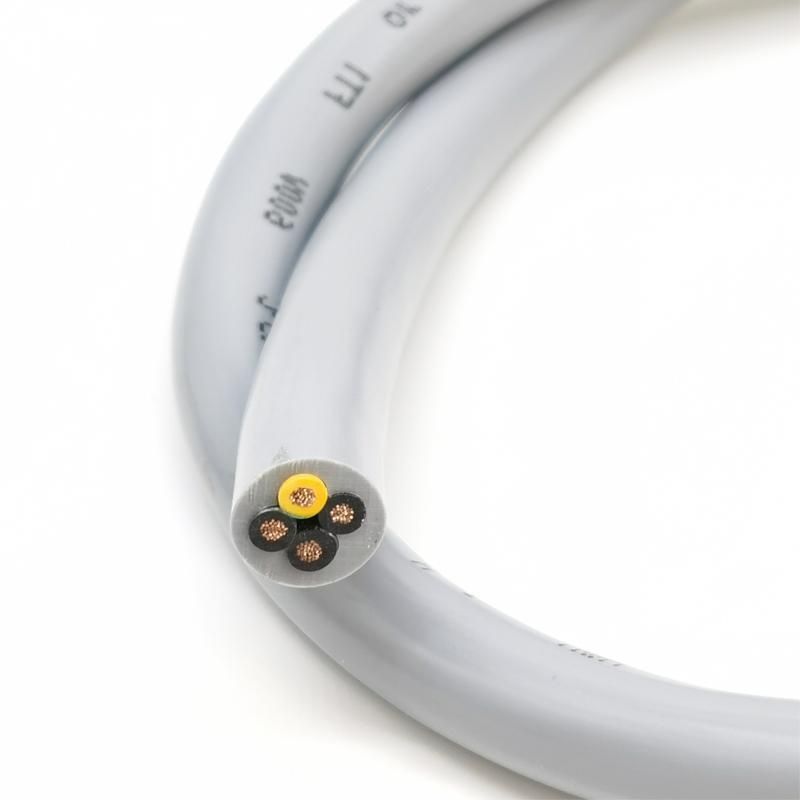

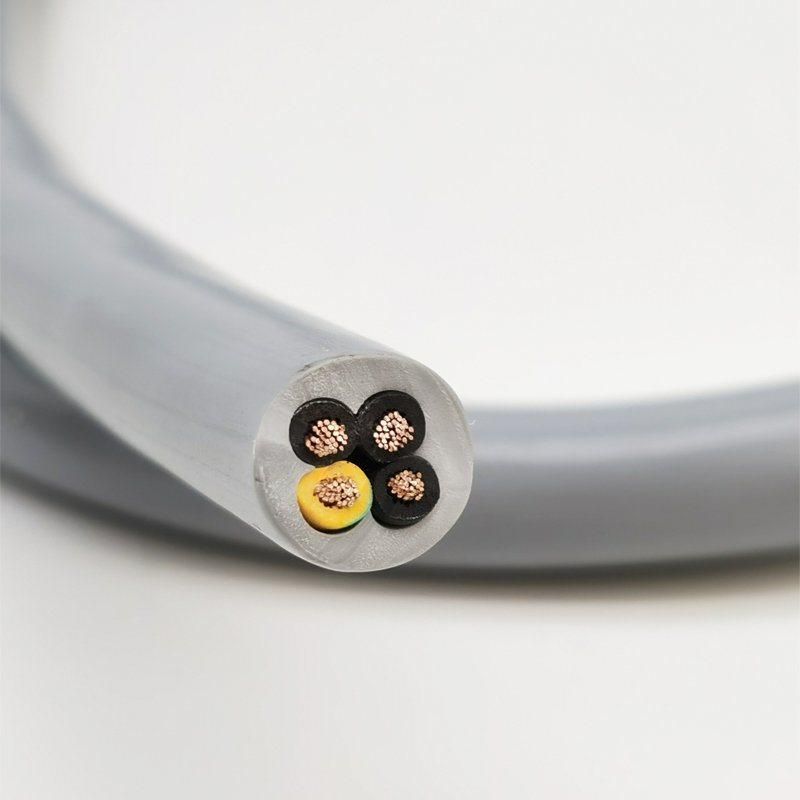

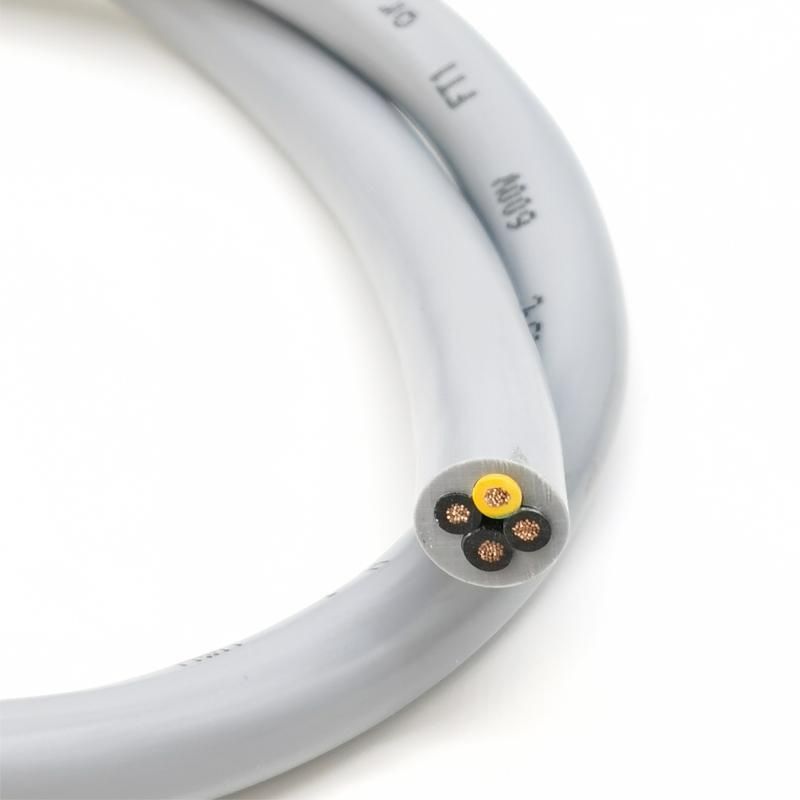

300/500V Cross-Linked Halogen-Free Insulated Cable Nhxmh-O/Nhxmh-J

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Electronic Equipment
  • Conductor Material：Copper
  • Sheath Material：Special Halogen-Free Thermoplastic Sheath
  • Insulation Material：Special Cross-Linked Halogen-Free Insulation

Base Info

  • Model NO.：NHXMH-O,NHXMH-J Cable
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

Item300/500V Cross-linked Halogen-free Insulated Cable NHXMH-O/NHXMH-JConductorStranded fine bare copper wireInsulationSpecial cross-linked halogen-free insulationOuter sheathSpecial halogen-free thermoplastic sheathCore NumberMulticores (As client's requirement)Nominal VoltageUo/U 300/500 VTest Voltage2000 VTemperature-25 ºC to+70 ºCMinimum Bending Radius7.5 × cable diamete ColorOptionalApplicationThe cable can be used in fire situations where the characteristics of halogen free, low smoke and low corrosive gases are clearly required.
lt can be used in industrial facilities, public facilities, hotels, airports, subways, railway stations, hospitals, department stores, banks, schools, theaters, high-rise buildings, etc and in dry environment.
Do not install in vibration and do not be exposed to direct sunlight or lay in water.
