• Model NO.：AXC-800
• Specification：CE, RoHS, SGS, ISO
• Trademark：OPTELEC
• Origin：China
• HS Code：76169990
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. AXC-800 Specification CE, RoHS, SGS, ISO Trademark OPTELEC Origin China HS Code 76169990 Production Capacity 10000PCS/Month

Product Description

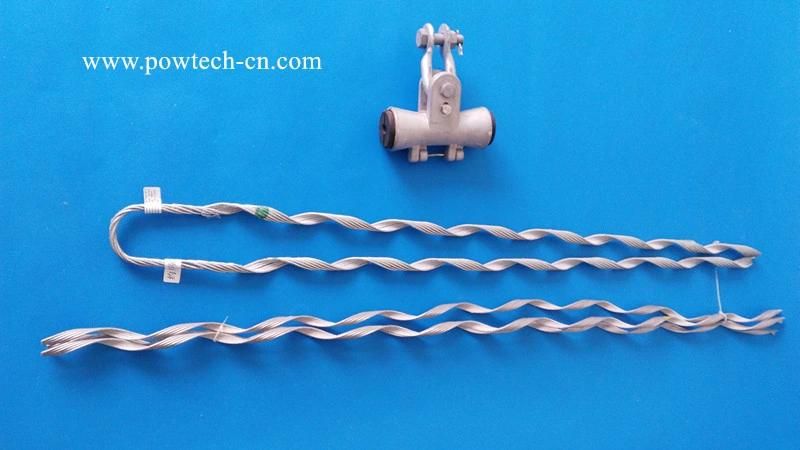

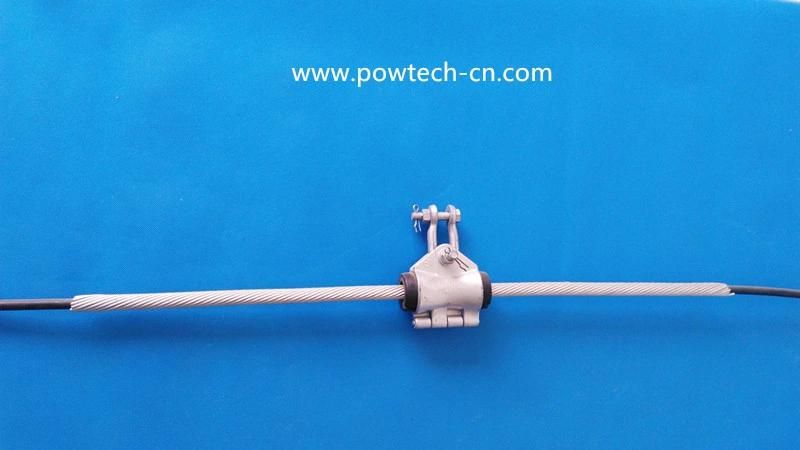

Suspension sets for ADSS cable 800m span( Two amour rods)


Features:
ADSS two amour rod suspension sets are designed to reduce static stress ate the support point of ADSS cable,as well as ensure that the cable is cushionedvagainst the dynamic stress of Aeolian vibration.The combination of the reinforcing amour rods and dead-end amour rods provide against cable bending stress,there's no other stress concentration,so that the fiber optic doesn't produce extra loss in the cable.The grip strength of the clamp is bigger than 10%-20% of the rated tensile strength.

Applications:
(1)The span should be200-800m.
(2)The poles/towers with corner angle less than or equal to 30° straight lines
(3)The angle of single-side suspensions is between15°-18°


Standard Configuration:
1.U-7 Anchor shackle
2.ZH-7 Eye chain link
3.AGS clamp Aluminum  housing
4.Rubber insert
5.Dead end amour rods
6.Reinforcing rods
7.Other link fittings are customized

Technical data sheet:
Breaking force:20kN,30kN,40kN,50kN,60kN,70kN,80kN,100kN
Recommended Span Length:200m,300m,400m,500m,600m,700m,800m,1000m
