• Model NO.：snow melting heating cable
• Material Shape：Flat Wire
• Range of Application：Outdoor Heating
• Certification：ISO9001, CE, UL
• Brand：Senphus
• Size：20m,40m,60m,80m,100,120m......200m
• Color：Orange, Blue, Black
• Volt：110V,120V,220V,230V,240V
• Power：20W,M,30W,M,40W,M,50W,M
• Transport Package：Carton and Pallet
• Specification：CE, UL
• Trademark：Senphus
• Origin：China
• Production Capacity：5000000m,Year

Basic Info.

Model NO. snow melting heating cable Material Shape Flat Wire Range of Application Outdoor Heating Certification ISO9001, CE, UL Brand Senphus Size 20m,40m,60m,80m,100,120m......200m Color Orange, Blue, Black Volt 110V,120V,220V,230V,240V Power 20W/M,30W/M,40W/M,50W/M Transport Package Carton and Pallet Specification CE, UL Trademark Senphus Origin China Production Capacity 5000000m/Year

Product Description

Snow melting driveway underfloor heating cable:

Melt snow in a variety of industrial areas, such as sidewalks, stairways, driveways and parking ramps.

Snow melting and de-icing systems reliably prevent the accumulation of snow and ice.

1. Heating resistive cores
2. Fluropolymer inner insulation
3. Tinned cooper braided
4. PVC sheath
5. Steel wire reinforced core



SNOW MELTING  ELECTRIC HEATING CABLE SYSTEMS



When you are designing a driveway made of pavers, asphalt, or concrete and you want it heated, SENPHUS has the snow melting solution for you. We all know how disappointing it is to watch the snow fall every winter, knowing that it's only a matter of time before we have to bundle up and head outside to shovel the walkways and salt the stairs. Instead, imagine relaxing by the fireplace in the comfort of your home on a snowy winter day. With our snow melting systems, you can do just that.



HEATING DRIVEWAYS, PATIOS, WALKWAYS AND STAIRS

When you install a snow melting system from SENPHUS, you'll enjoy not having to shovel your driveway all winter. Since the asphalt, concrete or paver surface, absorbs the heat from the snow-melting heating element underneath, the snow and ice melt without an effort from you. Our systems are available with four different control machines, each with different specifications to sense things like air temperature or moisture on the pavement. We're sure you'll love your heated driveway, and our cable systems come with a ten year warranty, so you can be comfortable knowing they'll stand the test of time.







  300W/M2 twin conductor Snowmelting driveway heating cable mat:

Volt	TYPE	Power     (W)	Resistance @20oC+10/-5%	heated wire length ±0.2M	Space between cables	Cold wire	Outer Dia.(mm)	Cable Color	Mat size (M*M)
230V	SHHM-720W-6M	720	73.47	30	9CM	3C 1.0mm2 L=10M black	7.0±0.2mm	yellow	0.4*6
230V	SHHM-960W-8M	960	55.10	40	9CM	3C 1.0mm2 L=10M black	7.0±0.2mm	yellow	0.4*8
230V	SHHM-1200W-10M	1200	44.08	50	9CM	3C 1.0mm2 L=10M black	7.0±0.2mm	yellow	0.4*10
230V	SHHM-1440W-12M	1440	36.74	60	9CM	3C 1.0mm2 L=10M black	7.0±0.2mm	yellow	0.4*12
230V	SHHM-1680W-14M	1680	31.49	70	9CM	3C 1.0mm2 L=10M black	7.0±0.2mm	yellow	0.4*14
230V	SHHM-1920W-16M	1920	27.55	80	9CM	3C 1.0mm2 L=10M black	7.0±0.2mm	yellow	0.4*16
230V	SHHM-2160W-18M	2160	24.49	90	9CM	3C 1.0mm2 L=10M black	7.0±0.2mm	yellow	0.4*18
230V	SHHM-2400W-20M	2400	22.04	100	9CM	3C 1.5mm2 L=10M black	7.5±0.2mm	yellow	0.4*20

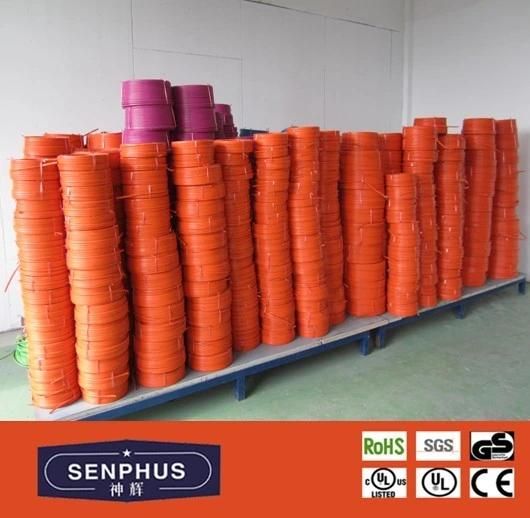

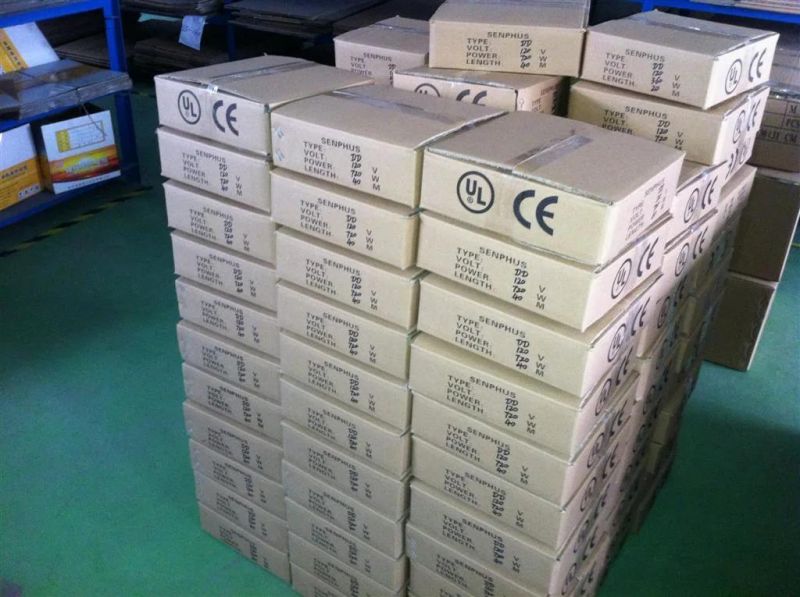

PRODUCTION SHOW :
