PVC Material ADSS Spiral Vibration Dampers
Qingdao Powtech Electronics Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum Clad Steel
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：FTL
- Material Shape：Round Wire
- Range of Application：Cold-Resistant
- Certification：ISO9001, CE, UL, CCC, RoHS
- Brand：Optelec
- Length：1380mm
- Suitable Cable Dia.：11.70~14.30mm
- Transport Package：Wooden Case
- Specification：CE, RoHS, SGS, ISO
- Trademark：Powtech
- Origin：China
- HS Code：39269090
- Production Capacity：2000PCS,Day
Description
Basic Info.
Model NO. FTL Material Shape Round Wire Range of Application Cold-Resistant Certification ISO9001, CE, UL, CCC, RoHS Brand Optelec Length 1380mm Suitable Cable Dia. 11.70~14.30mm Transport Package Wooden Case Specification CE, RoHS, SGS, ISO Trademark Powtech Origin China HS Code 39269090 Production Capacity 2000PCS/DayProduct Description

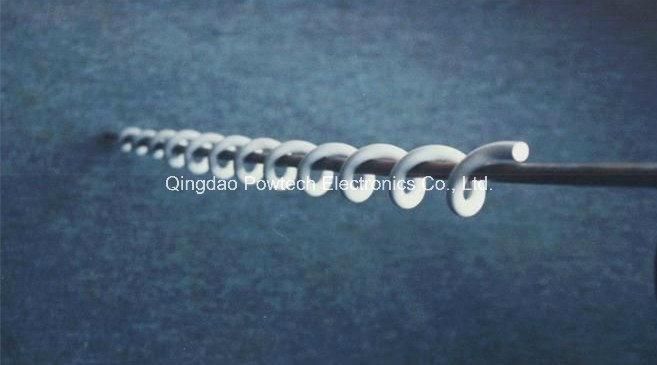

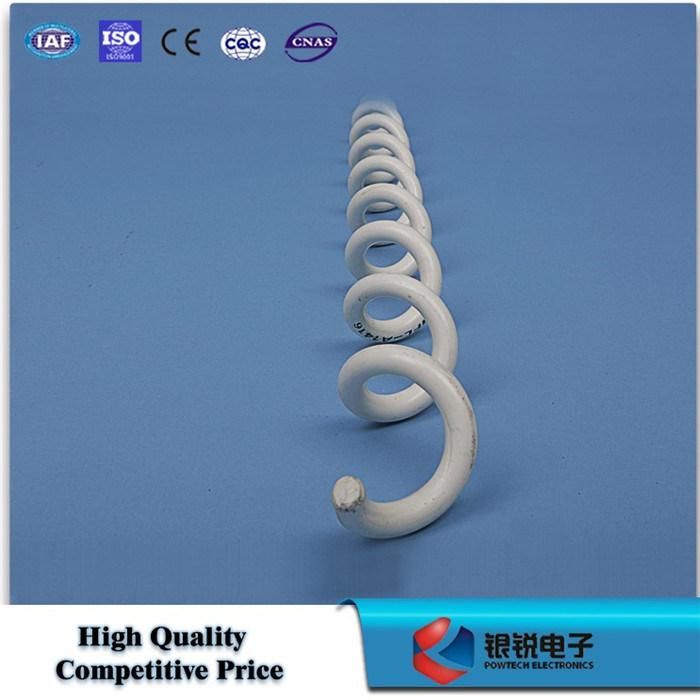

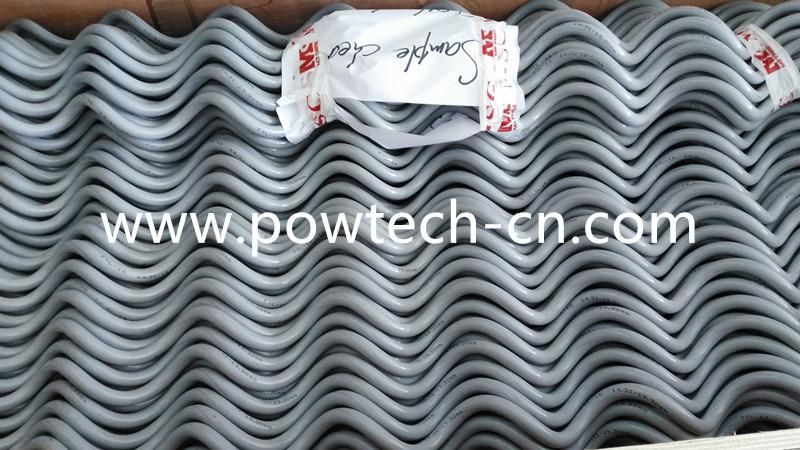

PVC Material ADSS Spiral Vibration Dampers
Features:
1.20 years experiences,Factory direct-sales
2.ISO 9001: 2008 certificated
3.Strict quality control system
4.Easier,More quick installation
5.Faster delivery
Vibraion absorber is made of high-strength, antigenic and high-elasticity PVC plastic, easy to install. It is an interference type damper designed to attenuate vibration amplitude by impact with its damping section for OPGW cable diameter shorter than 12mm and ADSS cable.
Technical Specifications:
| Model | Cable Diameter(mm) | Gripping Length L1(mm) | Total Length L(mm) | Weight(kg) |
| FTL-11 | 8.3~11.7 | 250 | 1300 | 0.28 |
| FTL-14 | 11.71~14.30 | 250 | 1350 | 0.30 |
| FTL-16 | 14.31~19.30 | 330 | 1670 | 0.66 |

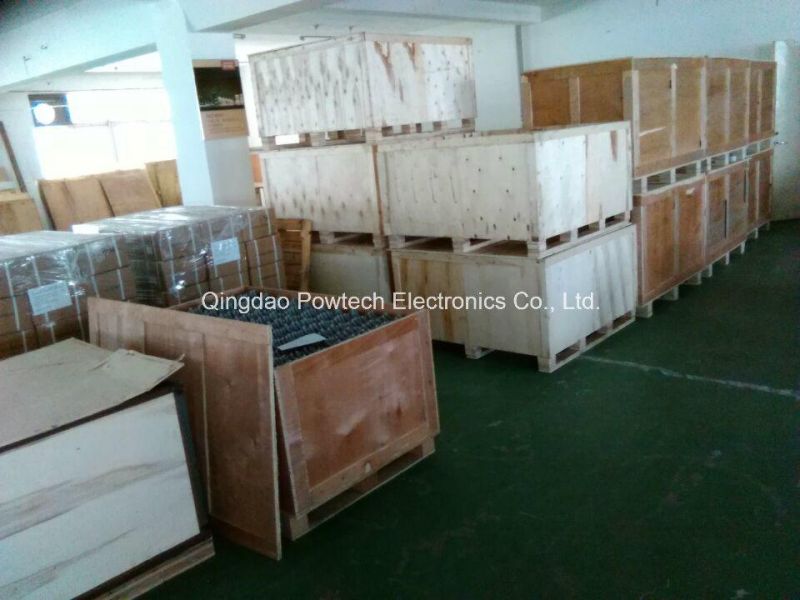

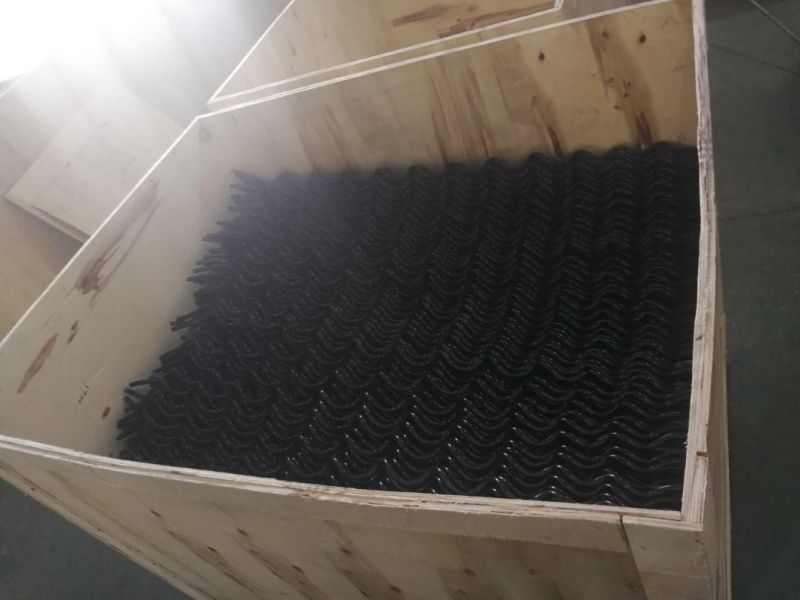

Warehouse:

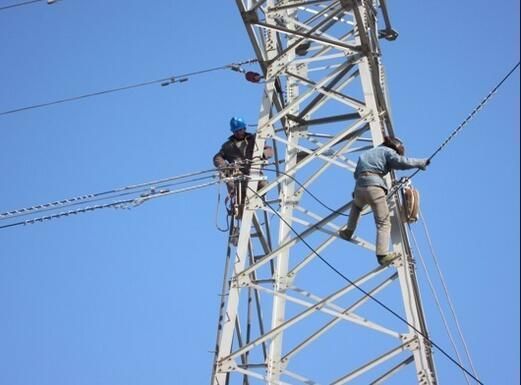

Installation Guide:
