• Model NO.：GJX
• Range of Application：Mine
• Certification：ISO9001, CE, UL, CCC, RoHS
• Brand：Optelec
• Cable Diameter：3,8 Inch
• Transport Package：Wooden Drum
• Specification：ASTM A475
• Trademark：Powtech
• Origin：China
• HS Code：7312100000
• Production Capacity：100km,Month

Basic Info.

Model NO. GJX Range of Application Mine Certification ISO9001, CE, UL, CCC, RoHS Brand Optelec Cable Diameter 3/8 Inch Transport Package Wooden Drum Specification ASTM A475 Trademark Powtech Origin China HS Code 7312100000 Production Capacity 100km/Month

Product Description

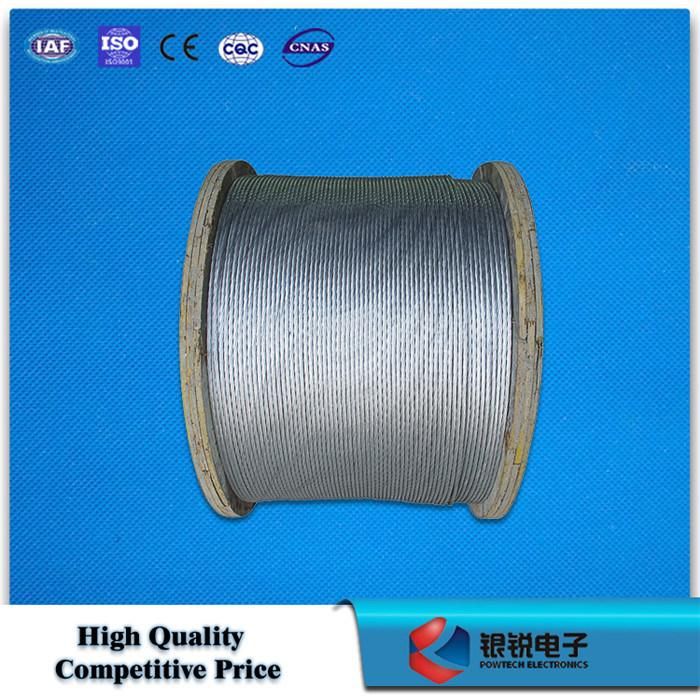

Galvanized Steel Wire Strand (guy wire, stay wire)


Features:
1. Material: 45#, 60#, 65#, 70#, 72B, 80#, 82B, 65Mn
2. Surface Coating: Galvanized
3. Characteristic: Good galvanized, good corrosion prevention
Excellent mechanical properties
Being used for overhead ground wire

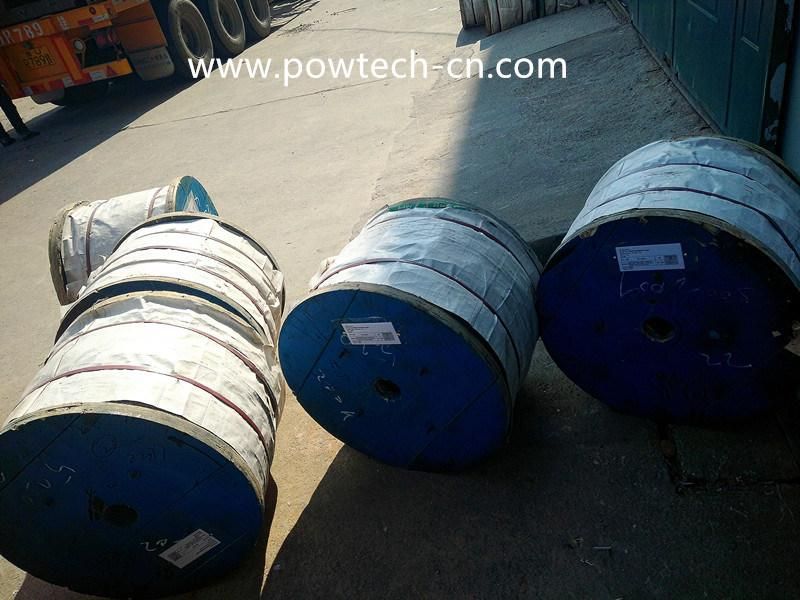

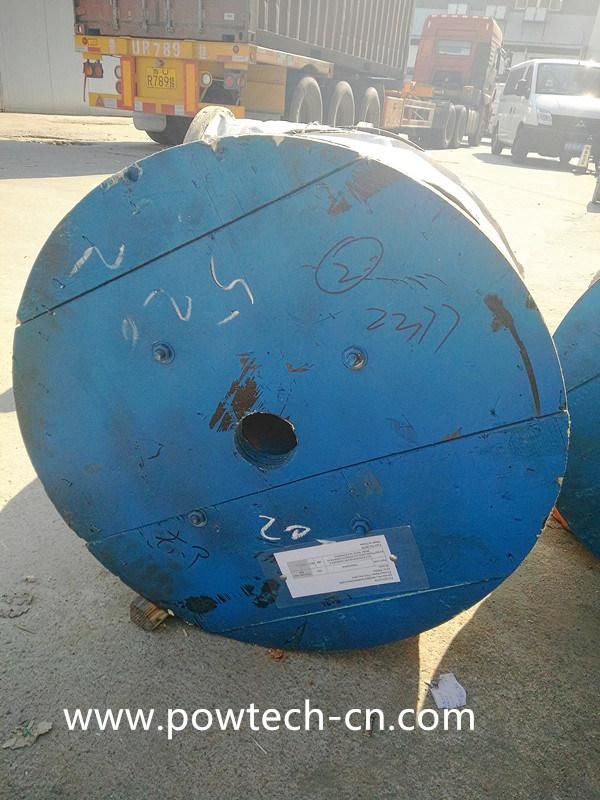

4. Packing type: Spool
Application: Being used for overhead ground wire in electric communication, television and brandcasting. Remarks during use and handling:
Warehouse:

A. During transportation, handle softly and carefully, avoid bumping and damaging the outer packing materials. Moisture and rain prohibited. Steel strand must be stored in dry and well ventilated indoors
B. Pay attention to the direction of steel strand when paying-off. Be sure the spool is rotating freely as to achieve identical tension of all the steel strand

C. In case of batch usage, the remaining should be repacked to avoid oxidizing of the surface

Structure	Diameter(mm)	Tensile Strength MPa
1X3	6.2-8.6	1175 1270 1370 1470 1570
1X7	3.0-12	1175 1270 1370 1470 1570
1X19	8.0-20	1175 1270 1370 1470 157
