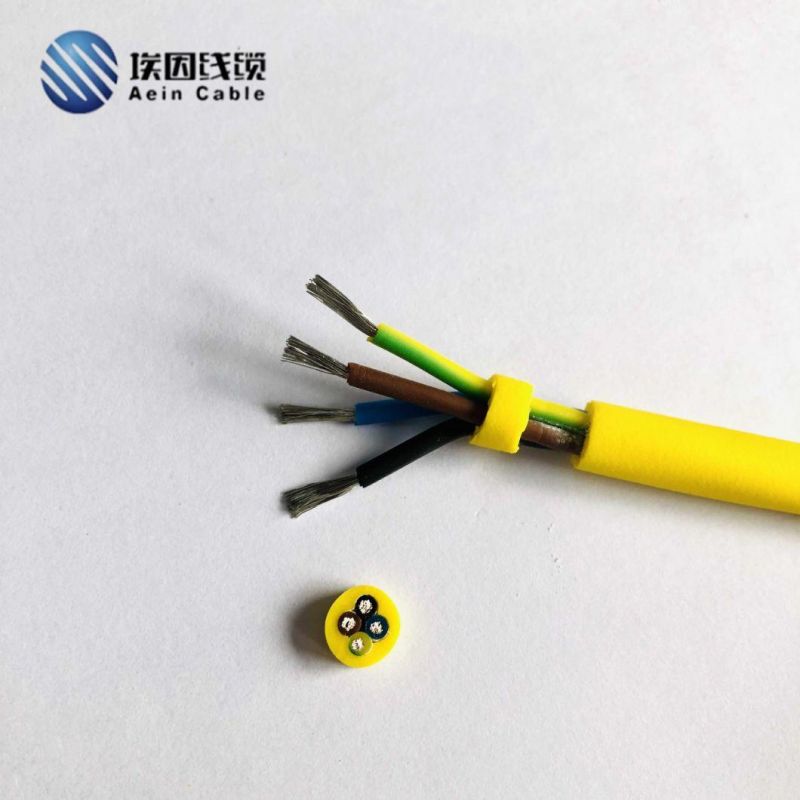

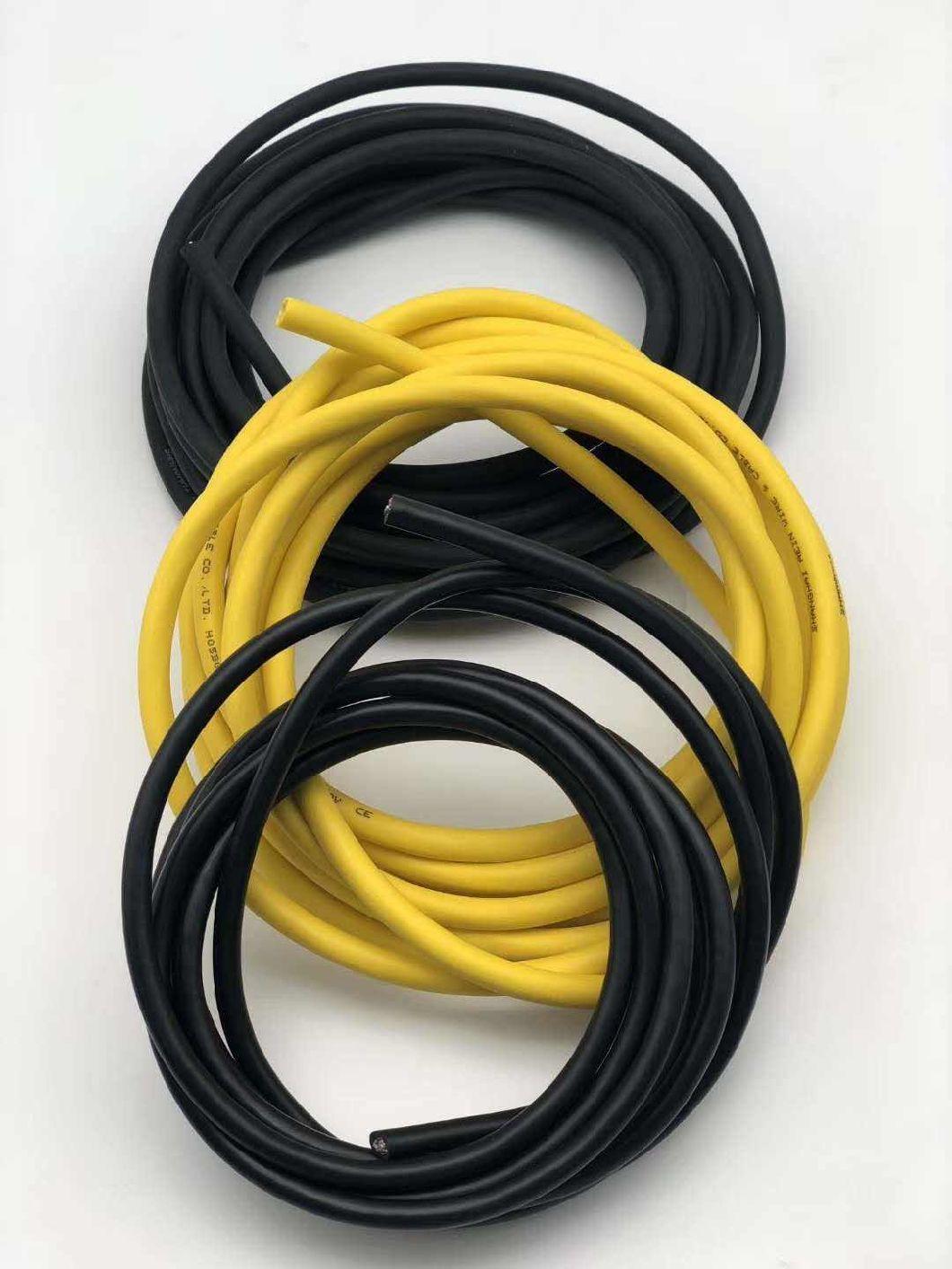

F-Cvv Special Thermoplastic Insulated Flexible Control Cable 0.6/1kv

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Installation
  • Conductor Material：Copper
  • Sheath Material：Special Thermoplastic Sheath
  • Insulation Material：Special Thermoplastic Insulation

Base Info

  • Model NO.：F-CVV
  • Material Shape：Round Wire
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemF-CVV CableConductorCopper (as client's required)InsulationSpecial Thermoplastic Insulation (as client's required)Outer SheathSpecial Thermoplastic Sheath (as client's required)Core NumberMulti-coresSpecifications1.5mm2 up to 300mm2Nominal Voltage600/1000VTest Voltage3500VOperating Temperature-10ºC to +90ºCMinimum Bending Radius15 × cable diameter ColorOptionalCharacteristicFire resistance
Environmental protectionApplicationlt is widely applicable to the monitoring system of electrical appliances,control equipment, automation devices and electrical equipment and power plant control circuits. It can be installed outdoors or installed in dry or humid cable trenches.
