Cable & Wire

Home > Product > Electric Wire & Cable

Z1c4z1-K (AS) Multi-Core 4G to 64G Shielded Cable 300/500V 0.5mm2 to 4mm2 Wires

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：XLPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：Z1C4Z1-K (AS) Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

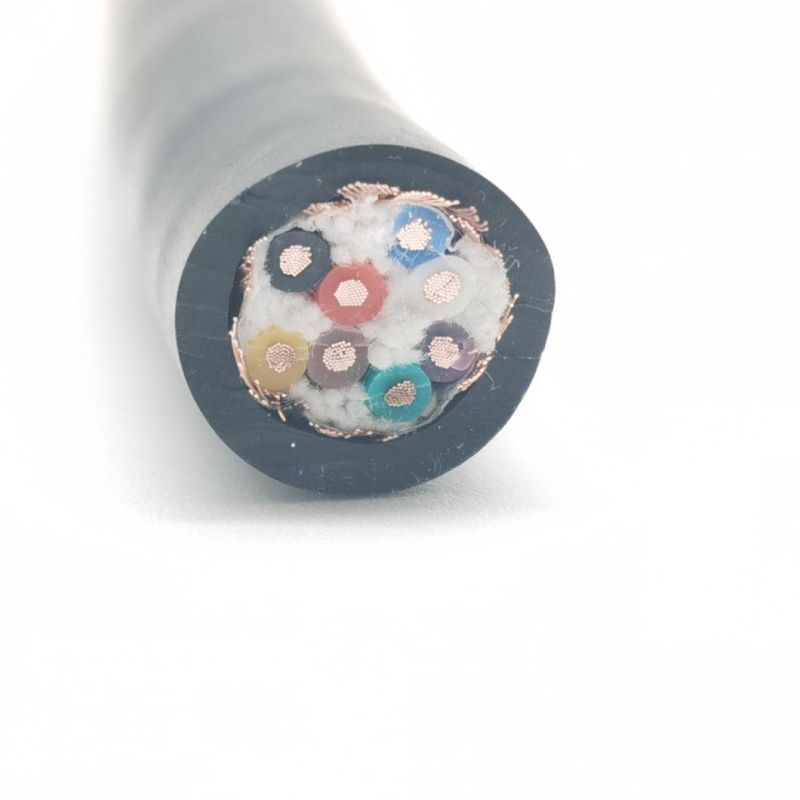

ItemZ1C4Z1-K (AS) CableConductorFlexible bare copper wiresInsulationXLPEFillerLSZH Compound - inner sheathScreeningBare copper wire braid
Coverage: 60% aprox.Outer SheathPVCCore NumberMulti-coresTemperature rangeFixed installation: -15°C to +70°C
During installation: 0°C Min.
Short-circuit (Max. 5 seg): 160°CTesting voltage2000VOperating voltage300/500 VColorOptionalApplicationFlexible shielded instrumentation and control cable for fixed installations in industrial processes or buildings. Especially recommended when good electromagnetic protection and good cable fire performance is required.
