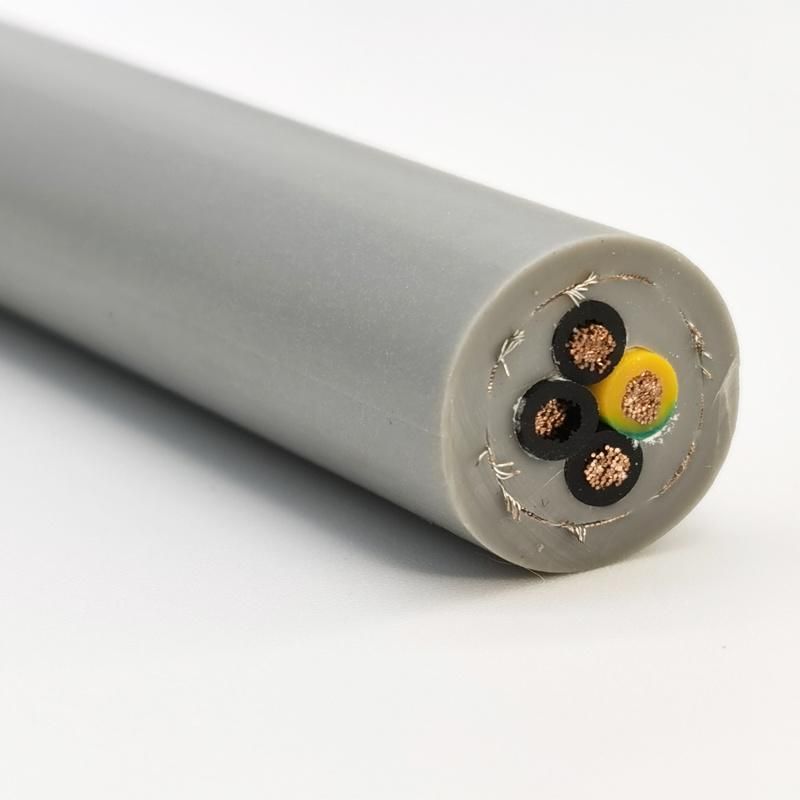

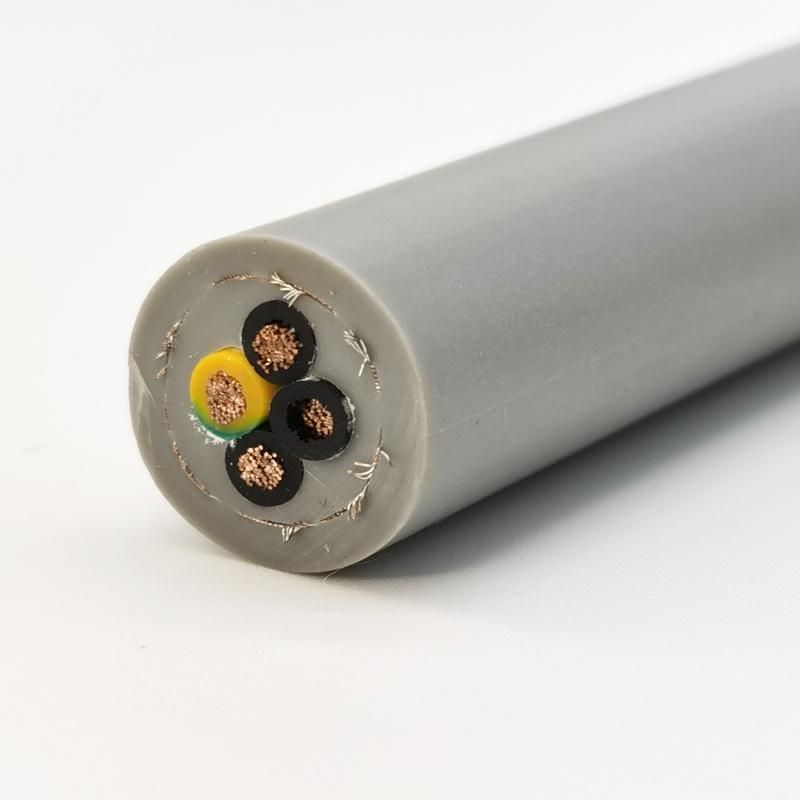

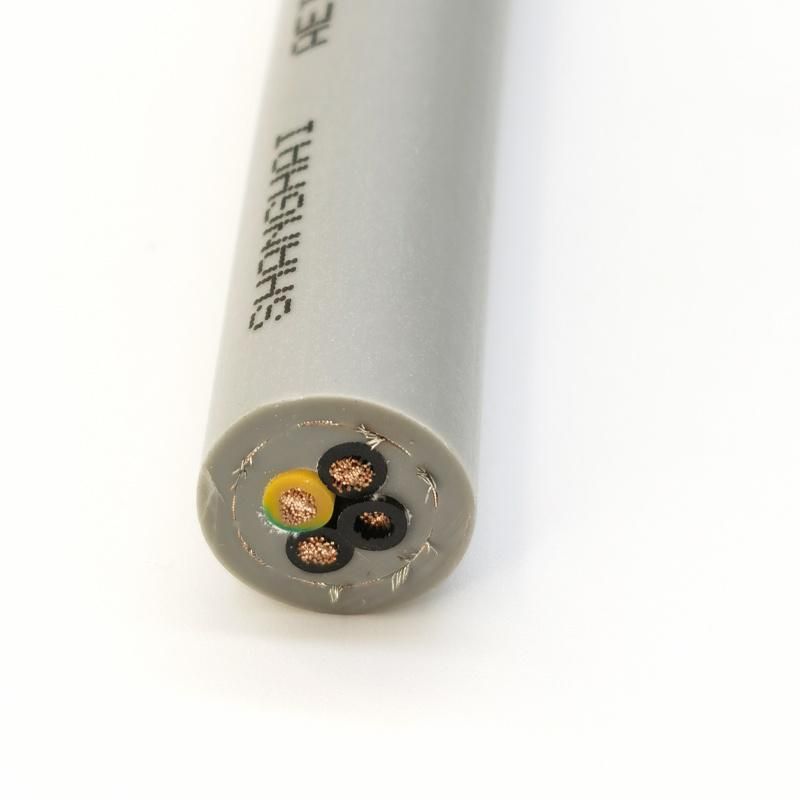

Jz-602-Cy Screened Two Approval Control Cable 600 V Electrical Wire

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC, PUR
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：JZ-602-CY
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemJZ-602-CY Screened Two Approval Control CableConductorBare copper conductor, fine wire acc. to DIN VDE 0295 cl.5 / IEC 60228 cl.5InsulationPVC UL type 90°C acc. to UL Std. 758 as well as CSA Std. C22.2 No.210Inner sheathPVC UL type 90°C acc. to UL Std. 758 as well as CSA Std. C22.2 No.210Outer Sheath PVC UL type 90°C acc. to UL Std. 758 as well as CSA Std. C22.2 No.210Nominal voltageUL/CSA  600 VTest voltage3000 VBreakdown voltage Min. 6000 VScreenBraided screen of tinned Cu wires approx. 85% coverageTemperature RangeFlexing -5°C to +90°C
Fixed installation -40°C to +90°CColorOptionalCertificationCEApplicationUL and CSA approved flexible control cables up to 600 V, for all machinery in tooling and plant construction, suitable for installation in dry, moist or wet environments for medium mechanical loads. Designed for the export-orientated machinery manufacturer, specifically for USA and Canada. The thick braiding screen ensures compliance with electromagnetic requirements.
