Flexible Low Voltage Je-Y (St) Y Bd Data Cable PVC Insulated and Sheathed

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：JE-Y(St)Y Bd Cable
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemFlexible Low Voltage JE-Y(St)Y Bd Data Cable ConductorCopper conductor bare, solid, conductor diameter: 0.8 mmInsulationPVCWrappingFoilScreenPlastic-coated aluminium foil (St), approx. overlap 25%Outer SheathPVC Peak operating voltage225 V (not for high power current installation purposes)Test voltage core/core500 VTest voltage core/screen2000 VTemperature RangeFlexible -5°C to +50°C
Fixed -30°C to +70°CColorOptionalCertificationCE

Properties


The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers ApplicationThe cables are used for the transmission of signals and measurements in symmetrical circuits for control technology, as well as for the transmission of information in data and process computer systems. They can be used in dry and damp operating areas, as well as in and under plaster and outdoors with fixed installation. Installation cables are not permitted for high voltage current installations or underground laying.

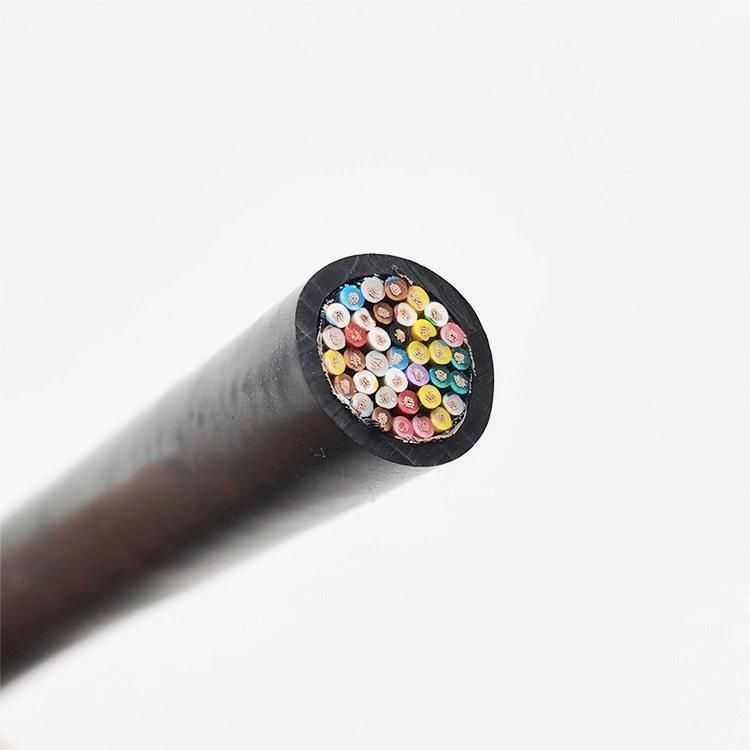

Flexible Low Voltage Je-Y (St) Y Bd Data Cable PVC Insulated and SheathedFlexible Low Voltage Je-Y (St) Y Bd Data Cable PVC Insulated and Sheathed

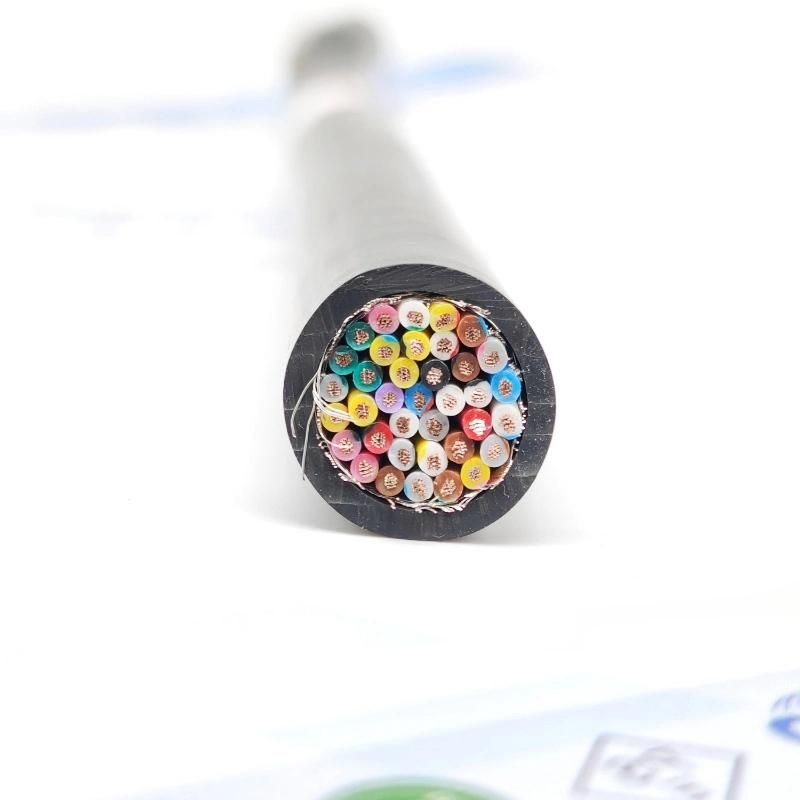

Flexible Low Voltage Je-Y (St) Y Bd Data Cable PVC Insulated and SheathedFlexible Low Voltage Je-Y (St) Y Bd Data Cable PVC Insulated and Sheathed
