Tkd Alternative Cable Profibus PA Cable Foamed PE/PP Insulation PVC Sheath 250 V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：PROFIBUS PA Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

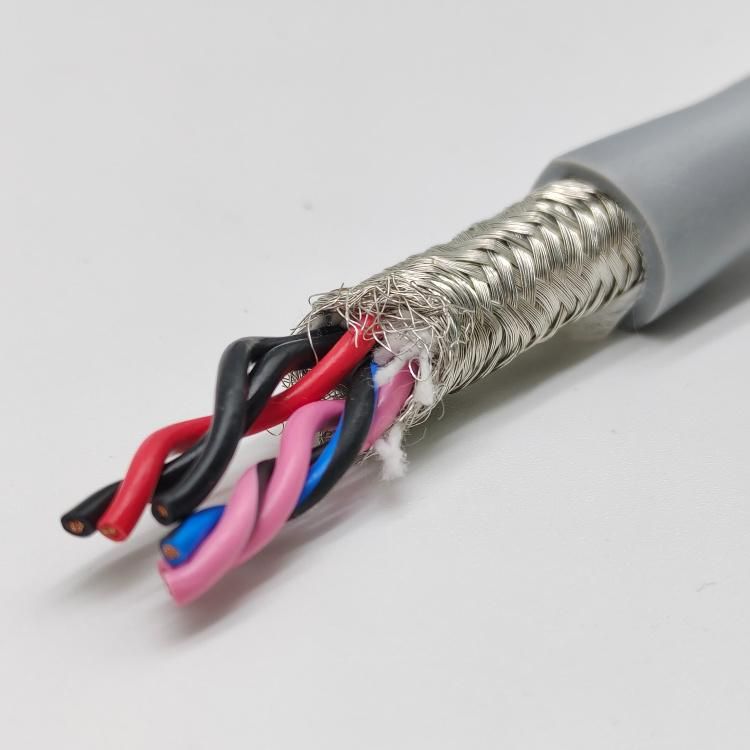

ItemTkd Alternative Cable PROFIBUS PA Cable Foamed PE/PP Insulation PVC Sheath 250 VConductorBare copper stranded condutorInsulationFoamed PE/PP StrandingBUScores stranded to a pairShield Copper braid tinned; TRAY: alu-lamin. polyester foil, metal side outside, cover. 100% under copper braid tinnedOuter sheathPVCCore numberMulticores (As client's requirement)Rated voltage BUScores: 250 V (not for high voltage purposes); supply cores: 500 V Testing voltage 1,5 kVMin. bending radius fixed 7,5 x d Min. bending radius moved15 x d Operat. temp. fixed min/max -40 °C / +80 °C Operat. temp. moved min/max -10 °C / +70 °C ColorOptionalApplicationas fieldbus cable for PROFIBUS (Process Field BUS) PA (Process Automation) systems, specifically for use in process automation as well as in hazardous areas to connect sensors and actuators, for fixed installation & limited flexible applications. Standard acc.to Profibus-Spec.: EN61158 & EN61784 (DIN19245 T3 & EN50170)
