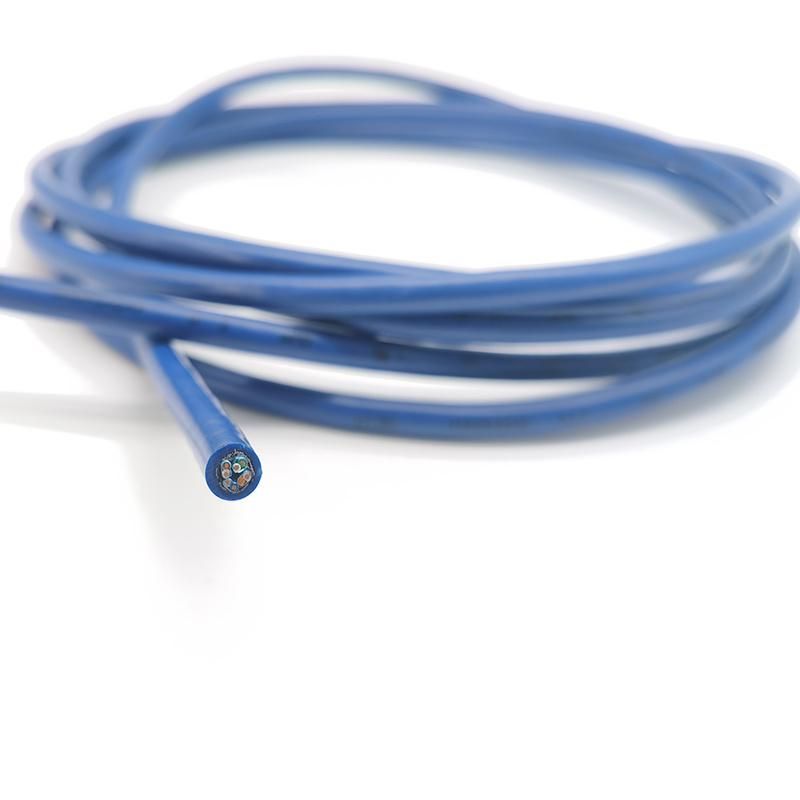

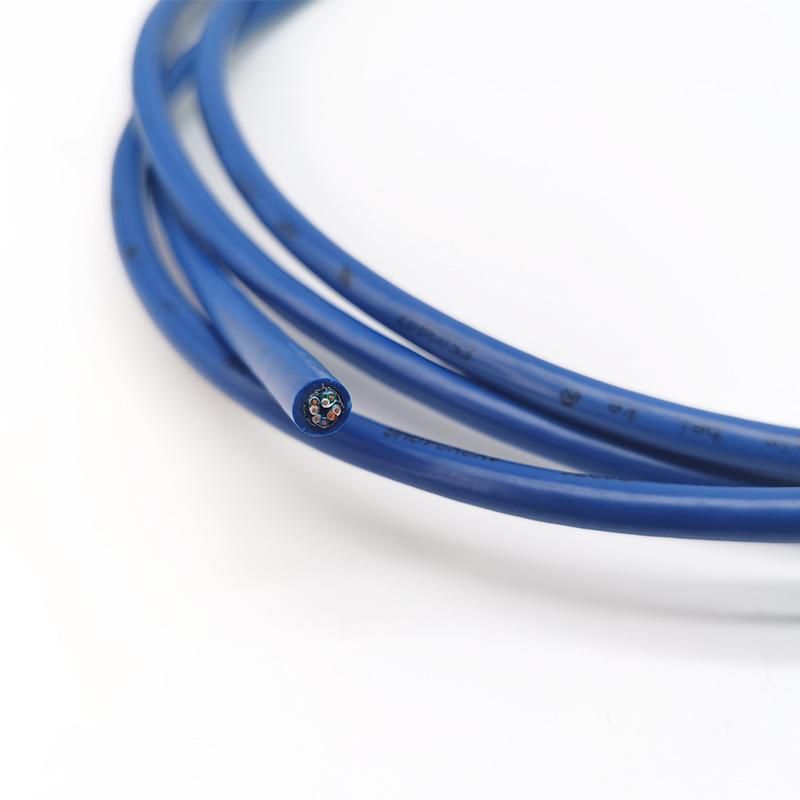

Li2ycy (TP) Cable for Fixed Installation and Flexible Applications Data Transmission Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：Li2YCY (TP) Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, CCC, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

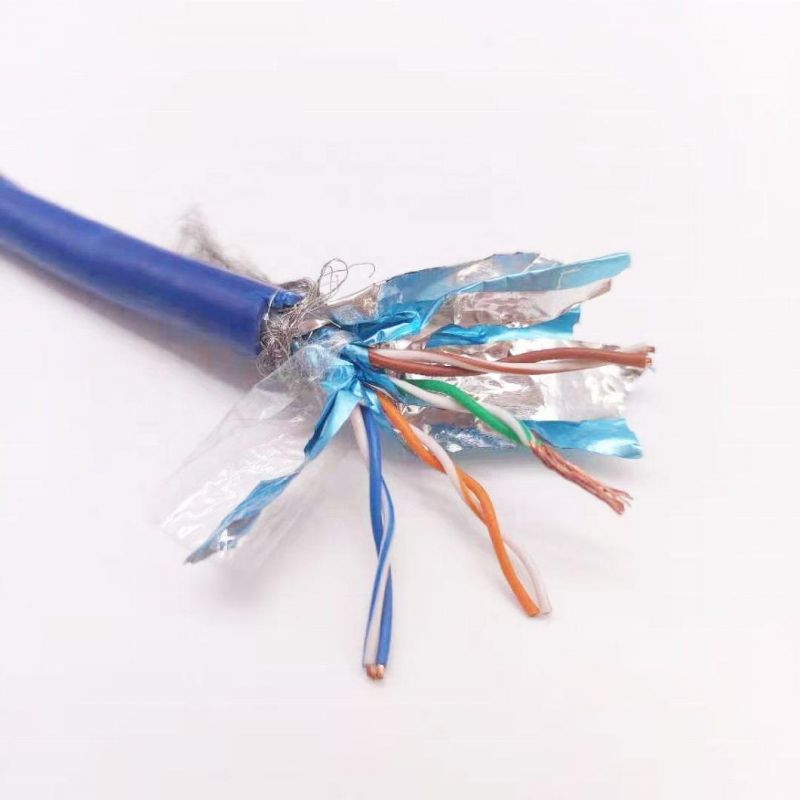

ItemLi2YCY (TP) Cable for Fixed Installation and Flexible Applications Data Transmission CableConductorBare copper stranded condutorInsulationPEStrandingPairs stranded in layersShield Copper braid tinned; coverage approx. 85% Outer sheathPVCCore numberMulticores (As client's requirement)Rated voltage 250 V Testing voltage Core/core: 2 kV; core/shield: 1 kVMin. bending radius fixed 10 x d Min. bending radius moved15 x d Operat. temp. fixed min/max -30 °C / +80 °C Operat. temp. moved min/max -5 °C / +70 °C ColorOptionalApplicationData transmission cable, control and connecting cable especially for cabling with high data transfer rates up to 10 Mb/s, for lossless data and signal transmission. For fixed laying and flexible applications with undefined cable routing and without tensile stress. Suitable for use in dry and humid rooms. Outdoor use only with UV-protection, no laying underground*.
