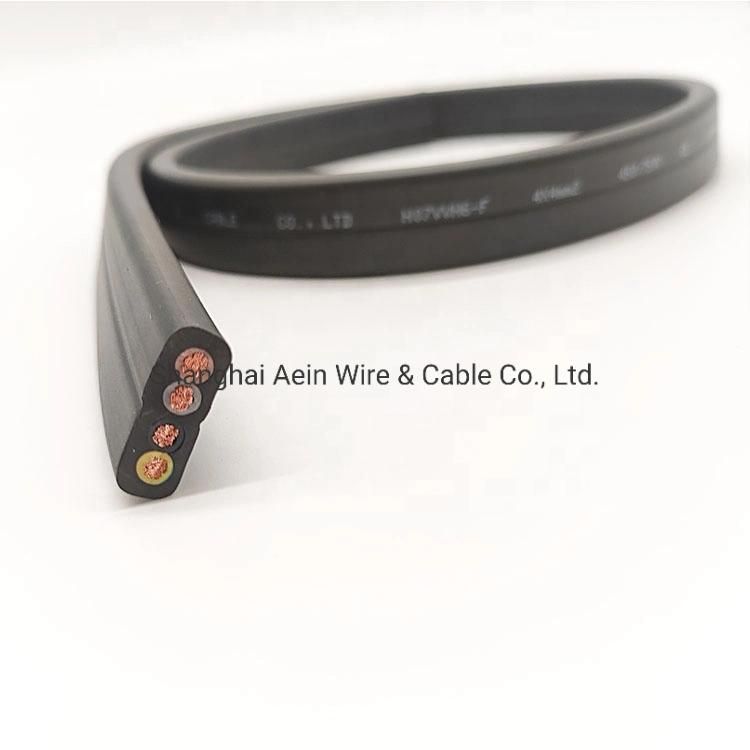

Flat Cable H05vvh6-F H07vvh6-F Cold-Flexible Flat Cable for Cranes and Conveyors

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Crane and Conveyor Systems
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：Flat Cable H05VVH6-F H07VVH6-F
  • Material Shape：Round Wire
  • Range of Application：Crane and Conveyor Systems
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemFlat Cable H05VVH6-F H07VVH6-FConductorCopper wire bareInsulationPVCOuter sheathPVCVoltage Ratingup to 1,0mm2 : 300/500 V
from 1,5mm2 : 450/750 VTest Voltage3000VTemperaturefixed installation: -30°C to + 70°C
flexible application: -5°C to + 70°CColorOptionalApplicationThe harmonized flat cable H05VVH6-F H07VVH6-F is suitable indoors as a control and link-up cable for crane and conveyor systems as well as for moving machine parts. In comparison to round cables these closely laid cores achieve a considerable smaller bending radius. The flat cable can be installed in dry and damp rooms. The cold-flexible PVC outer sheath enables it to be even used at low temperatures. The cable is also suitable to be installed in lifts and hoists so long as the suspension length does not exceed 35 m and the travelling speed does not exceed 1,6 m/s. The outer sheath is extensively resistant to oil, fat, acid and lye.
