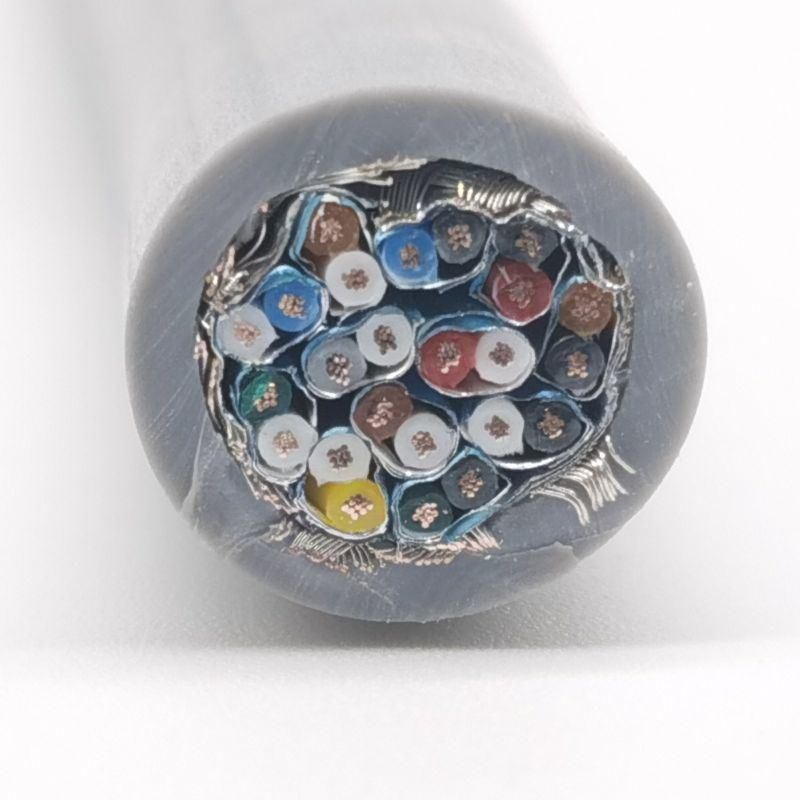

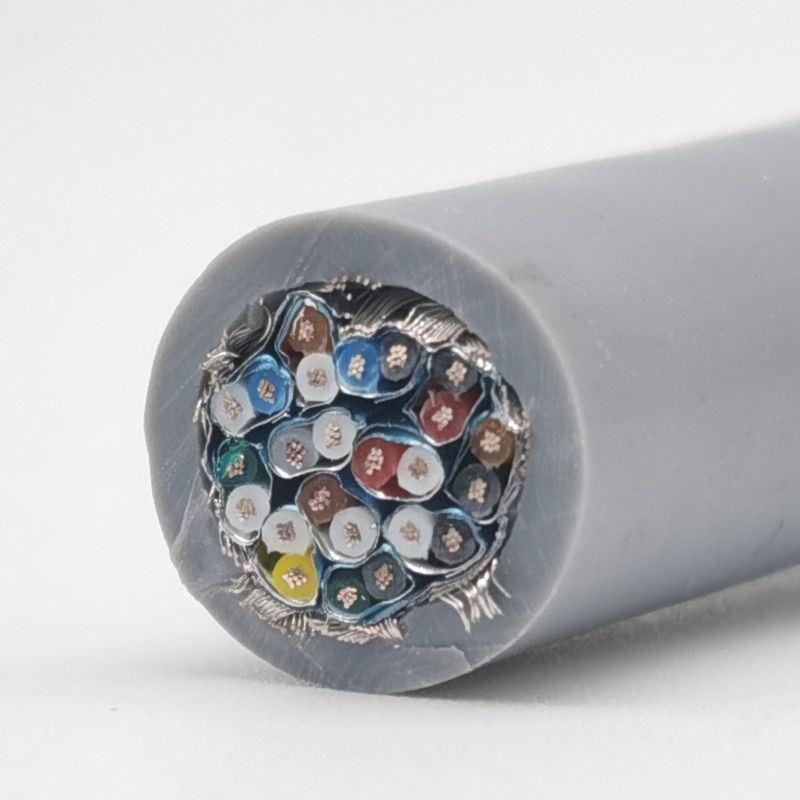

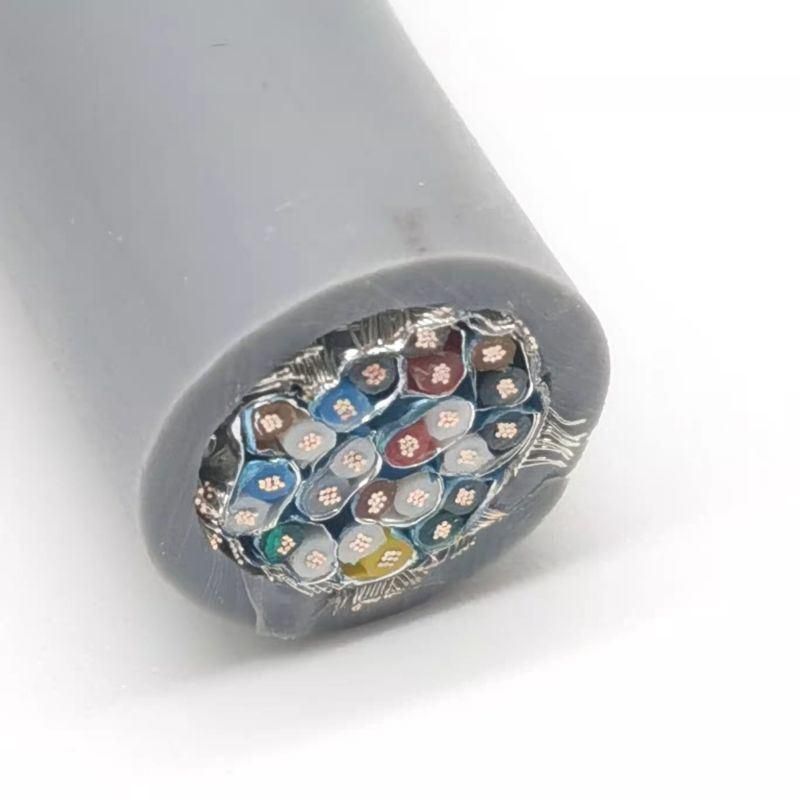

Re-2y (St) Yv Pimf Cable for Data Processing and Process Control 300V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：RE-2Y(St)Yv PiMF Cable
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemRE-2Y(St)Yv PiMF Cable For Data Processing And Process Control 300VConductorCopper wire bare, strandedInsulationPEWrappingFoilScreenPlastic-coated aluminium foil (St), approx. overlap 25%Outer sheathPVCOperating Voltage300 V Test Voltage2 kVTemperature RangeFlexible -5°C to +50°C
Fixed -40°C to +70°CMinimum Bending RadiusFlexible 15x Outer-Ø
Fixed 7.5x Outer-ØColorOptionalApplicationComputer cables are used in data processing and process control. The individual screening of the pairs ensures good crosstalk attenuation values. When permanently installed, suitable for use in dry and damp rooms, outdoors and underground.
