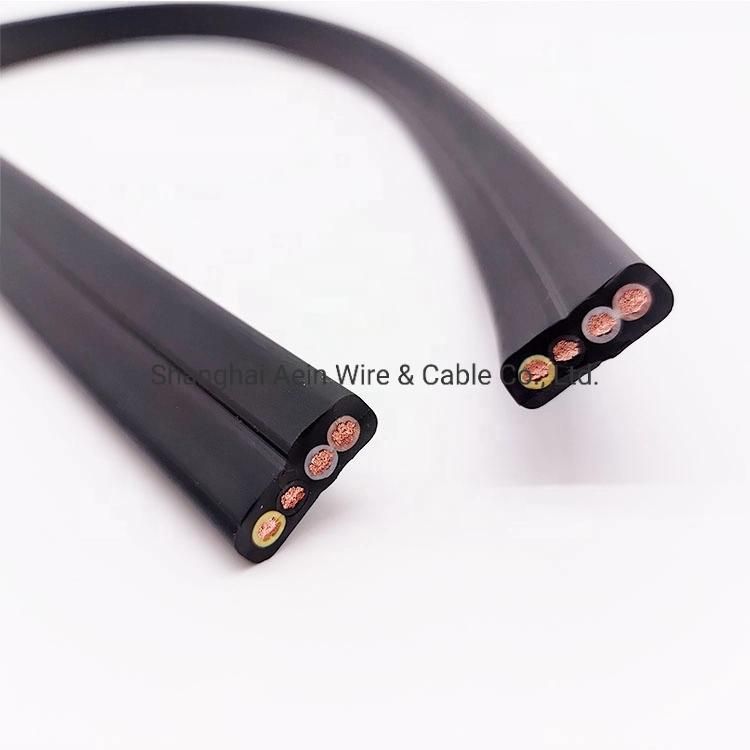

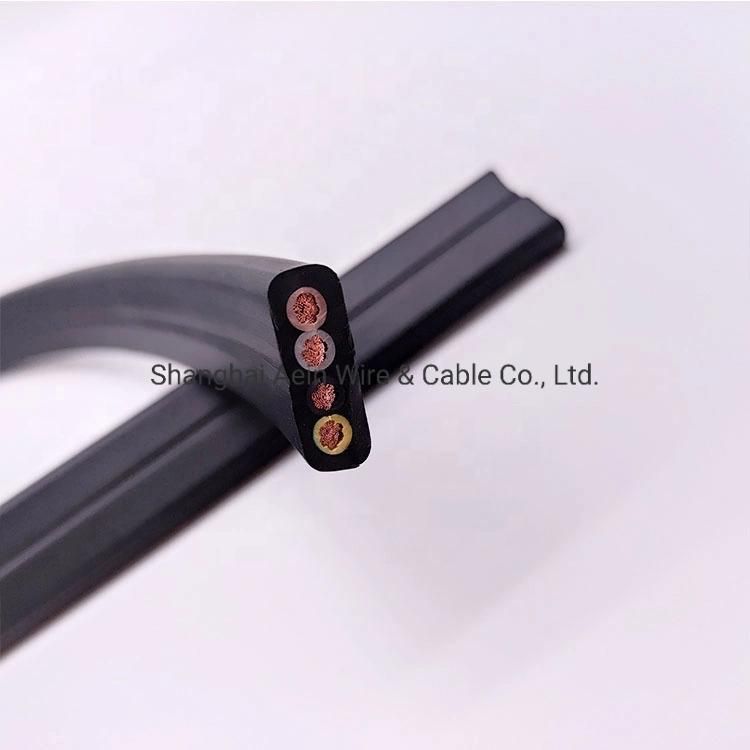

Flat Cable Neoprene-731 Robust and Weather Resistant for Cranes and Conveyors

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Crane and Conveyor Systems
  • Conductor Material：Copper
  • Sheath Material：Polychloreprene
  • Insulation Material：Rubber

Base Info

  • Model NO.：Flat Cable Neoprene-731
  • Material Shape：Round Wire
  • Range of Application：Crane and Conveyor Systems
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemFlat Cable Neoprene-731ConductorCopper wire bareInsulationRubberOuter sheathPolychlorepreneVoltage Rating 300/500 VTest Voltage3000VTemperaturefixed installation: -40°C to +80°C
flexible application: -25°C to +80°CColorOptionalApplicationFlat cable neoprene-731 is suitable as a control and connection cable for cranes and conveyors on building sites, container goods railway stations and dockyards where operating conditions are rough. The closely packed cores lying side by side achieve a much tighter bending radius in comparison to round cables. The robust outer sheath is extensively resistant to oil, fat, acid and lye.
