• Model NO.：RVFAV , X1AV , LX1AV
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, SGS
• Model：U-1000 Rvfv, Xav
• Brand：Hongda
• Standard：NF C 32-322, IEC60502-1
• Rated Voltage：0.6,1 Kv
• Transport Package：Drum or as Customer Require
• Specification：1.5mm2 to 400mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：20km,Day

Basic Info.

Model NO. RVFAV / X1AV / LX1AV Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, SGS Model U-1000 Rvfv, Xav Brand Hongda Standard NF C 32-322, IEC60502-1 Rated Voltage 0.6/1 Kv Transport Package Drum or as Customer Require Specification 1.5mm2 to 400mm2 Trademark Hongda Origin China HS Code 8544492100 Production Capacity 20km/Day

Product Description

ARMIGRON-F RVFAV / X1AV / LX1AV - 0.6/1kV PVC Single Core Cable

APPLICATIONS OVERVIEW

Reinforced cables with steel tape for low voltage power distribution.

Maximum temperature rating of the conductor: +90 C

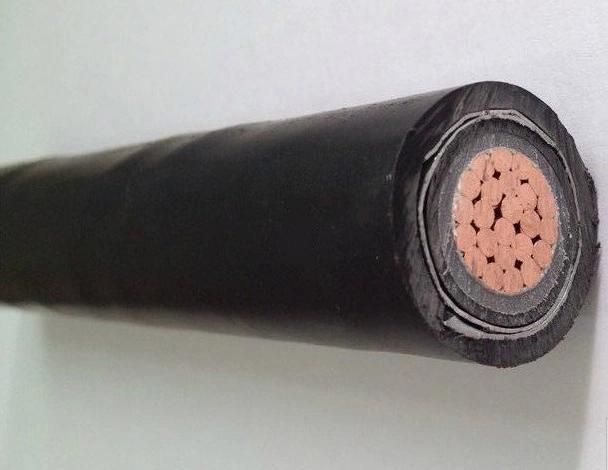

RVFAV / X1AV / LX1AV CABLE CONSTRUCTION

CONSTRUCTION:

1. CONDUCTOR: Copper or aluminium class 2 to IEC 60228
2. INSULATION: Cross-linked polyethylene, type XLPE to 60502-1.
3. INNER SHEATH: Polyvinyl chloride (PVC).
4. ARMOUR: Double aluminium tape.
5. SHEATH: Polyvinyl chloride (PVC) type ST2 to IEC 60502-1.

CHARACTERISTICS
Voltage Rating (Uo/U): 600/1000V
Test Voltage: 3.5 kV
Temperature Rating: -10°C to +60°C
Maximum Operating Temperature: +90ºC

Core Identification
2 core: Blue Brown
3 core: Black Brown Grey
3 core including earth: Blue Brown Green/Yellow

STANDARDS:

CONSTRUCTION	FIRE PERFORMANCE
IEC 60502-1	IEC 60332-1
	EN 60332-1
	IEC 60332-1-2
	EN 60332-1-2

Part No.	Core x Size (mm2)	Bedding (mm)	OD (mm)	Weight (kg/km)	Bending Radius (mm)
HDDL1085109	1x6	8,0	13,0	240	130
HDDL1085110	1x10	8,1	13,1	270	130
HDDL1085111	1x16	8,9	13,9	335	140
HDDL1085112	1x25	10,5	15,5	450	155
HDDL1085113	1x35	11,4	16,4	560	165
HDDL1085114	1x50	12,8	17,8	695	180
HDDL1085115	1x70	14,6	19,6	920	200
HDDL1085116	1x95	16,2	21,3	1180	215
HDDL1085117	1x120	17,9	23,0	1440	230
HDDL1085118	1x150	19,6	24,8	1725	250
HDDL1085119	1x185	21,6	26,8	2125	270
HDDL1085120	1x240	24,5	30,0	2715	300
HDDL1085121	1x300	26,9	32,5	3310	325
HDDL1085122	1x400	29,9	35,7	4210	360
HDDL1085123	1x500	34,4	40,6	5345	410
HDDL1085124	1x630	38,6	45,1	6820	455

Packing & Shipping:


FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

We are looking forward to your inquiry and nice cooperation.
