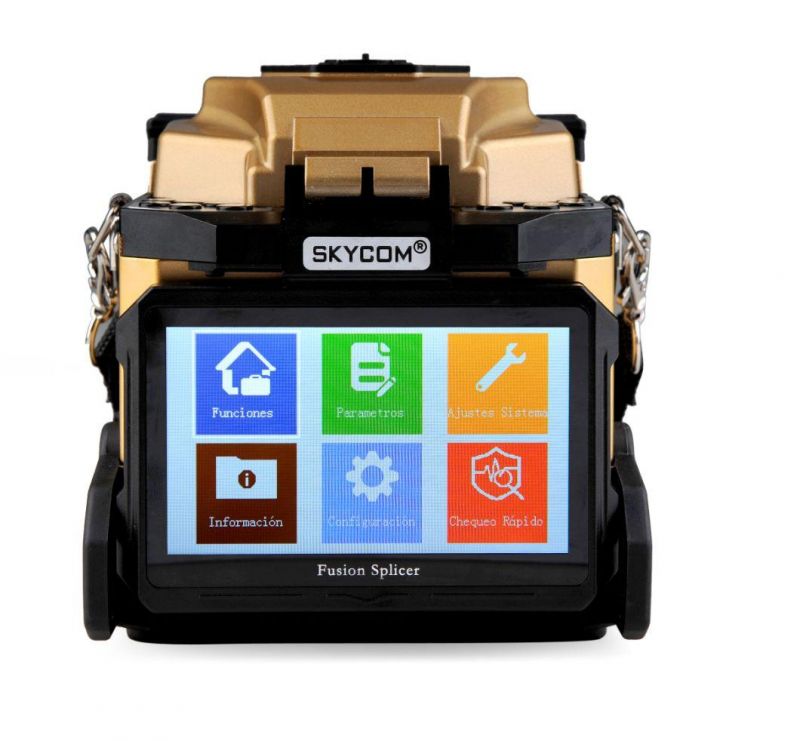

China Optical Fiber Fusion Splicer (T-308X)
Nanjing Tianxingtong Electronic Technology Co., Ltd.- Type：Fiber Splicer
- Certification：CE, RoHS, CCC, ISO
- Customized：Non-Customized
- Condition：Used
- Feature：Moistureproof
- Applicable Fibers：Sm, Mm, Nz-Ds, Edf, Pigtail, Rubber-Insulated Wire
Base Info
- Model NO.：T-308X
- Wavelength：1310± 20nm , 1550± 20nm
- Transport Package：CTN, Hard Carrying Case
- Specification：CE, SGS, ISO9001,
- Trademark：SKYCOM
- Origin：Nanjing, China
- HS Code：8515319900
- Production Capacity：500PCS,Month
Description
Basic Info.
Model NO. T-308X Wavelength 1310± 20nm / 1550± 20nm Transport Package CTN/ Hard Carrying Case Specification CE, SGS, ISO9001, Trademark SKYCOM Origin Nanjing, China HS Code 8515319900 Production Capacity 500PCS/MonthProduct Description
China Optical Fiber Fusion Splicer (T-308X)Applicable Fibers
SM, MM, NZ-DS, EDF
Average Splice Loss
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss
≥ 60dB
Tension Test
2.0N(200gf)(Standard)
Splicing Program
50 groups
Protection Sleeve Length
20mm, 40mm, 60mm
Language
Chinese, English
Environmental Conditions
-10~+50° C(operation temperature), 0~95% RH(humidity), 0~5000m(altitude)
Power Supply
AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC)
DC adaptor: 12V voltage 8AH
Dimensions
120(W)*120(D)*130(H)
Weight
1.29kg

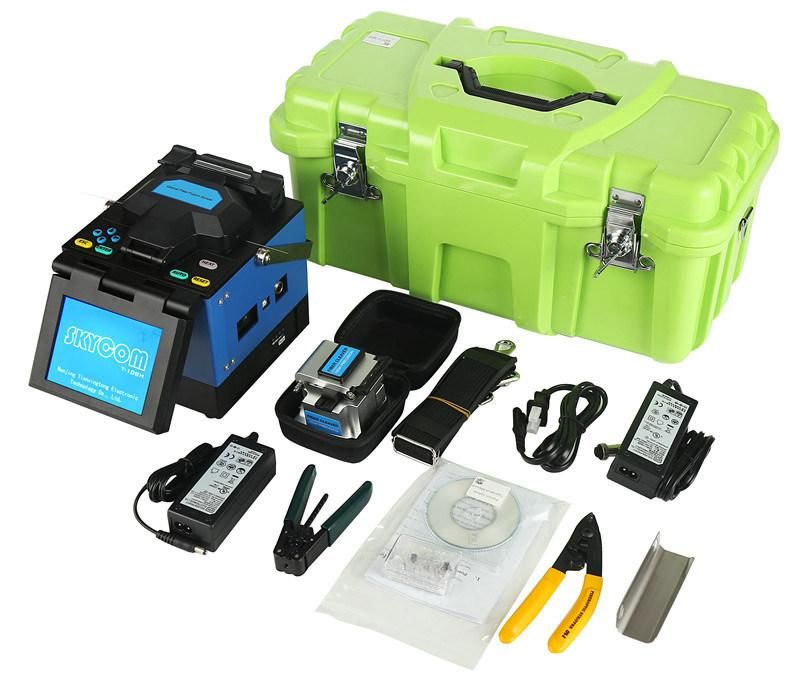

| No. | Item | Quantity |
| 1 | Machine (T-308) | 1 |
| 2 | Fiber Cleaver(601-1071) | 1 |
| 3 | Fiber Stripper | 1 |
| 4 | AC Adaptor(602-120500D) | 1 |
| 5 | Battery(603-1072) | 1 |
| 6 | Charger(602-126250W) | 1 |
| 7 | Spare Electrodes | 1 |
| 8 | Cooling Tray | 1 |
| 9 | Instruction CD | 1 |
| 10 | Special optical fiber fixture(multiple) | 7 |
| 11 | Rubber-insulated wire stripping pliers | 1 |
| 12 | Diagonal cutting pliers | 1 |
| 13 | The Fixture which is avoid the fiber in Rubber-insulated wire broken down | 1 |
| 14 | Alcohol bottle | 1 |
| 15 | Quick Reference Guide | 1 |
| 16 | Fusion Splicer carrying case with combination of tools | 1 |
| Applicable fibers | SM, MM, NZ-DS, EDF, Pigtail, Rubber-insulated wire Series |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | more than 60dB |
| Tension Test | 2.0N(200gf)(Standard) |
| Splicing Program | 50 groups |
| Protection Sleeve Length | 20mm, 40mm, 60mm |
| Language | Chinese, English |
| Environment Conditions | -10~+50º C(operation temperature) 0~95% RH(humidity), 0~5000m (altitude) |
| Power Supply | AC adaptor: 100~240V input voltage, 50/60 Hz; 12V, 5A output voltage(DC) DC adaptor: 12V voltage 8 AH |
| Dimensions | 155mm(W) * 165mm( D) * 150mm (H) |
| Net weight | 2.5kg |
| Gross weight | 2.8kg |
