• Model NO.：instrument cable
• Material Shape：Round Wire

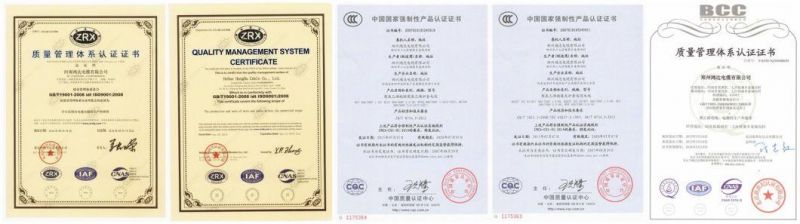

• Certification：ISO9001, CCC
• Brand：OEM

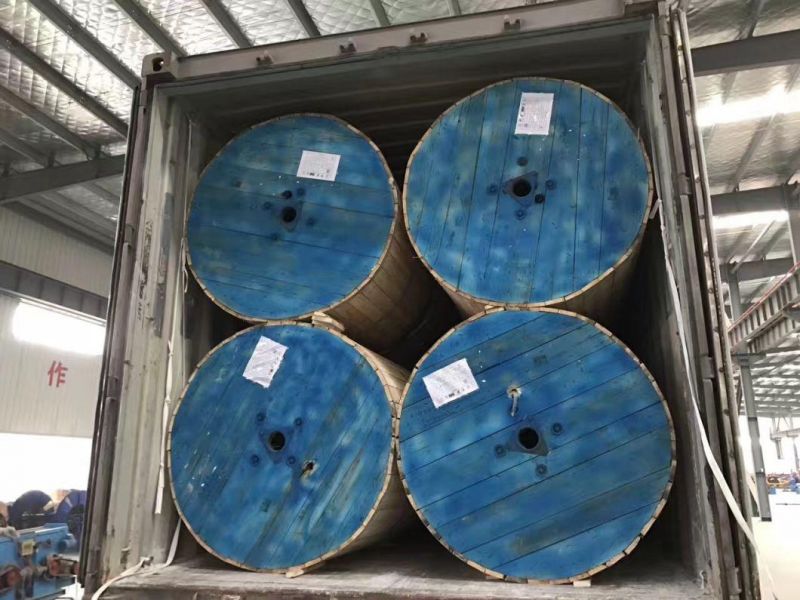

• Transport Package：Wooden Drum
• Specification：1.5mm to 50mm2
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：50 Kilometer,Month

CONDUCTORAnnealed copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm² multistranded(Class 2) to BS6360INSULATIONXLPE (Cross Linked Polyethylene), or PE (optional)PAIRINGTwo insulated conductors uniformly twisted together with a lay not exceeding 100mmCOLOUR CODESee technical informationBINDER TAPEPETP transparent tapeCOLLECTIVE SCREENAluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²INNER SHEATHLSZH(Low Smoke Zero Halogen) sheathAMOURGalvanized steel wire armourOUTER SHEATHLSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Fire resistant to IEC60331 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2SHEATH COLOURBlack or blue

Mechanical and Electrical Properties

Operating temperature: -20˚C up to + 90˚C( fixed installation) 0˚C to +50˚C(during operation )
Minimum bending radius: 6 x overall diameter

CONDUCTOR AREA SIZEMM20.50.50.751.01.5CONDUCTOR STRANDINGNO. X MM1 x 0.816 x 0.224 x 0.21 x 1.137 x 0.53CONDUCTOR RESISTANCE MAXOHM/KM36.839.726.518.212.3INSULATION RESISTANCE MINGOHM/KM55555CAPACITANCE UNBALANCE AT 1 KHZ(PAIR TO PAIR SCREEN)PF/250M  250  MAX. MUTUAL CAPACITANCE @ 1 KHZ FORNON OS OR OS CABLES (EXCEPT ONE-PAIR AND TWO-PAIRS)PF/M115115115115120MAX. MUTUAL CAPACITANCE @ 1 KHZ IS/OS CABLES (INCLUDE 1 PAIR AND 2 PAIR)PF/M7575757585MAX. L/R RATIO FOR ADJACENT CORES(INDUCTANCE/ RESISTANCE)ΜH/OHM2525252540TEST VOLTAGECORE TO COREV1000100010001000CORE TO SCREENV10001000100010001000RATED VOLTAGE MAXV300/500300/500300/500300/500300/500NOMINAL CONDUCTOR CROSS-SECTIONAL AREANOMINAL THICKNESS OF INSULATIONNOMINAL THICKNESS OF BEDDINGNOMINAL DIA. OVER BEDDINGNOMINAL THICKNESS OF ARMOURNOMINAL THICKNESS OF SHEATHNOMINAL DIA. OF CABLEAPPROX. WEIGHTMM2MMMMMMMMMMMMKG/KM0.50.50.85.50.91.39.92000.50.50.86.80.91.311.22600.50.51.110.90.91.415.54600.50.51.214.41.251.620.17900.50.51.216.51.251.622.211000.50.51.318.81.61.725.412800.50.51.322.31.61.829.115200.50.51.528.51.6235.721000.50.60.86.20.91.310.62500.50.60.87.60.91.3123000.50.61.112.40.91.517.25600.50.61.216.51.251.622.29700.50.61.319.21.61.725.812400.50.61.321.71.61.828.516400.50.61.526.41.61.933.417700.50.61.733.422.141.627700.750.60.86.70.91.410.92800.750.60.98.40.91.412.83300.750.61.213.81.251.619.37500.750.61.318.41.61.824.312600.750.61.321.11.61.92714800.750.61.524.41.6231.418900.750.61.729.522.13724400.750.6237.62.52.447.3321010.60.86.60.91.31129010.60.880.91.412.634510.61.213.51.251.51979010.61.217.71.251.723.6131010.61.320.61.61.827.4174010.61.523.81.61.830.6204010.61.528.41.6235.6218010.6236.622.24535001.50.60.87.50.91.411.93201.50.60.99.30.91.514.14201.50.61.215.61.251.621.69401.50.61.320.91.61.827.415001.50.61.524.61.61.931.219701.50.61.527.81.6235.824001.50.61.733.722.242.331701.50.62432.52.553.25020
