• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC, SGS
• Brand：Hongda
• Class of Conductor：5 or 6
• Rated Voltage：450,750 V
• Manufacture Standard：IEC 60227
• Transport Package：100m Per Roll, 100FT Per Roll
• Specification：0.75mm to 2.5mm2
• Trademark：Hongda Twisted cable
• Origin：China
• HS Code：8544492900
• Production Capacity：40km,Day

Basic Info.

Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC, SGS Brand Hongda Class of Conductor 5 or 6 Rated Voltage 450/750 V Manufacture Standard IEC 60227 Transport Package 100m Per Roll, 100FT Per Roll Specification 0.75mm to 2.5mm2 Trademark Hongda Twisted cable Origin China HS Code 8544492900 Production Capacity 40km/Day

Product Description

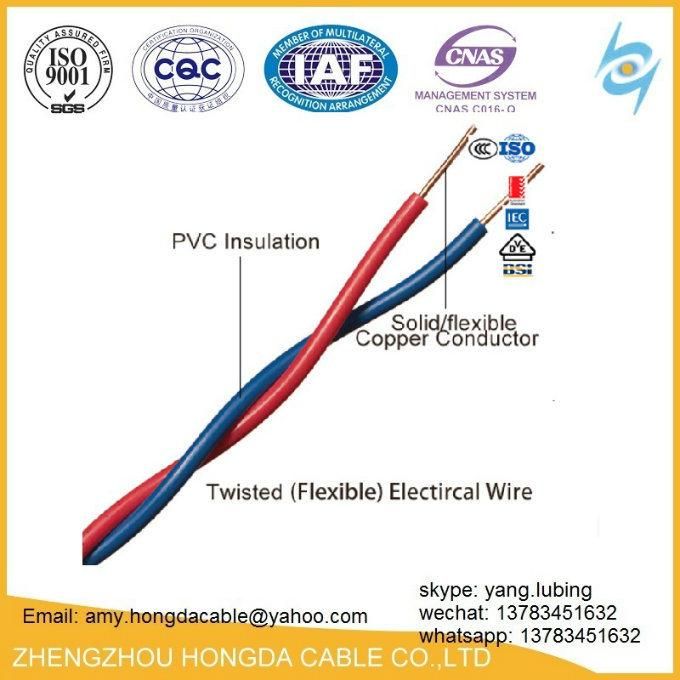

copper Red Green Yellow Black Blue PVC house wiring electric twist flat wire cable






Specifications

1.Certificate: SGS,ISO,CCC
2.Standard: IEC60227
3.High quality

Applications:
The product is fit for ac rated voltage 450/750 and below of domestic electrical applicances of smaller size motoriace tools of instruments of varous meters and motorized lighting installations.
This prduct is suitable to be used in household appliances ,electric tools and lighting in home , office and similar indoor place where request flexible wire

Technological property:
1)If finished insulation core and finished power line is pot into warm water20+/-5 °c for an hour, they will be able to bear stipulated as soaked, soaked voltage test as stated in table.
2)Wire has excellent electric insulation property, mechanical property, non-inflammability. So it is safety and convenience in using the producters name. The model and the voltage should be cleany printed on the surface of the finished power line of insulation and sheath delivery requirements.

Nominal Area	Insulated Thickness	Sheathed Thickness	Approx. dia of cable	Cable approx weight	D.C Resisance Of conductor 20°C(Ω/km)	Least Insulates resistance
mm²	mm	mm	mm	(kg/km)	(Ω/km)	mΩ/km
2×0.75	0.6	0.8	6.6	50.8	39.0	0.011
2×1.0	0.6	0.8	7.0	59.2	19.5	0.010
2×1.5	0.7	0.8	8	78.6	13.3	0.010
2×2.5	0.7	1.0	9.4	114.1	7.98	0.009
