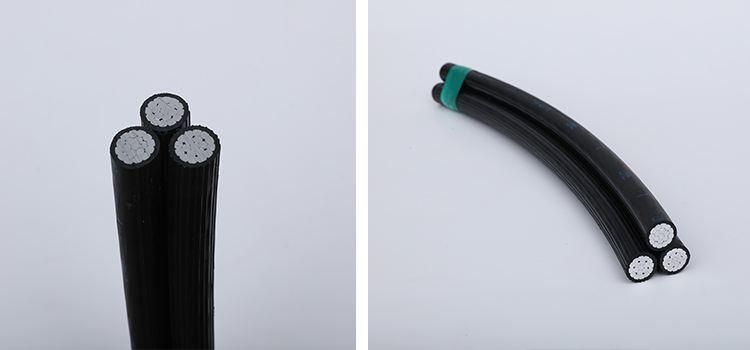

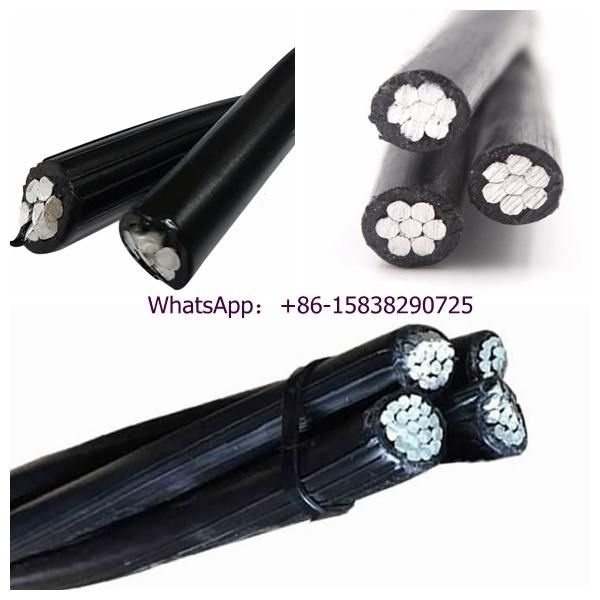

0.6/1 Kv X-90 XLPE Insulated Aluminium Conductors Aerial Bundled Cable

Henan Hongda Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Free Air
  • Conductor Material：Aluminum
  • Sheath Material：No Jacket
  • Insulation Material：XLPE,PE

Base Info

  • Model NO.：AERIAL BUNDLE CABLE
  • Material Shape：Round Wire
  • Range of Application：Overhead
  • Certification：ISO9001, CCC
  • Brand：Hongda
  • Cores：2core, 4core
  • Standard：XLPE Insulated Cable (ABC) to AS,NZS 3560.1

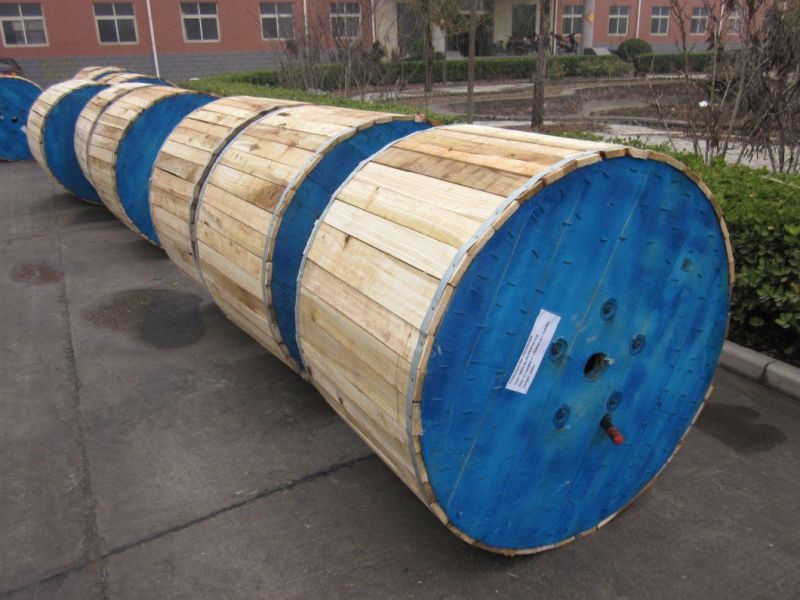

  • Transport Package：on The Drum or on The Pallent
  • Specification：25mm2 to 150mm2
  • Trademark：hongda
  • Origin：Henan
  • HS Code：8544492100
  • Production Capacity：30000m,Day

Description

Installed cables:6D ≤ 50 mm2
9D > 50 mm2
4D Single CoreDuring installation:9D ≥ 50 mm2
14D > 50 mm2
6D Single CoreInstallation conditions:In free air
Overhead aerial

CHARACTERISTICS

CableNom. Area mm²No. & Dia. of Wires No./mmNom. Dia. mmNom. Insulation Thickness mmMax. Dia. over Ins. mmMin. Overall Dia. mmMax. Overall Dia. mmApprox. Mass Kg/100mABC25A2C2C257/2.2061.39.217.419.320ABC35A2C2C357/2.5871.310.319.5721.626ABC50A2C2C507/2.9681.511.922.624.935ABC95A2C2C9519/2.5211.31.715.930.233.368ABC25A4C4C257/2.2061.39.221.223.440ABC35A4C4C357/2.5871.310.323.626.152ABC50A4C4C507/2.968.21.511.927.230.170ABC70A4C4C7019/2.169.81.513.631.134.496ABC95A4C4C9519/2.5211.61.715.936.440.32135ABC120A4C4C12019/2.86131.717.540.244.3166ABC150A4C4C15019/3.1814.41.718.943.347.82020.6/1 Kv X-90 XLPE Insulated Aluminium Conductors Aerial Bundled Cable
0.6/1 Kv X-90 XLPE Insulated Aluminium Conductors Aerial Bundled Cable


 0.6/1 Kv X-90 XLPE Insulated Aluminium Conductors Aerial Bundled Cable

0.6/1 Kv X-90 XLPE Insulated Aluminium Conductors Aerial Bundled Cable
