• Model NO.：exav cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：Eaxvb 1kv
• Brand：OEM
• Installation：Cable Channel, Tube, Underground, Open Air
• Transport Package：500m or 1000m Per Drum, or Customized
• Specification：3x16+1x10
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：15km,Day

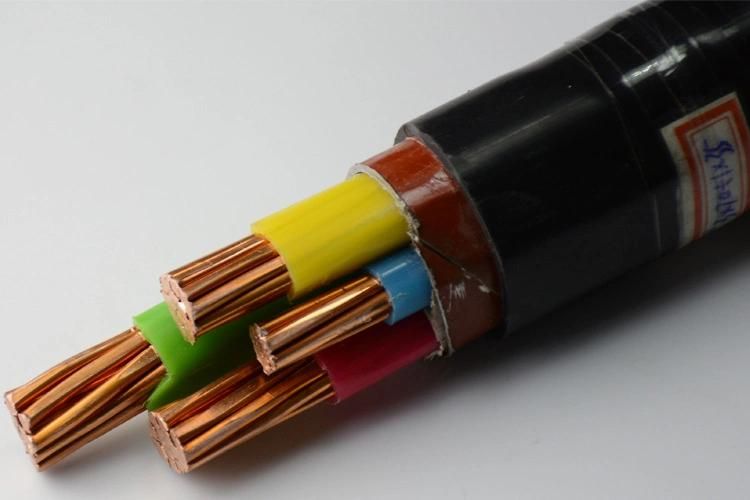

Composition conductorCopper Conductor flexibility class 2Conductor shapeRound, joined togetherInsulationXLPEReinforcementSteel tapeOuter jacketPVC
MEASURING CHARACTERISTICSNumber of conductors4Diameter conductor16mm2Average thickness of the insulation (mm)0.7mmThickness of the steel tape0.5mmSection of the reduced neutral10mm2Approximate weight1260kg/km
ELECTRIC CHARACTERISTICSNominal voltage Uo / U (Um)0.6 / 1 kVOperating voltage1kVPermissible current in open air100APermissible current (underground)120AOhmic resistance of the armament2.0 Ohm / km
USE CHARACTERISTICS
Chemical resistance Average
Non-fire-spreading: NBN C 30-004-F2
Maximum conductor temperature in operation: 90 ° C
Operating temperature, range: -5 .. 60 ° C

Vibration resistance Average
Bending radius at placement: 15 (xD)
Minimum temperature at installation: 5 ° C
