H05vvd3h6-F PVC Insulation and PVC Sheathed High Quality Durable Flat Travelling Elevator Cable Flexible Electric Wire
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：H05VVD3H6-F
- Material Shape：Flat Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Color：Black Red Yellow, According to Voltage Level
- Whether It Is Environmentally Friendly：Yes
- Whether Quality Inspection：Provide Inspection Certificate
- Standard：Customized According to Specified National Standar
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Transport Package：Standard Export Packaging
- Specification：International General Specifications
- Trademark：Fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：100000,Day
Description
Application and Description
These cables are generally used in crews of, elevators for people and heavy burdens, and swift conduct parts of machines.They are applicable for all control, measure and telecommunication systems and are suitable for dry and humid rooms.
Standard and Approval
- <HAR> EN 50214
- HD 359 S3
- IEC 60332-1

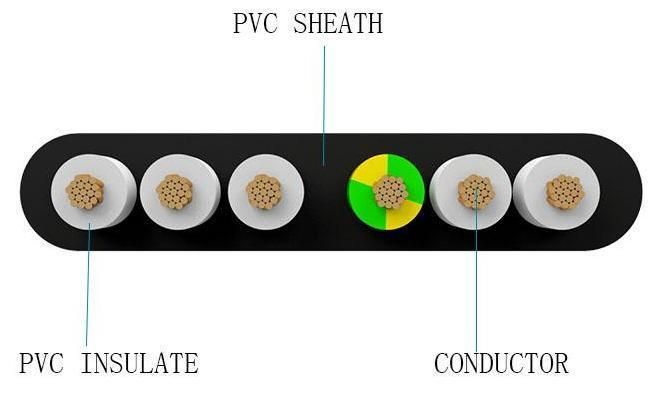

Cable Construction
| Bare copper strand conductor acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class 5/6 |
| PVC T12 core insulation |
| Color coded to VDE 0293-308, >6 wires black with white numerals with green/yellow wire |
| Black PVC TM 2 sheath |
Technical Characteristics
| WORKING VOLTAGE | 300/500 V |
|---|---|
| TEST VOLTAGE | 2000V |
| MINIMUM BENDING RADIUS | 10 × Ø |
| FLEXING TEMPERATURE | -30 ºC to +70 ºC |
| STATIC TEMPERATURE | -40 ºC to +70 ºC |
| FLAME RETARDANT | IEC 60332-1 |
| INSULATION RESISTANCE | 350 MΩ x km |
Cable Parameter
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA | NOMINAL OVERALL DIMENSION | NOMINAL COPPER WEIGHT | NOMINAL WEIGHT |
|---|---|---|---|---|
| # X MM² | MM | KG/KM | KG/KM | |
| 18(24/32) | 20 x 0.75 | 61.8 x 4.2 | 131 | 462 |
| 18(24/32) | 24 x 0.75 | 72.4 x 4.2 | 157 | 546 |
| 17(32/32) | 12 x 1 | 41.8 x 4.3 | 105 | 330 |
| 17(32/32) | 14 x 1 | 47.8 x 4.3 | 122 | 382 |
| 17(32/32) | 18 x 1 | 57.8 x 4.3 | 157 | 470 |
| 17(32/32) | 24 x 1 | 74.8 x 4.3 | 210 | 617 |
