• Model NO.：XHHW-2
• Material Shape：Round Wire
• Range of Application：in Conduit or Recognized Raceways
• Certification：ISO9001, CE, UL, CCC
• Brand：Boan
• Code Name：Xhhw-2
• Conductor：Aluminum Alloy
• Insulation：Xlp
• Rated Voltage：600,1000V
• No of Cores：1
• Size：6AWG ~ 1000kcmil
• Transport Package：Drums
• Specification：Aluminum Alloy , XLP
• Trademark：Dingan
• Origin：China
• HS Code：8544492100
• Production Capacity：25000 Kilometers Per Year

Basic Info.

Model NO. XHHW-2 Material Shape Round Wire Range of Application in Conduit or Recognized Raceways Certification ISO9001, CE, UL, CCC Brand Boan Code Name Xhhw-2 Conductor Aluminum Alloy Insulation Xlp Rated Voltage 600/1000V No of Cores 1 Size 6AWG ~ 1000kcmil Transport Package Drums Specification Aluminum Alloy / XLP Trademark Dingan Origin China HS Code 8544492100 Production Capacity 25000 Kilometers Per Year

Product Description

Product Description
XHHW-2 is intended for use as general purpose wiring for up to 600 volt rated services in air conduit or other recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code at a maximum conductor temperature of 90 °C in wet or dry locations.
Compact stranded 8000 Series aluminum alloy conductor. Insulation is an abrasion, moisture, heat and sunlight resistant black cross-linked polyethylene.
Cable can be installed without pulling lubricant.
CT rated available when requested on sizes 1/0 AWG and larger.

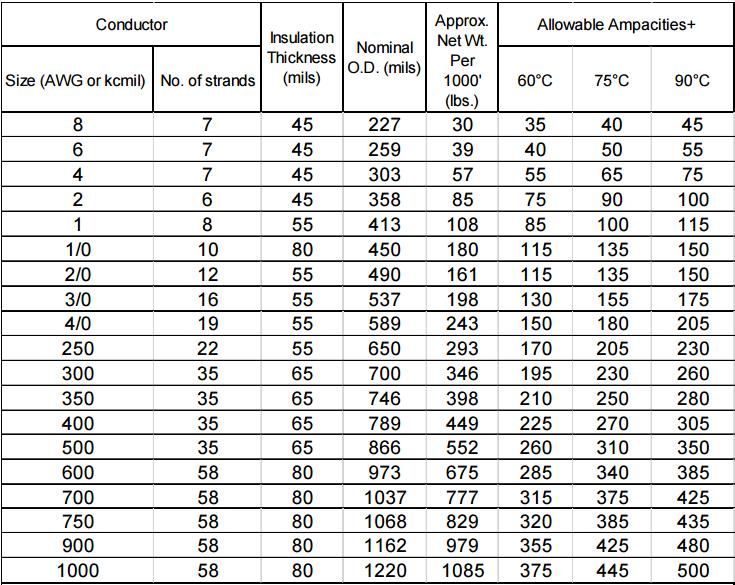

Technical Data

• 600 Volt. AlumaFlex® Aluminum Alloy (AA-8176) Conductor.
• Cross-linked Polyethylene (XLP) Insulation.
• High-Heat and Moisture Resistant.
• Sunlight Resistant in Black Sizes 2 AWG and Larger.

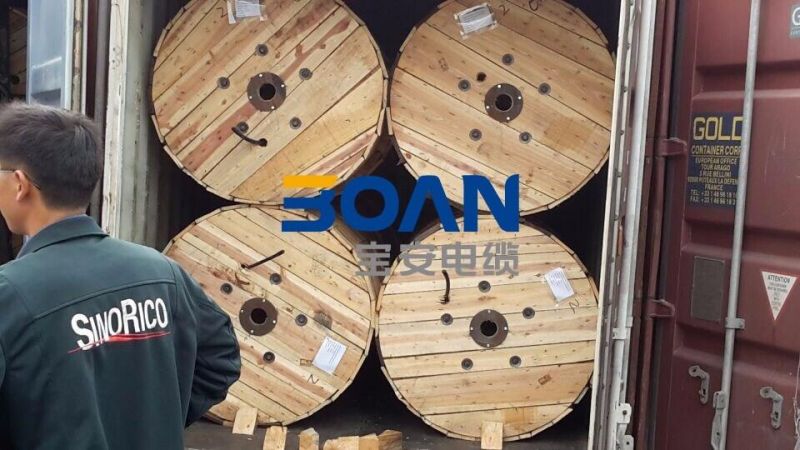

Packaging Information:
Fumigated Steel-Wooden Drum/Wooden Drum

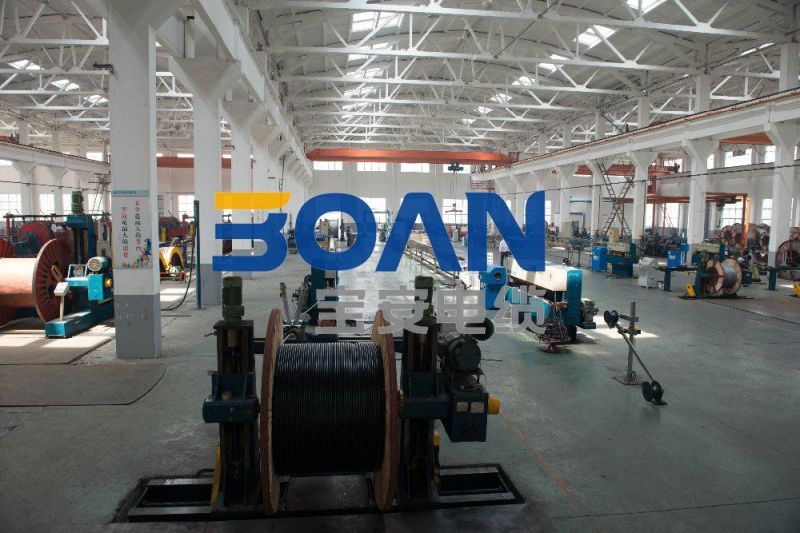

Company Introduction
