• Model NO.：XHHW-2
• Material Shape：Round Wire
• Range of Application：-
• Certification：ISO9001, CE, UL, CCC
• Brand：Boan
• Code Name：Xhhw-2
• Rated Voltage：600,1000V
• Conductor：Copper
• Insulation：Xlp
• No. of Cores：1
• Size：14 AWG ~ 1000 Kcmil
• Standard：UL 44
• Transport Package：Drums
• Specification：Copper,XLP
• Trademark：Dingan
• Origin：China
• HS Code：8544492100
• Production Capacity：25000 Km Per Year

Basic Info.

Model NO. XHHW-2 Material Shape Round Wire Range of Application - Certification ISO9001, CE, UL, CCC Brand Boan Code Name Xhhw-2 Rated Voltage 600/1000V Conductor Copper Insulation Xlp No. of Cores 1 Size 14 AWG ~ 1000 Kcmil Standard UL 44 Transport Package Drums Specification Copper/XLP Trademark Dingan Origin China HS Code 8544492100 Production Capacity 25000 Km Per Year

Product Description

Product Description

XHHW-2 conductors are primarily used in conduit or other recognized raceways for services, feeders, and branch circuit wiring.

It may be used in wet or dry locations at temperatures not to exceed 90°C.

XHHW-2 copper conductors are annealed (soft) copper. Insulation is an abrasion, moisture, and heat resistant cross-linked polyethylene (XLP).

Voltage rating for XHHW-2 conductors is 600 volts

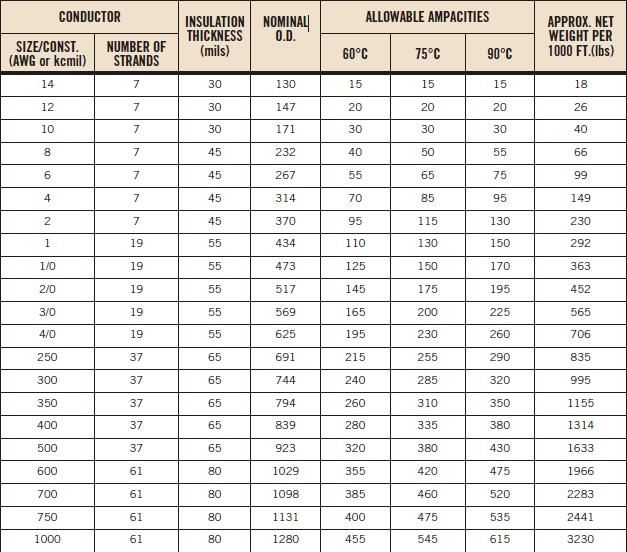

Technical Data

Sizes 14, 12, and 10 AWG available in black, white, red, blue, yellow, green, orange, brown, purple, and gray.

Conductor sizes 2 AWG and larger listed and marked sunlight resistant in black only.

XHHW-2 copper conductors are also available in sizes 1/0 AWG and larger rated for cable tray use and sunlight resistant.
Packaging Packaging & Shipping

Fumigated Steel-Wooden Drum/Wooden Drum
