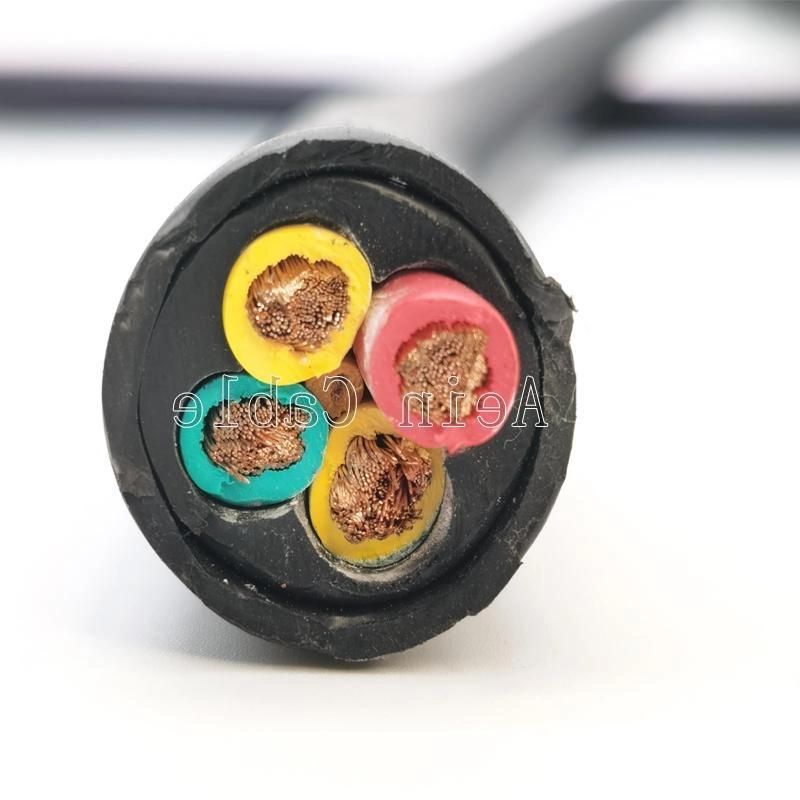

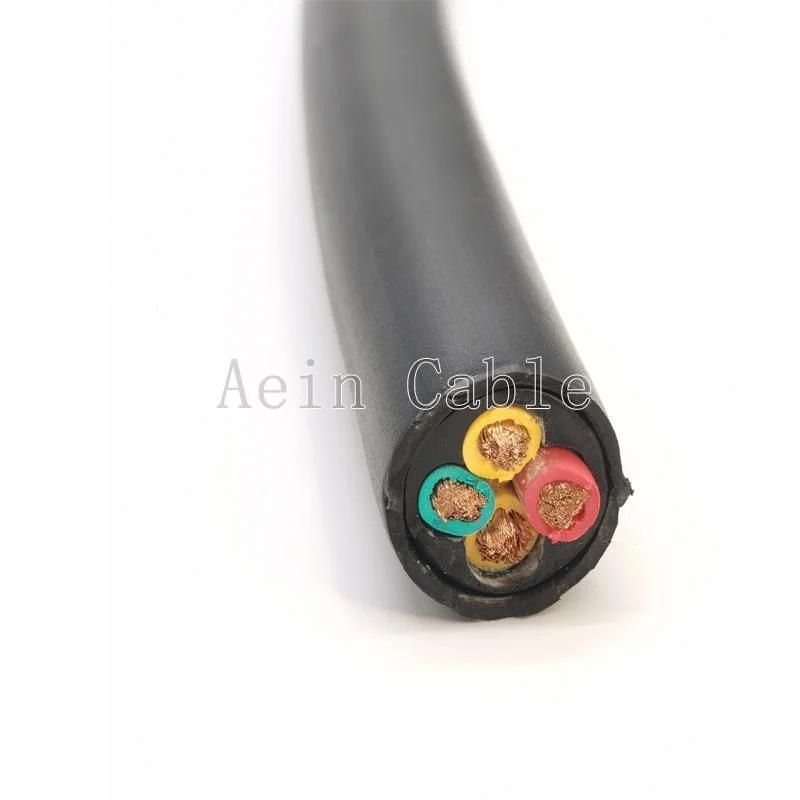

Lsoh-C Cable Polyolefin Sheath Power and Control Cable 0, 6/1kv 1, 5 mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Polyolefin
  • Insulation Material：Special Compound
  • Material Shape：Round Wire

Base Info

  • Model NO.：LSOH-C Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemLSOH-C Cable Polyolefin Sheath Power and Control Cable Conductor class acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5ConductorBare copper strandInsulationSpecial compoundShieldBare copper braid, coverage approx. 85 %Outer SheathPolyolefinCore NumberMulti-coresTemperature rangeOperat. temp. fixed min/max -40 °C / +70 °C
Operat. temp. moved min/max -25 °C / +70 °CNominal Voltageon 1 mm²: Uo/U 300/500 VHalogen freeacc. to IEC 60754-1Smoke densityacc. to IEC 61034-2Burning behavior Self-extinguishing and flame retardant acc. to IEC60332-1Standard Similar to DIN VDE 0250ColorOptionalApplicationPower and control cable for trolley systems, transfer lines, machine-tools, on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms and for outdoor use.
