• Model NO.：Gjsfjbv
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001
• Brand：OEM
• Sheath Material：PVC
• Keywords1：Fiber Optic Cable
• Keywords2：Gjsfjbv
• Keywords3：Fiber Cable
• Keywords4：Optical Fiber Cable
• Trademark：YDA
• Origin：Ningbo, China
• HS Code：3901100001
• Production Capacity：4, 500km,Month

Basic Info.

Model NO. Gjsfjbv Core Multicore Certification RoHS, UL, CE, ISO9001 Brand OEM Sheath Material PVC Keywords1 Fiber Optic Cable Keywords2 Gjsfjbv Keywords3 Fiber Cable Keywords4 Optical Fiber Cable Trademark YDA Origin Ningbo, China HS Code 3901100001 Production Capacity 4, 500km/Month

Product Description

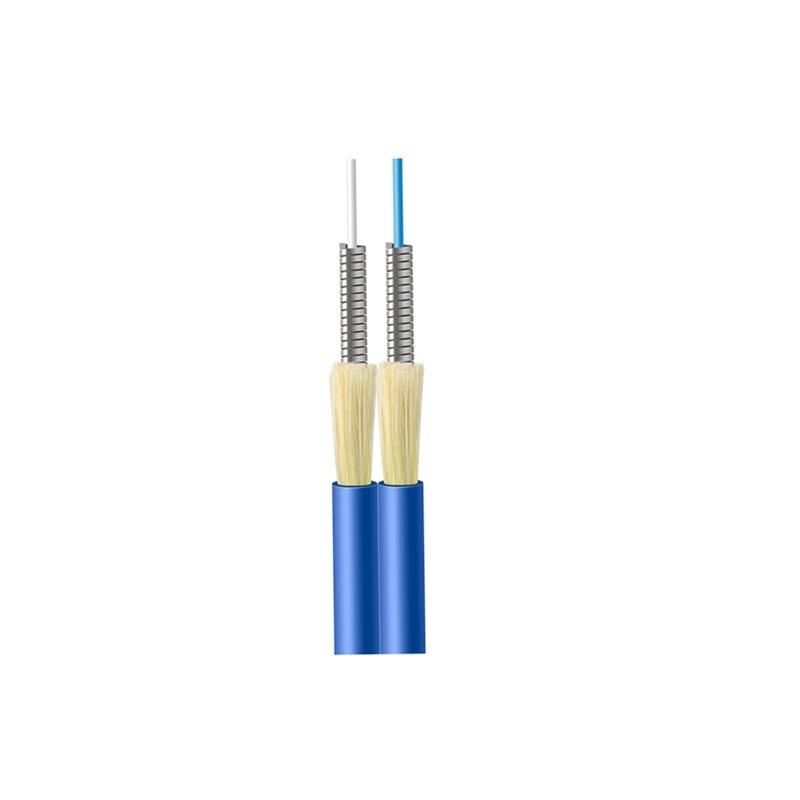

Gjsfjbv Indoor Single Mode 2 Core Duplex Optical Fiber Cable










Description

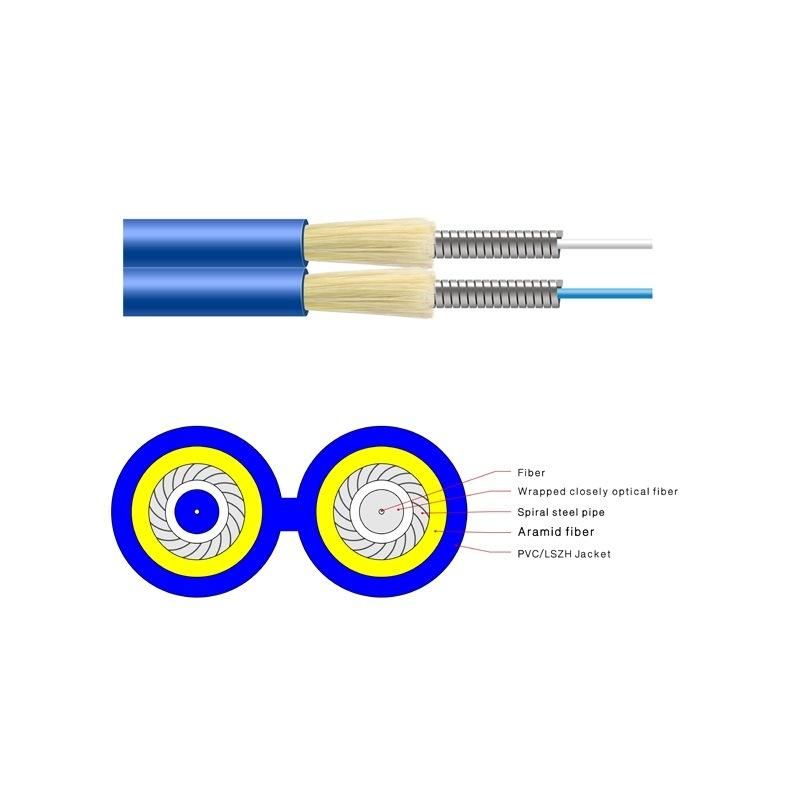

2 core Indoor Duplex Armored GJSFJBV
GJSFJBV fiber cable, 900μm or 600μm tight buffer fibers are wrapped a layer of flat stainless steel wires and then add a layer of aramid yarn as strength unit, finally into figure 8 shape fiber optic cable with PVC or LSZH sheath.




Products Features:
·Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
·High strength aramid yarn,high performance outer sheath
·Light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.
·Flame retardant outer sheath provide good safety.



Products Application:
·All kinds of connector
·Fiber optic pigtails, patch cords.
·Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
·Fiber optic equipment and instrument
·Indoor cabling,building cabling,LAN, etc
·Long distance, outdoor/indoor cabling, trunking,etc
·Backbone network to the equipment in the building
· Small installation space cabling



Storage/Operating Temperature : -20ºC to + 60ºC


Cable Type	Tight Diameter	Cable Diameter	Cable Weight	Tensile Strength   Long/Short Term	Crush Resistance    Long/Short Term	Bending Radius         Static/Dynamic
	mm	mm	Kg/km	N	N/100m	mm
GJSFJBV	0.6	2.0*4.1	30	300/750	200/1000	20H/10H
GJSFJBV	0.6	2.8*5.7	35	300/750	200/1000	20H/10H
GJSFJBV	0.9	3.0*6.1	43	300/750	200/1000	20H/10H

Start with the first switch machine of Huawei in 1994, FIBCONET has gone through nearly 20 years in the fiber optic communication area.

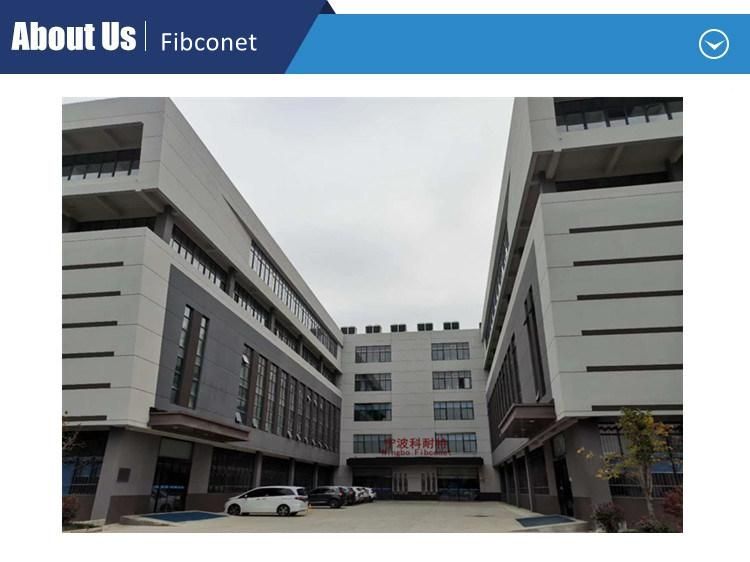

Now FIBCONET not only located in Ningbo, where is the FTTH center, but also has new production center in Jilin, covering area nearly 23000 Sqm, owning 1500 workers, reaching the production capacity of PLC Splitter in 800,000 pcs and fiber optical connectors in7,000,000 pcs per month. As the national high-tech enterprise, FIBCONET's person also striving more efforts on the innovation.50 patents,15 invention patents have been attained.

With the new corporate vision: To be the top one supplier for the fiber optical components, FIBCONET update self and have one new logo, FIBCONET, which will focus much in the international market with high standard.








FAQ

1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand ?

Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product ?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal Box, except that, we have very good prices for part of fiber tools!

4. How can we place order?

After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost!

5. What is the quality for your product?

All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?

Solution A:  FIBCONET take care of everything.  Clients only need to collect cargo in local or wait cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B:  Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follow the company's instructions and finish the shipping.

7. How can you guarantee the delivery time?

 1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

 Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product ?

1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.

 10. Why choose FIBCONET Fiber Optic to cooperate?

1.  We have first-class production line and strict quality management system.
2.  We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
3.  We can provide the most competitive price to meet your budget.
4.  We also design and innovate the new products based on our rich experience .
5.  We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be on service of you
Features!
