• Model NO.：Speaker Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO9001, CCC
• Brand：OEM
• Spof：Silver Plated Oxygen Free
• Pcof：Plain Copper Oxygen Free
• Pcw：Plain Copper
• Transport Package：500m , Roll
• Specification：0.75mm to 3.8mm
• Trademark：Hongda
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：50 Kilometer,Day

Basic Info.

Model NO. Speaker Cable Wire Core Material Bare Copper Wire Certification ISO9001, CCC Brand OEM Spof Silver Plated Oxygen Free Pcof Plain Copper Oxygen Free Pcw Plain Copper Transport Package 500m / Roll Specification 0.75mm to 3.8mm Trademark Hongda Origin China(Mainland) HS Code 8544492100 Production Capacity 50 Kilometer/Day

Product Description

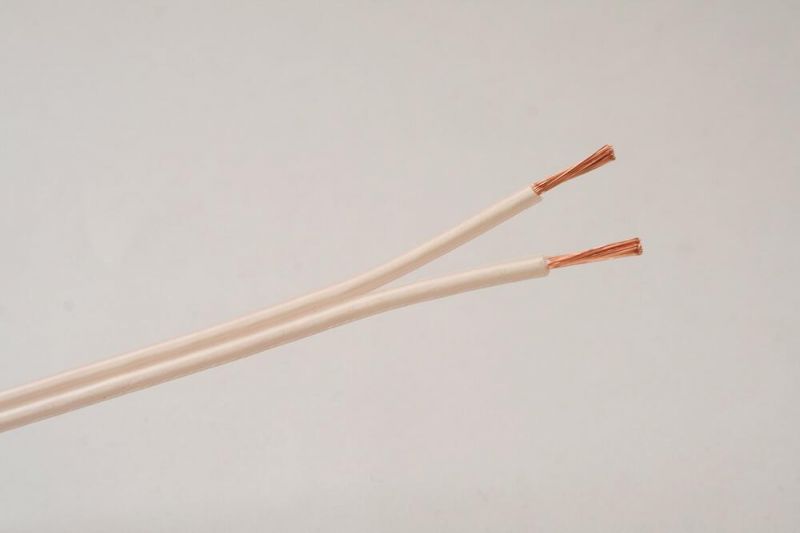

Speaker Cables

Description:

These are used as fixed or temporary leads to loudspeakers in mono, stereo, hi-fi and other types of private or public address audio systems and are available with plain, oxygen free or silver plated copper conductors.




Specifications:

Conductor	Type	Area	Insulation	Thickness	Dimensions	DC resistance
Nominal		(mm²)	Material	(mm)	(mm)	(Ω/Km Max)
28/0.25mm	SPOF	1.38	Polythene	0.49	2.80 x 6.10	14.25
40/0.2mm	PCOF	1.25	Polythene	0.4	2.24 x 4.98	15.5
42/0.15mm	PCW	0.75	PVC	0.9	2.98 x 6.46	26.38
76/0.2mm	SPOF	3.74	Polythene	0.74	3.50 x 7.00	5.4
76/0.2mm	PCOF	3.74	Polythene	0.8	4.67 x 9.40	5.25
79/0.2mm	PCOF	2.5	Polythene	0.72	3.50 x 7.00	7.9
79/0.2mm	PCW	2.5	PVC	1	4.01 x 8.20	7.9

SPOF - Silver Plated Oxygen Free
PCOF - Plain Copper Oxygen Free
PCW - Plain Copper

These cables are produced with either a coloured stripe or a polarity rib along one leg for polarity identification.
Please enquire for alternative constructions not shown above.

All dimensions are nominal unless otherwise specified
Bunched conductor constructions are nominal and may vary slightly in the number of strands and/or strand diameter.
