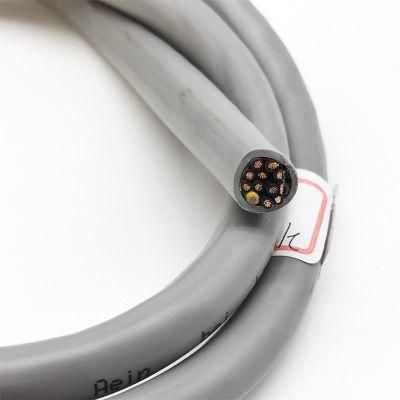

| Item | TRONIC-CY (LiY-CY) Cable 0.25 to 1.5 mm2 |
| Conductor | Copper wire bare, 0.5 - 1.5 mm²: finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5 |
| Wire structure | 0.14 mm²: approx. 18 x 0.1 mm0.25 mm²: approx. 14 x 0.15 mm0.34 mm²: 7 x 0.25 mm |
| Insulation | PVC |

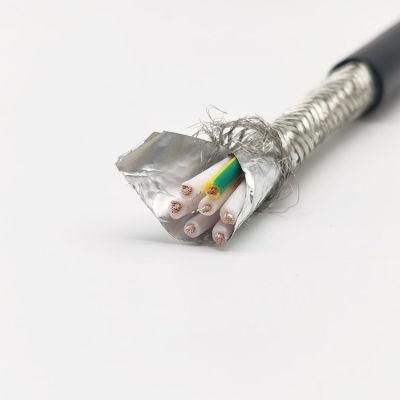

| Wrapping | Foil wrapping |

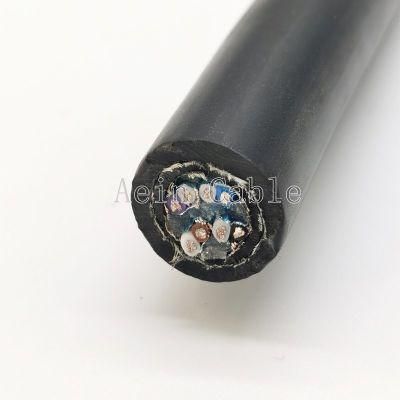

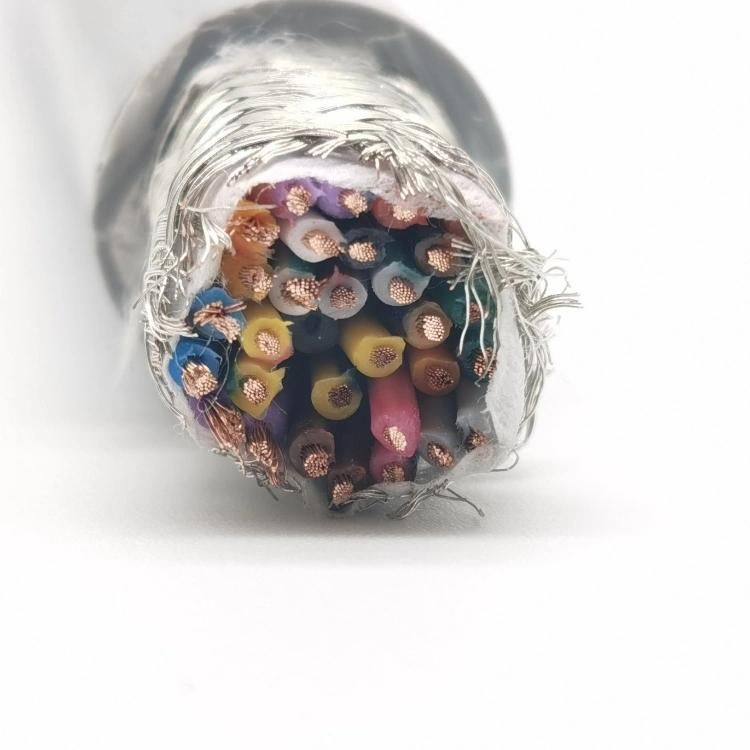

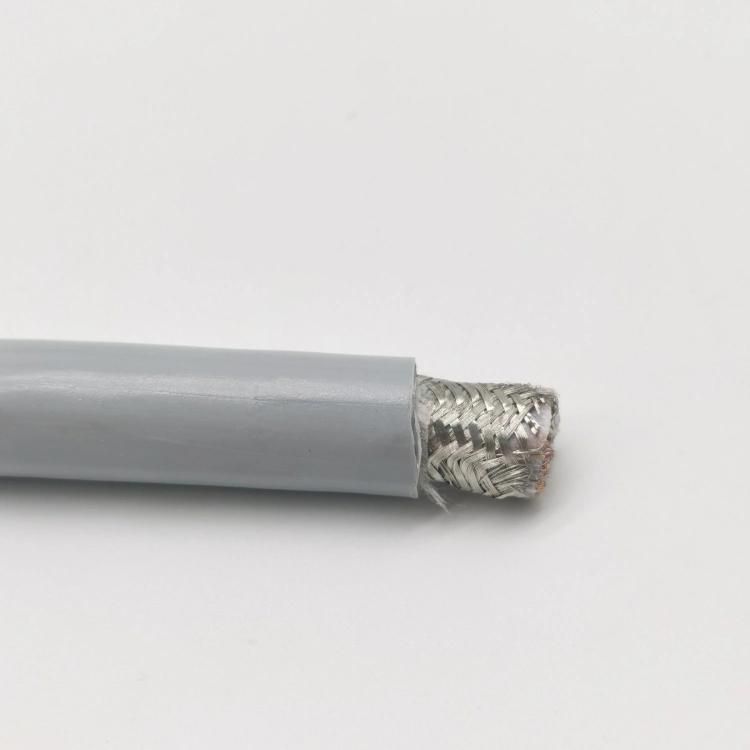

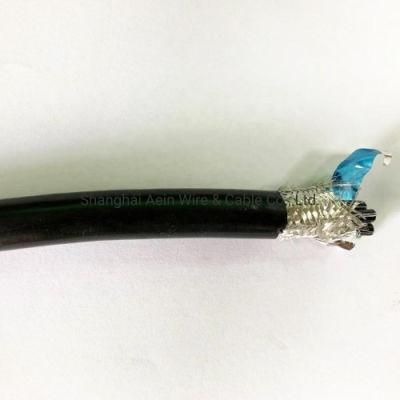

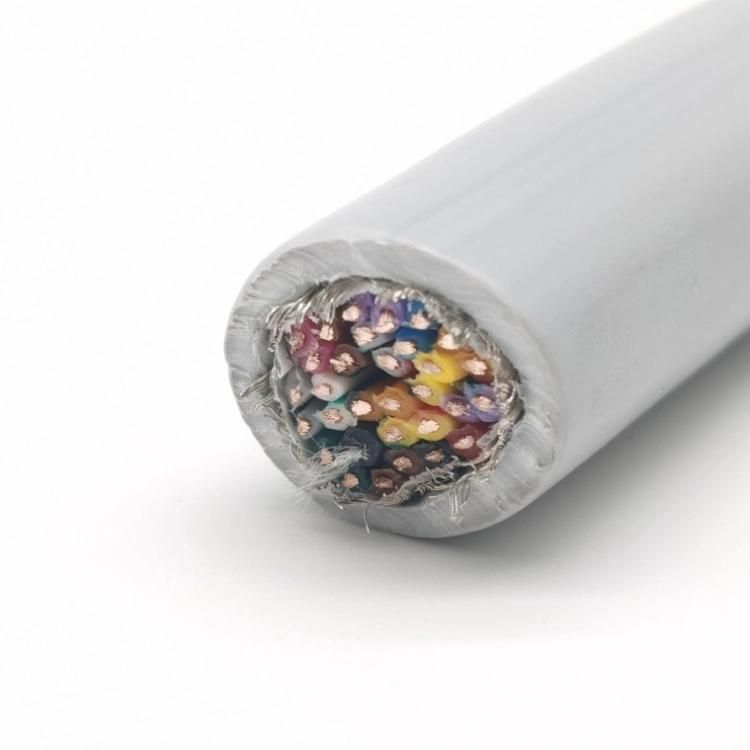

| Screen | 1 core(s): helically wound tinned copper wires, approx. coverage 85 %2 - 61 core(s): braided screen of tinned copper wires, approx. coverage 85 % |
| Outer sheath | PVC |
| Core Number | Multicores (As client's requirement) |
| Temperature range | Flexible -5°C to +80°C
Fixed -40°C to +80°C |
| Peak operating voltage | 0.25 - 1.5 mm²: 500 V
(not for high power current installation purposes) |
| Test voltage core/core | 0.34 - 1.5 mm²: 2000 V |
| Test voltage core/screen | 0.34 - 1.5 mm²: 1200 V |
| Breakdown voltage | 0.34 - 1.5 mm²: 4000 V |
| Color | Optional |
| Application | Suitable for flexible applications with free movement, without tensile stress and without forced motion control in dry, damp and wet rooms, however, not suitable for outdoor use. Used as control and signal cables in the milliampere range for computer systems, control devices, scales etc. Due to its extremely small outer-Ø, it is especially suitable for subminiature plugs, electronic devices etc. These cables with copper screening are ideally suited for interefence-free data and signal transmission for measurement and control technology. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding. |
