• Model NO.：0.6,1 kV Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, SGS
• Model：U-1000 Rvfv, Xav
• Brand：Hongda
• Standard：NF C 32-322, IEC60502-1
• Rated Voltage：0.6,1 Kv
• Transport Package：Drum or as Customer Require
• Specification：1.5mm2 to 400mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：20km,Day

Basic Info.

Model NO. 0.6/1 kV Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, SGS Model U-1000 Rvfv, Xav Brand Hongda Standard NF C 32-322, IEC60502-1 Rated Voltage 0.6/1 Kv Transport Package Drum or as Customer Require Specification 1.5mm2 to 400mm2 Trademark Hongda Origin China HS Code 8544492100 Production Capacity 20km/Day

Product Description

ARMIGRON-F RVFV / XAV / LXAV - PVC Standard 0.6/1 kV Cable

APPLICATIONS OVERVIEW

Reinforced cables with steel tape for low voltage power distribution.

Maximum temperature rating of the conductor: +90 C

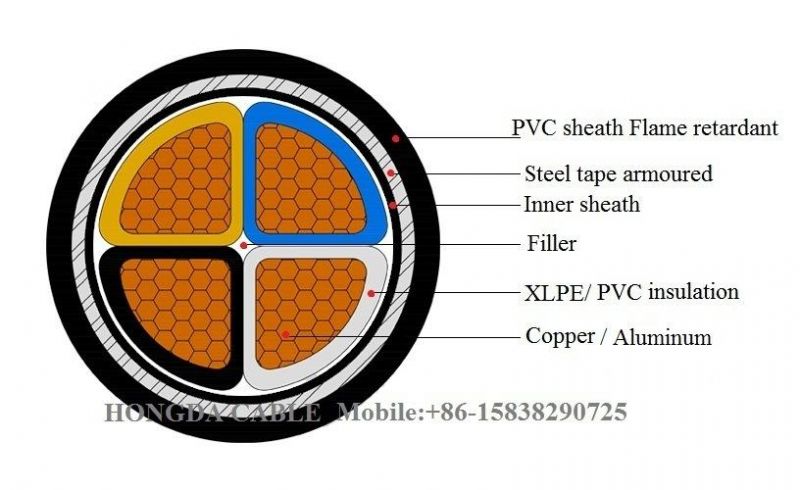

U-1000 R2V XV / U-1000 RVFV XAV CABLE CONSTRUCTION

CONSTRUCTION:

1. CONDUCTOR: Copper class 1 up to and including 4mm2 or aluminium class 2 for bigger cross sections.
2. INSULATION: Cross-linked polyethylene, type XLPE to 60502-1.
3. INNER SHEATH: Polyvinyl chloride (PVC).
4. ARMOUR: Double steel tape.
5. OUTER SHEATH: Polyvinyl chloride (PVC), type ST2 to IEC 60502-1.

CHARACTERISTICS
Voltage Rating (Uo/U): 600/1000V
Test Voltage: 3.5 kV
Temperature Rating: -10°C to +60°C
Maximum Operating Temperature: +90ºC

Core Identification
2 core: Blue Brown
3 core: Black Brown Grey
3 core including earth: Blue Brown Green/Yellow

STANDARDS:

CONSTRUCTION	FIRE PERFORMANCE
IEC 60502-1	IEC 60332-1-2
	EN 60332-1



AWG	Cross Section	Insulation thickness	Minimum Sheath thickness	Maximum Overall diameter
	mm2	mm	mm	mm
16	1x1.5	0.7	1.09	6.6
14	1x2.5	0.7	1.09	7
12	1x4	0.7	1.09	7.6
10	1x6	0.7	1.09	8.2
8	1x10	0.7	1.09	9.2
6	1x16	0.7	1.09	10.5
4	1x25	0.9	1.09	12.5
2	1x35	0.9	1.09	13.5
1	1x50	1	1.09	15
2/0	1x70	1.1	1.09	17
3/0	1x95	1.1	1.18	19
4/0	1x120	1.2	1.18	21
300MCM	1x150	1.4	1.26	23
500MCM	1x185	1.6	1.26	25.5
750MCM	1x240	1.7	1.35	28.5
	1x300	1.8	1.43	31
16	2x1.5	0.7	1.43	10.5
14	2x2.5	0.7	1.43	11.5
12	2x4	0.7	1.43	13
10	2x6	0.7	1.43	14
8	2x10	0.7	1.43	16
6	2x16	0.7	1.43	18.5
4	2x25	0.9	1.43	22
2	2x35	0.9	1.43	24.5
16	3x1.5	0.7	1.43	11
14	3x2.5	0.7	1.43	12.5
12	3x4	0.7	1.43	13.5
10	3x6	0.7	1.43	15
8	3x10	0.7	1.43	17
6	3x16	0.7	1.43	19.5
4	3x25	0.9	1.43	23.5
2	3x35	0.9	1.43	26
1	3x50	1	1.43	29
2/0	3x70	1.1	1.52	34
3/0	3x95	1.1	1.6	38.5
4/0	3x120	1.2	1.69	42.5
300MCM	3x150	1.4	1.86	47.5
500MCM	3x185	1.6	1.94	53
750MCM	3x240	1.7	2.11	59.5
-	3x300	1.8	2.28	66
16	4x1.5	0.7	1.8	11.3
14	4x2.5	0.7	1.8	12.2
12	4x4	0.7	1.8	13.3
10	4x6	0.7	1.8	15
8	4x10	0.7	1.8	17.25
6	4x16	0.7	1.8	18.8
4	4x25	0.9	1.8	23
2	4x35	0.9	1.8	25.1
1	4x50	1	1.9	29.1
2/0	4x70	1.1	2	33.9
3/0	4x95	1.1	2.1	38.4
4/0	4x120	1.2	2.3	42.4
300MCM	4x150	1.4	2.4	47.2
500MCM	4x185	1.6	2.6	52.65
750MCM	4x240	1.7	2.8	59
-	4x300	1.8	3	64.8
1	3x50+35	1	1.8	28.8
2/0	3x70+50	1.1	2	33.4
3/0	3x95+50	1.1	2.1	37
4/0	3x120+70	1.2	2.2	41.3
300MCM	3x150+70	1.4	2.3	45.1
500MCM	3x185+70	1.6	2.5	50
750MCM	3x240+95	1.7	2.7	55.8
16	5x1.5	0.7	1.8	12.1
14	5x2.5	0.7	1.8	13.1
12	5x4	0.7	1.8	14
10	5x6	0.7	1.8	16.3
8	5x10	0.7	1.8	18.5
6	5x16	0.7	1.8	20.6
4	5x25	0.9	1.8	25.4
16	7x1.5	0.7	1.8	12.3
14	7x2.5	0.7	1.8	13.2
12	7x4	0.7	1.8	15.4
16	8x1.5	0.7	1.8	13.9
14	8x2.5	0.7	1.8	14.9
12	8x4	0.7	1.8	16.5
16	10x1.5	0.7	1.8	15.8
14	10x2.5	0.7	1.8	17
12	10x4	0.7	1.8	19
16	12x1.5	0.7	1.8	15.5
14	12x2.5	0.7	1.8	16.8
12	12x4	0.7	1.8	19.6
16	14x1.5	0.7	1.8	17
14	14x2.5	0.7	1.8	18.3
12	14x4	0.7	1.8	20.5
16	19x1.5	0.7	1.8	17.9
14	19x2.5	0.7	1.8	19.4
12	19x4	0.7	1.8	22.6
16	24x1.5	0.7	1.8	20.7
14	24x2.5	0.7	1.8	23.2
16	30x1.5	0.7	1.8	22.6
14	30x2.5	0.7	1.8	24.5
16	37x1.5	0.7	1.8	23.5
14	37x2.5	0.7	1.8	26.3

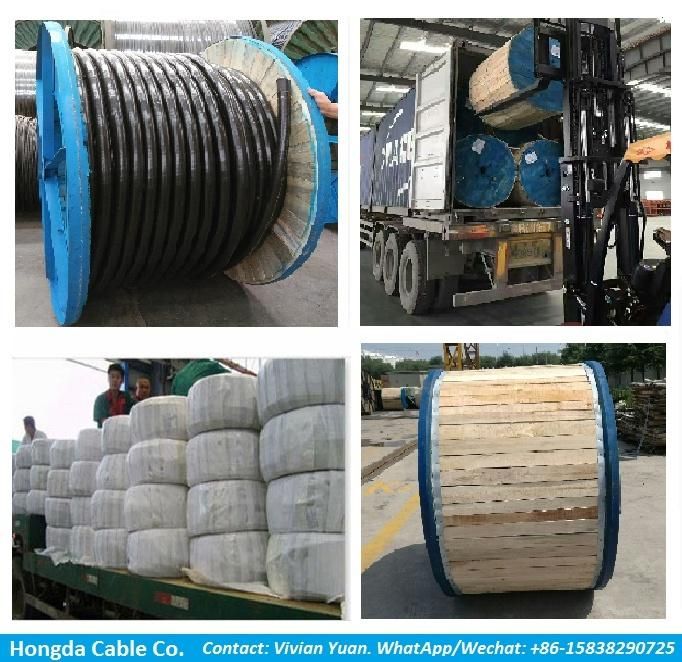

Packing & Shipping:


FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

We are looking forward to your inquiry and nice cooperation.
