• Model NO.：11kv cable BM56
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：YJV
• Brand：Yifang
• Option Conductor：Aluminum
• Transport Package：Wooden or Wooden-Steel Drum
• Specification：multicores
• Trademark：Yifang Cable
• Origin：Zhengzhou, China
• HS Code：8544601200
• Production Capacity：300km,Month

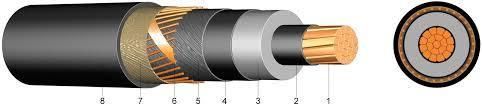

Construction Characteristics

Conductor material:CopperConductor identification:Coloured tapes under screenConductor shape:CircularConductor flexibility:Stranded class 2Material of the inner semi-conductor:Semi-conducting compoundInsulation:XLPE (Chemical)Material of the external semi-conduct:Extruded strippableScreen:Bare CopperInner sheath:PVCArmour type:Galvanized steel wiresOuter sheath:PVCColour:RedLead free:Yes

Electrical Characteristics

Rated Voltage Uo/U (Um):6350/11000 volts to BS6622 & IEC 60502-2

Usage Characteristics

Minimum installation temperature:0°CMaximum installation temperature:60°CInstallation type:Direct burial or in ductsMaximum operating temperature:90°CShort-circuit max. conductor temperature:250°CFlame retardant:IEC 60332-1Bending radius:12 x Overall diameter

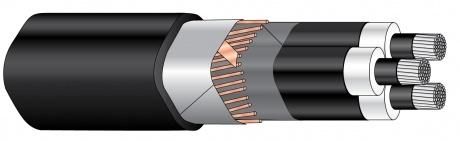

3 Core: Brown, Black & Grey Tapes

Part NumberCross SectionStrandingApprox WeightApprox Overall DiameterGland SizeSingle CleatNom. Max. DC-resist conductor 20° CCurrent rating laid direct(mm²)(mm)KG/KM(mm)(mm) (Ohm/km)(Amp)11KVPVC3X163 x 167/1.70344044.3401.81.1511911KVPVC3X253 x 257/2.14406048.55020.72715211KVPVC3X353 x 357/2.52449550.550R90.52418111KVPVC3X503 x 5019/1.78511553.063sR90.38721311KVPVC3X703 x 7019/2.14603556.863sR100.26826011KVPVC3X953 x 9519/2.52718061.363R100.19330911KVPVC3X1203 x 12037/2.03828065.175sR110.15334911KVPVC3X1503 x 15037/2.25932566.875sR110.12439011KVPVC3X1853 x 18537/2.521074072.375R120.099143611KVPVC3X2403 x 24061/2.521382079.390R140.075449911KVPVC3X3003 x 30061/2.851612084.290R150.075455311KVPVC3X4003 x 40061/3.201935092.4 R150.0470619

On request the cable is available with a black polyethylene (PE) outer sheath. A MMQ and manufacturing lead-time may apply.
