Yifang XLPE Power Cable by BS7870 - 4.10 19/33kv Single Core Un-Armoured
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：Lsf
- Material Shape：Round Wire
Base Info
- Model NO.：N2XS2Y
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS
- Model：Na2xs2y
- Brand：Yifang
- Flame Resistant：Class a to C
- Transport Package：Steel Reel
- Specification：25 ~ 1000mm2
- Trademark：YIFANG
- Origin：China
- HS Code：85446012
- Production Capacity：500000 Mt,Month
Description
Basic Info.
Model NO. N2XS2Y Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS Model Na2xs2y Brand Yifang Flame Resistant Class a to C Transport Package Steel Reel Specification 25 ~ 1000mm2 Trademark YIFANG Origin China HS Code 85446012 Production Capacity 500000 Mt/MonthProduct Description
Product DetailsYifang XLPE Power Cable by BS7870 - 4.10 19/33kv Single Core Un-armoured
STANDARDS
International : IEC 60502National : BS 7870-4.10
DESCRIPTION
Important Note: this information is for general guidance only, based on standard design options. Exact data will vary based upon the options required, and therefore a full data sheet for the exact design should be requested prior to any order.
Voltage Rating:
- 19/33 (36) kV
Typical Constructions:
Conductors
- Stranded Copper or
- Stranded Aluminium
- Option - water swellable powders or tapes
Conductor Screen
- SC XLPE
Insulation
- XLPE
Insulation Screen
- Bonded SC XLPE
- Option - cold strippable SC XLPE
Paper separation Tapes
- Option - water swellable tapes
Copper Wire Screen
- Number and diameter of wires dependant upon required earth fault rating
- Option - copper equalising tapes applied helically
Sheath
- Black MDPE
- Option - LSOH material
- Sheath embossed or indented with year of manufacture, size and type of conductor and voltage in accordance with design standard employed
- Option - sequential metre marking
Product Introduction
Product Parameters
| Sizes(mm2) | Overall Dia.(mm) | Weight(kg/km) | Rated Current(in soil,A) |
| 1x50(Cu) | 32.2 | 1350 | 221 |
| 1x70(Cu) | 34.1 | 1618 | 270 |
| 1x95(Cu) | 36.0 | 1928 | 322 |
| 1x120(Cu) | 37.3 | 2214 | 365 |
| 1x150(Cu) | 39.0 | 2555 | 409 |
| 1x185(Cu) | 40.7 | 2958 | 461 |
| 1x240(Cu) | 43.3 | 3580 | 533 |
| 1x300(Cu) | 45.3 | 4211 | 600 |
| 1x400(Cu) | 49.0 | 5300 | 587 |
| 1x500(Cu) | 52.5 | 6367 | 775 |
| 1x630(Cu) | 56.6 | 7751 | 877 |
| 1x800(Cu) | 60.5 | 9481 | 980 |

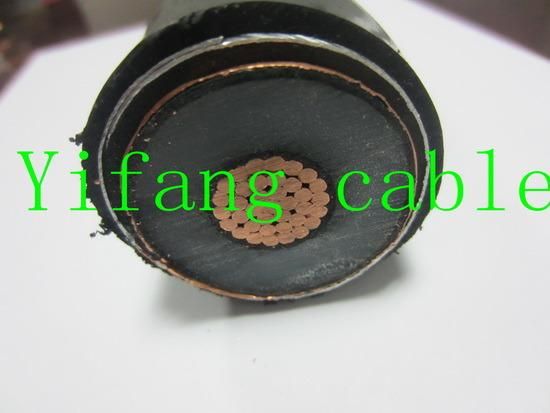

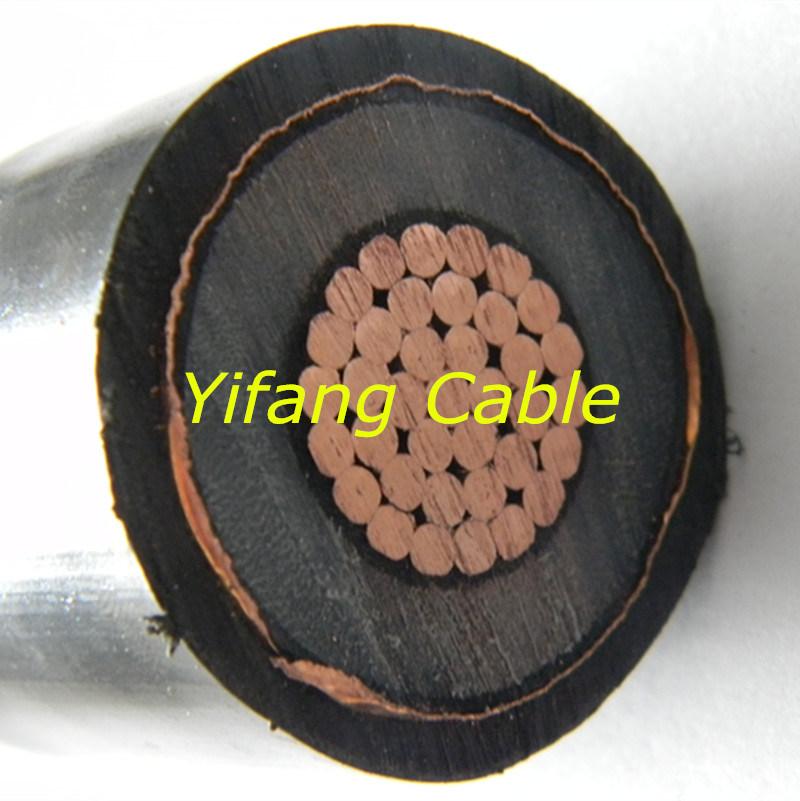

Product Details Show

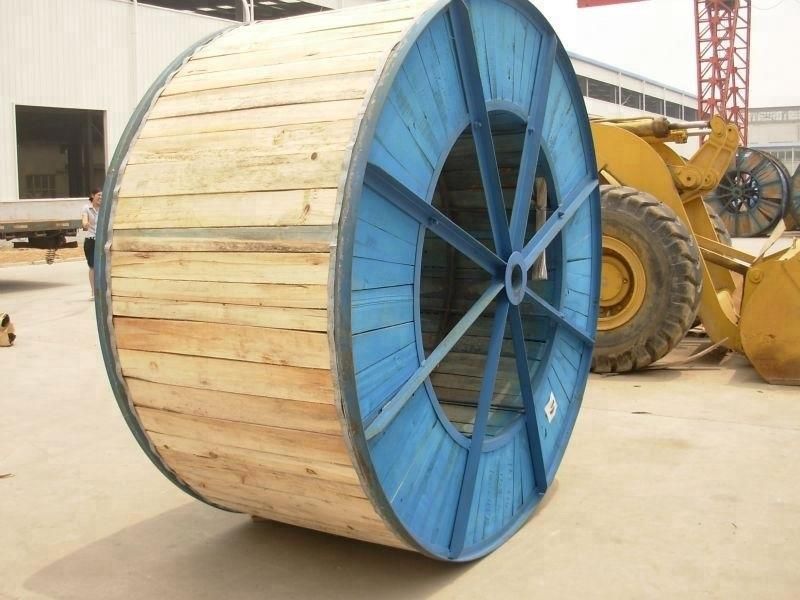

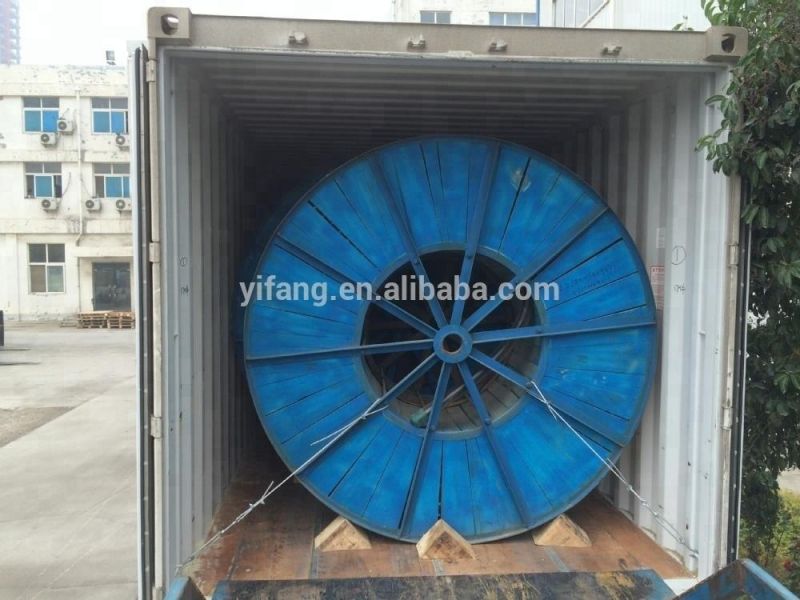

Product Package
