• Model NO.：QR320
• Wire Core Material：Steel
• Certification：CE, ISO, RoHS, CCC, UL
• Model：MHYV-xx
• Brand：FUJI

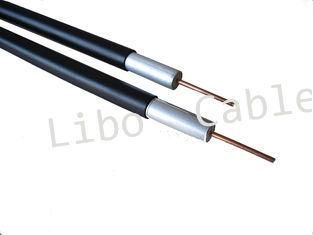

• Qr320 JAC Distribution Cable：Welded Aluminum Tape as Outer Conductor
• High Quality PE Outer Jacket：Asphalit or Flooding Compound Is Available
• Transport Package：Plate
• Specification：CE, ROSHS, SGS
• Trademark：Libo cable
• Origin：Zhejiang, China
• HS Code：854420
• Production Capacity：12000kms,Month

Physical dimensions
component
inches
mm
Inner conductor
0.071
1.80
diameter over dielectric
0.294
7.47
diameter over aluminum shield
0.32
8.13
Outer conductor thickness
0.013
0.34
Diameter over jacket
0.395
10.03
Jacket wall thickness
0.0375
0.95

Packing:
Buyer's labels and cartons OEM/ODM desgin service is available.

Mechanical performance:
Minimum bending radius: 2.0 inches/50.8mm
Maximum pulling tension: 120lbs /54.5kgf

Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Normal DC loop resistance @68OF: 1.61 Ohms/100ft (5.28 ohms/km)

Attenuation@ 68OF(20oC):
@Frequency MHZ
dB/100ft. (MAX.)
dB/100 meters(MAX.)
5MHZ
0.24
0.79
55MHZ
0.84
2.76
83MHZ
1.27
3.51
211MHZ
1.73
5.68
250MHZ
1.86
6.10
300MHZ
2.04
6.69
350MHZ
2.25
7.38
400MHZ
2.38
7.81
450MHZ
2.52
8.27
500MHZ
2.72
8.92
550MHZ
2.85
9.35
600MHZ
2.98
9.78
750MHZ
3.34
10.96
865MHZ
3.62
11.88
1000MHZ
3.89
12.76

Competitive Advantage:
The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
Libo cable is equipped with a Provincial-level Research and Development Center.
