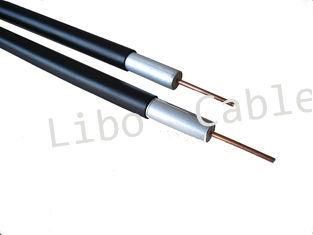

Aluminum Tube Trunk Cable 750 Without Messenger

ZHEJIANG LIBO INDUSTRIAL CO., LTD.
  • Application：Local Communication Cable, Coaxial Cable, LAN Cable, Fiber Optic Cable, Long Distance Symmetric Cable, RF Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 5
  • Material Shape：Hollow Line
  • Conductor Type：Stranded

Base Info

  • Model NO.：750
  • Wire Core Material：Steel
  • Certification：CE, ISO, RoHS, CCC, UL
  • Model：MHYV-xx
  • Brand：FUJI
  • High Quality PE Outer Jacket：Aluminum Tube Trunk Cable 750
  • Seamless Aluminum Tube as Outer Conducto：18awgs
  • Transport Package：Plate
  • Specification：CE, ROSHS, SGS
  • Trademark：Libo cable
  • Origin：Zhejiang, China
  • HS Code：854420
  • Production Capacity：12000kms,Month

Description


Physical dimensions
Component
inches
mm
Inner conductor
0.167
4.24
Diameter over dielectric
0.680
17.27
Diameter over aluminum tube
0.750
19.06
Outer conductor thickness
0.035
0.91
Diameter over jacket
0.820
20.83
Jacket wall thickness
0.035
0.90

Packing:

Buyer's labels and cartons OEM/ODM desgin service is available.
Mechanical performance:
Minimum bending radius: 8.0 inches/20.3cm
Maximum pulling tension: 675lbs /306kgf

Attenuation@ 68OF(20oC):
@Frequency MHZ
dB/100ft. (MAX.)
dB/100 meters(MAX.)
5MHZ
0.11
0.36
55MHZ
0.37
1.21
83MHZ
0.46
1.51
211MHZ
0.74
2.43
250MHZ
0.81
2.66
300MHZ
0.89
2.92
350MHZ
0.97
3.18
400MHZ
1.05
3.44
450MHZ
1.12
3.67
500MHZ
1.18
3.87
550MHZ
1.24
4.07
600MHZ
1.31
4.30
750MHZ
1.48
4.86
865MHZ
1.61
5.28
1000MHZ
1.74
5.71
 Aluminum Tube Trunk Cable 750 Without Messenger

Competitive Advantage:
The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable isavailable; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable developed the world's first conforming seamless aluminum tube trunk cable.
Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
Libo cable is equipped with a Provincial-level Research and Development Center.


Tag : seamless trunk cable, outdoor trunk cable
