Trunk Cable 700 of Seamless Aluminum Distribution

ZHEJIANG LIBO INDUSTRIAL CO., LTD.
  • Application：Local Communication Cable, Coaxial Cable, LAN Cable, Fiber Optic Cable, Long Distance Symmetric Cable, RF Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Type：Cat 5
  • Material Shape：Hollow Line
  • Conductor Type：Stranded

Base Info

  • Model NO.：700
  • Wire Core Material：Steel
  • Certification：CE, ISO, RoHS, CCC, UL
  • Model：MHYV-xx
  • Brand：FUJI
  • Aluminum Tube Trunk Cable 750 Without Me：Seamless Aluminum Tube as Outer Conductor
  • CATV Network：PE out Jacket
  • Transport Package：Plate
  • Specification：CE, ROSHS, SGS
  • Trademark：Libo cable
  • Origin：Zhejiang, China
  • HS Code：854420
  • Production Capacity：12000kms,Month

Description


Physical dimensions
Component
inches
mm
Inner conductor
0.163
4.14
Diameter over dielectric
0.653
16.59
Diameter over aluminum tube
0.703
17.86
Diameter over jacket
0.7650
19.43

Packing:
Buyer's labels and cartons OEM/ODM desgin service is available.

Mechanical performance:
Minimum bending radius: 8.0 inches/20.3cm
Maximum pulling tension: 501lbs /227kgf

Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Nominal DC loop resistance@68OF: 0.76Ohms/1000ft (2.55 ohms/km)

Attenuation@ 68OF(20oC):
@Frequency MHZ
dB/100 meters(MAX.)
5MHZ
0.36
55MHZ
1.18
211MHZ
2.40
250MHZ
2.66
300MHZ
2.95
350MHZ
3.22
400MHZ
3.45
500MHZ
3.90
600MHZ
4.30
750MHZ
4.89
865MHZ
5.32
1000MHZ
5.74

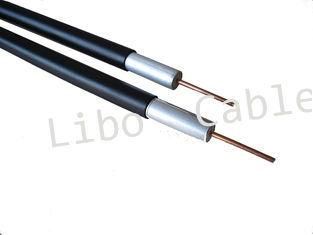

 Trunk Cable 700 of Seamless Aluminum Distribution
Competitive Advantage:
The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable isavailable; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable developed the world's first conforming seamless aluminum tube trunk cable.
Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
Production and testing procedures strictly follow requirements of ISO9000, and ISO14000.
