• Model NO.：QR412
• Wire Core Material：Steel
• Certification：CE, ISO, RoHS, CCC, UL
• Model：MHYV-xx
• Brand：FUJI
• Qr412：Welded Aluminum Tape
• Alumium Trunk Cable：18AWG
• Transport Package：Plate
• Specification：CE, ROSHS, SGS
• Trademark：Libo cable
• Origin：Zhejiang, China
• HS Code：854420
• Production Capacity：12000kms,Month

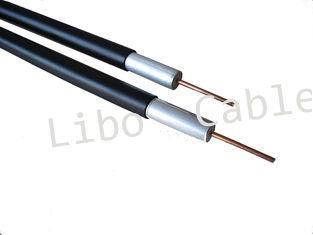

Physical dimensions
component
inches
mm
Inner conductor
0.089
2.26
Diameter over dielectric
0.362
9.19
Diameter over outer conductor
0.3858
9.80
Outer conductor thickness
0.024
0.305
Diameter over jacket
0.475
12.07
messenger
0.109
2.77

Mechanical performance:
Minimum bending radius: 6.0 inches/15.2cm
Maximum pulling tension: 150lbs /68kgf

Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(55±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Nominal DC loop resistance@68OF: 2.57 ohms/1000ft (8.43 ohms/km)

Attenuation@ 68OF(20oC):
@Frequency MHZ
dB/100ft. (MAX.)
dB/100 meters(MAX.)
5MHZ
0.20
0.65
55MHZ
0.69
2.26
83MHZ
0.86
2.82
211MHZ
1.41
4.62
250MHZ
1.54
5.05
300MHZ
1.70
5.57
350MHZ
1.87
6.13
400MHZ
1.97
6.46
450MHZ
2.11
6.92
500MHZ
2.24
7.34
550MHZ
2.35
7.71
600MHZ
2.47
8.10
750MHZ
2.78
9.12
865MHZ
3.01
9.87

Competitive Advantage:
The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
Production and testing procedures strictly follow requirements of ISO9000, and ISO14000.


Tag : seamless trunk cable, outdoor trunk cable
