7/8 Feeder RF Coaxial Cable Communication Cable Low Smoke Halogen-Free Flame Retardent or LSZH
ZHEJIANG LIBO INDUSTRIAL CO., LTD.- Application：Local Communication Cable, Coaxial Cable, Fiber Optic Cable, RF Cable
- Conductor Material：Copper
- Cover Material：PE
- Type：RF Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：7,8 inches smooth feeder cable
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO
- Model：Hctayz-50-22
- Brand：OEM
- Transport Package：350m,500m,or According to Client’ S Request
- Specification：7,8 inches
- Trademark：OEM
- Origin：China
- HS Code：8544200000
- Production Capacity：2000km,Month
Description
Testing item
Unit
Standard
Inner conductor
material
-
smooth copper tube
diameter
mm
9.05
Outer conductor
material
-
corrugated copper tape
diameter
mm
24.90
jacket
PE or halogan free
mm
27.50
mechanical performance
single bending radius
mm
120
repeated bending radius
mm
250
electrical performance
inner conductor resistance
Ω/km
≤1.05
outer conductor resistance
≤1.18
Capacitance
pF/M
75
Characteristic impedance
Ω
50+/-1
Velocity
%
89
Attenuation
20ºC(max)
100MHZ
dB/100m
1.19
200MHZ
1.72
300 MHZ
2.13
450 MHZ
2.65
800 MHZ
3.63
900 MHZ
3.88
1000 MHZ
4.12
1500 MHZ
5.18
1800 MHZ
5.75
2000 MHZ
6.11
2500 MHZ
6.95
3000 MHZ
7.76
VSWR
0.01GHz-3GHz
-
1.20
820MHZ-960MHz
1.0
1.7GHz-1.9GHz
2.1GHz-2.2GHz
Competitive Advantage:

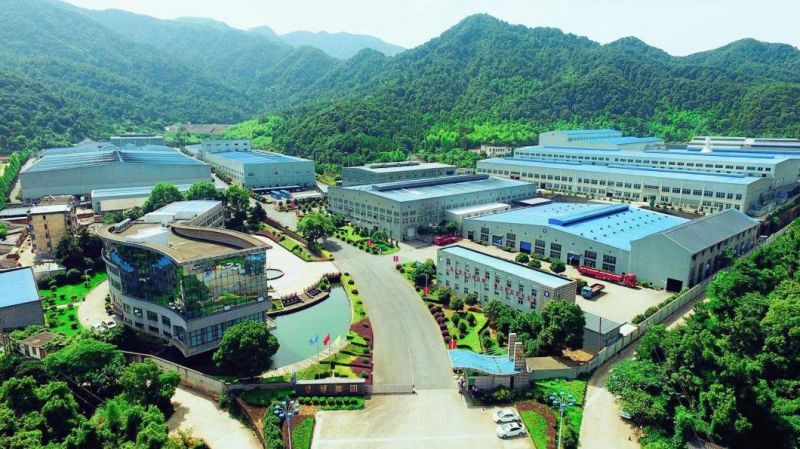

- Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
- Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
- Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies since 1994.
