• Model NO.：J-SS-SS
• Material Shape：Round Wire
• Range of Application：High Temperature Environments
• Certification：ISO9001, UL, CCC
• Brand：Fongming
• Name：Thermocouple Wire
• Size：24AWG~8AWG
• Color：as Requirements
• Sample：10meters
• Test：High Voltage Testing
• Test Voltage：2000V
• Other Type：Agr
• MOQ：500meters
• Insulation：Quartz Braid and Silicone Resin Coating
• Jacket：Quartz Braid and Silicone Resin Coating
• Conductor：Fe,Cu-Ni
• Transport Package：Carton Packing
• Specification：24awg~8awg
• Trademark：FONGMING
• Origin：Yangzhou, Jiangsu Province, China
• HS Code：8544492100
• Production Capacity：10000000m Per Year

Basic Info.

Model NO. J-SS-SS Material Shape Round Wire Range of Application High Temperature Environments Certification ISO9001, UL, CCC Brand Fongming Name Thermocouple Wire Size 24AWG~8AWG Color as Requirements Sample 10meters Test High Voltage Testing Test Voltage 2000V Other Type Agr MOQ 500meters Insulation Quartz Braid and Silicone Resin Coating Jacket Quartz Braid and Silicone Resin Coating Conductor Fe,Cu-Ni Transport Package Carton Packing Specification 24awg~8awg Trademark FONGMING Origin Yangzhou, Jiangsu Province, China HS Code 8544492100 Production Capacity 10000000m Per Year

Product Description

High temp Quartz Braid insulated J Type Thermocouple cable

Description
Name:Thermocouple wire
Model:J-SS-SS Type
Size:2*26-2*14AWG

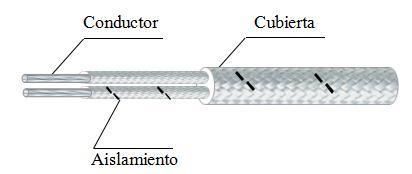

Structure
Conductor:Fe,Cu-Ni
Insulation:Quartz Braid  and Silicone Resin Coating
Color:Positive White With Black Stripe Negative White
Jacket:Quartz Braid and Silicone Resin Coating
Color:White White With Black Stripe

Model


Specification


Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.2	1.3±0.2*2.0±0.2
2*24	7/0.2	0.6	0.2	1.0	0.2	1.4±0.2*2.2±0.2
2*22	7/0.25	0.75	0.2	1.2	0.2	1.6±0.2 *2.6±0.2
2*20	11/0.25	0.96	0.2	1.4	0.2	1.8±0.2 *3.0±0.2
2*18	17/0.25	1.19	0.2	1.6	0.2	2.0±0.2 *3.4±0.2
2*16	27/0.25	1.50	0.2	1.9	0.2	2.3 ±0.2*4.0±0.2
2*14	42/0.25	1.87	0.2	2.3	0.2	2.7 ±0.2*4.8 ±0.2

Certificates:


UL, CE, CCC, RoHS, CSA, SGS, ISO etc. certificates are well received.



Packaging & Shipping



1. Package length	200meres 305meter 500meter As customers requirement
2. Package method	Rolls, spool or coil, Pallets if need.
3: Shipping port	Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port

Company Information

Factory Size (Sq.meters):	25,000-30,000 square meters
Factory Location:	Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China
Number of Production Lines:	7
Number of R&D Staff:	21 - 30 People
Number of QC Staff:	21 - 30 People
Contract Manufacturing:	OEM Service Offered Design Service Offered Buyer Label Offered

Hot Products



FAQ
 1. Why the price is so low?
You are ordering directly from the factory.

2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.

3.Can I get some samples?
Yes, we are honored to offer you samples.

4. Can you make the products with my design?
Yes. customization is welcome .
