Optical Laser Source T-Op300-S3s4s5

Nanjing Tianxingtong Electronic Technology Co., Ltd.
  • Application:Communication, Art, Sensor, Medicine, Probe
  • Connection Structure:FC,PC (or Customize)
  • Core:Sm mm
  • Certification:CE, ISO9001
  • Brand:Skycom
  • Output Power:> - 6 dBm or > -10 dBm

Base Info

  • Model NO.:T-OP300-S3S4S5
  • Power Supply:AA * 2 Batteries or AC,DC Power Supply Adapter
  • Stabilization:±0.05dB , 1 Hour; ±0.1dB , 8 Hours
  • Modulation:270Hz, 1kHz, 2kHz
  • Auto Power off:No Operation in 10 Minutes (Can Be Cancelled), Lo
  • Operate Time:Above 16 Hours
  • Transport Package:Carton
  • Specification:160mm *75mm * 32mm
  • Trademark:SKYCOM
  • Origin:China
  • HS Code:9031801000
  • Production Capacity:1500,Month

Description

Basic Info.

Model NO. T-OP300-S3S4S5 Power Supply AA * 2 Batteries or AC/DC Power Supply Adapter Stabilization ±0.05dB / 1 Hour; ±0.1dB / 8 Hours Modulation 270Hz, 1kHz, 2kHz Auto Power off No Operation in 10 Minutes (Can Be Cancelled), Lo Operate Time Above 16 Hours Transport Package Carton Specification 160mm *75mm * 32mm Trademark SKYCOM Origin China HS Code 9031801000 Production Capacity 1500/Month

Product Description

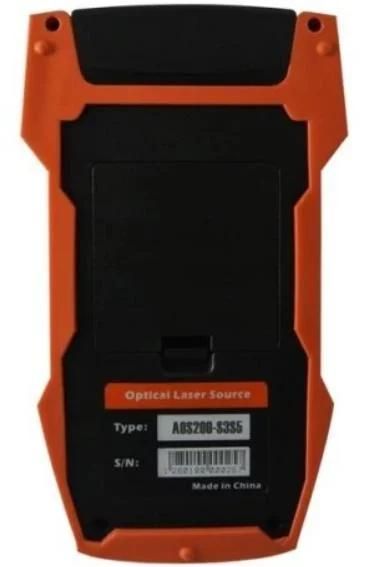

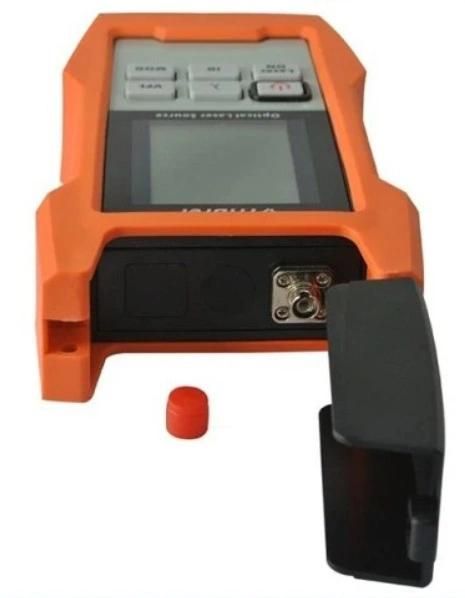

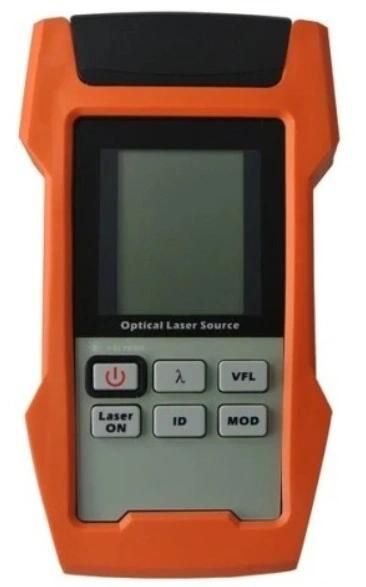

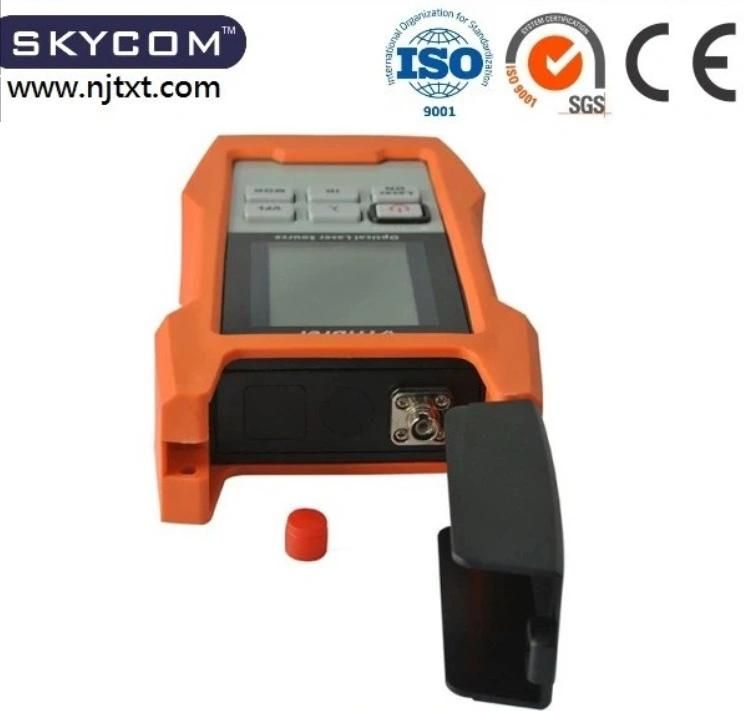

OPTICAL LASER SOURCE T-OP300-S3S4S5
Optical Laser Source T-Op300-S3s4s5

Key Features
*1~3 wavelengths output from one port:
*High stabilization,build in optic isolator;;
*270,1000,2000Hz Tone
*Auto Wave ID output;
*Energy save mode;

SPECIFICATION
ModelT-OP300-S3S4S5
Central Wavelength(nm)1310/1490/1550nm
Stabilization*±0.05dB / 1 hour;±0.1dB / 8 hours
Output Power > - 6dBm @ 1310nm/1490nm/1550nm/1625nm / > -10 dBm @ 850nm/1300nm
Modulation270Hz, 1KHz, 2KHz
Connector FC/PC (or customize)
Auto Power Off No operation in 10 minutes (can be canceled), Low battery energy
Battery ChargeYes
Power Supply AA * 2 batteries or AC/DC power supply adapter
* After 5 minutes warm-up, 20±3ºC, CW, FC connector, with optic isolator

GENERAL SPECIFICATIONS
Size(H*W*D)160mm * 75mm * 32mm
1
WeightAbout 180g
1
Storage Temperature-20 -- +60 ºC, < 90%RH
1
Operating Temperature-10 -- +50 ºC, < 90%RH

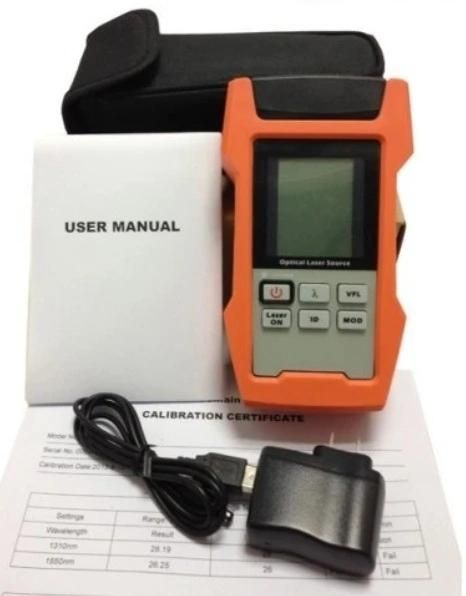

ACCESSORIES
StandardOptional
1
Carrying bag*1AC/DC adapter*1
1
User's manual*1
1
Calibration certification*1
